Low Power, <100 Lux Optimized, Analog Output Ambient Light Sensor

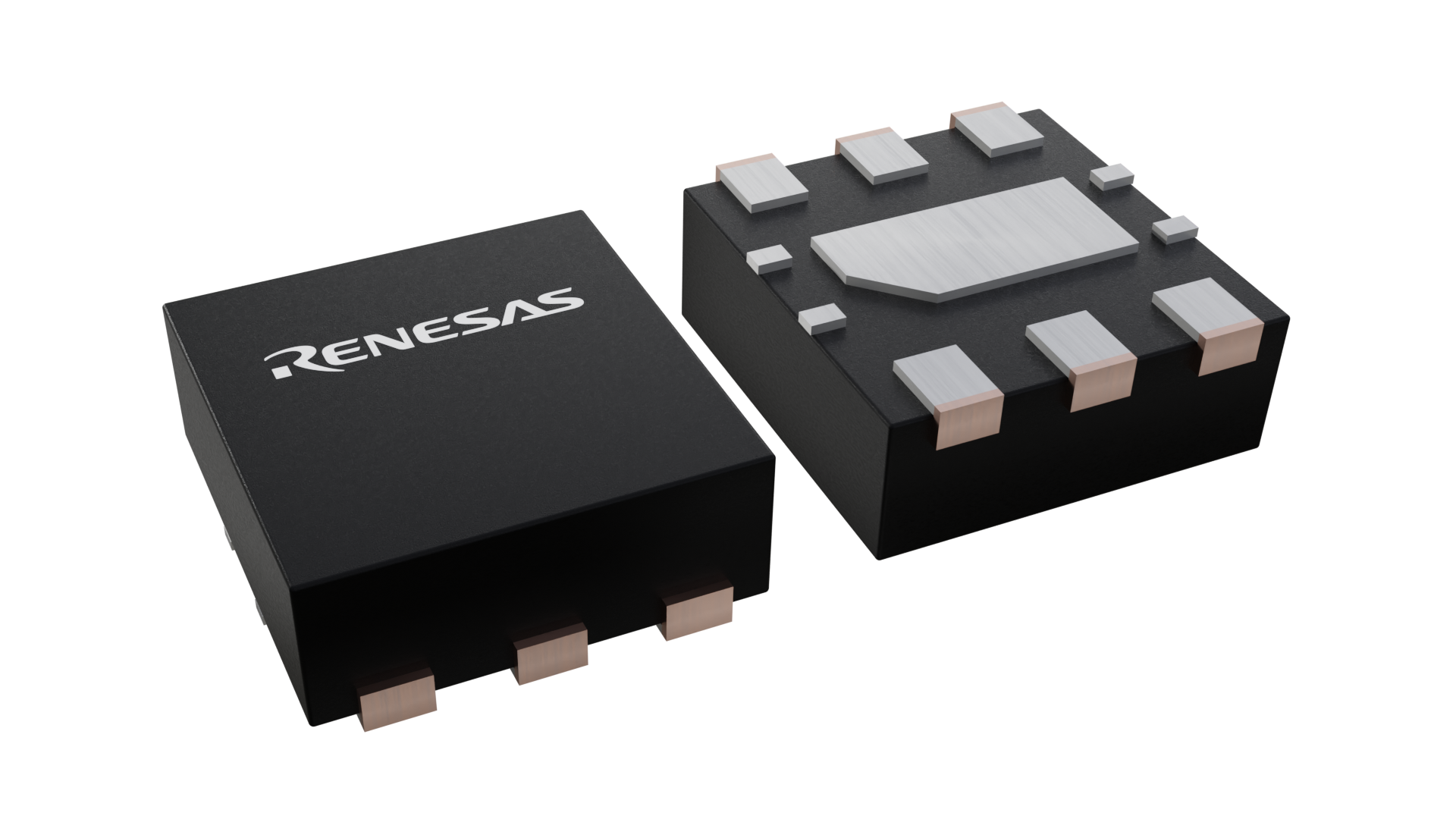

封装信息

Lead Count (#) 6
Pkg. Code LRZ
Pitch (mm) 0.65
Pkg. Type ODFN
Pkg. Dimensions (mm) 1.98 x 2.08 x 0.00

环境和出口类别

Moisture Sensitivity Level (MSL) 1
Pb (Lead) Free Yes
RoHS (ISL76671AROZ-T7) 下载
ECCN (US)
HTS (US)

产品属性

Lead Count (#) 6
Carrier Type Reel
Moisture Sensitivity Level (MSL) 1
Pb (Lead) Free Yes
Pb Free Category Nickel/Palladium/Gold-e4
Temp. Range -40 to +105°C
Country of Assembly Taiwan
Country of Wafer Fabrication Taiwan
Price (USD) 1.34894
Dark Voltage @ EV=0Lux (mV) 0.95
Delay Time, Falling Edge 250μs
Delay Time, Rising Edge 350μs
Enable No
Fall Time 155
Length (mm) 2
Lux Range (lux) 0 - 100
MOQ 3000
Output Voltage @ EV=100Lux (V) 1.85
Peak Spectral Sensitivity (nm) 550
Pitch (mm) 0.7
Pkg. Dimensions (mm) 2.0 x 2.1 x 0.00
Pkg. Type ODFN
Qualification Level Automotive
Rise Time (μs) 95000
Supply Current @ EV =100Lux (µA) 23
Thickness (mm) 0
VS (Max) (V) 3
VS (Min) (V) 1.8
Width (mm) 2.1

描述

The ISL76671 is a low cost, light-to-voltage silicon optical sensor combining a photodiode array, a non-linear current amplifier and a micro-power op amp on a single monolithic IC. Similar to the human eye, the photodiode array has peak sensitivity at 550nm and spans the wavelength range 400nm to 600nm, rejecting UV and IR light. The input luminance range is from 0.01 lux to 100 lux. The integrated non-linear current amplifier boosts and converts the photodiode signal into a square root output format, extending dynamic range while maintaining excellent sensitivity in dimly lit conditions. As such, the part is ideal for measuring incident daylight when mounted behind heavily smoked bezels used around displays or behind mirrors. The device consumes minimum power. A dark current compensation circuit minimizes the effect of temperature dependent leakage currents in the absence of light, improving the light sensitivity at low lux levels. The output gain has been optimized to require a relatively low value external bias resistor that falls within recommended automotive EMI limits. The built-in 1μA op amp gives the ISL76671 an output voltage driving advantage for heavier loads that can drive an ADC directly. The ISL76671 is housed in an ultra-compact 2mm x 2.1mm ODFN plastic surface mount package. Operation is rated from -40 °C to +105 °C, Grade 2 per AEC-Q100.
