Compact High Efficiency Low Power Buck-Boost Regulator

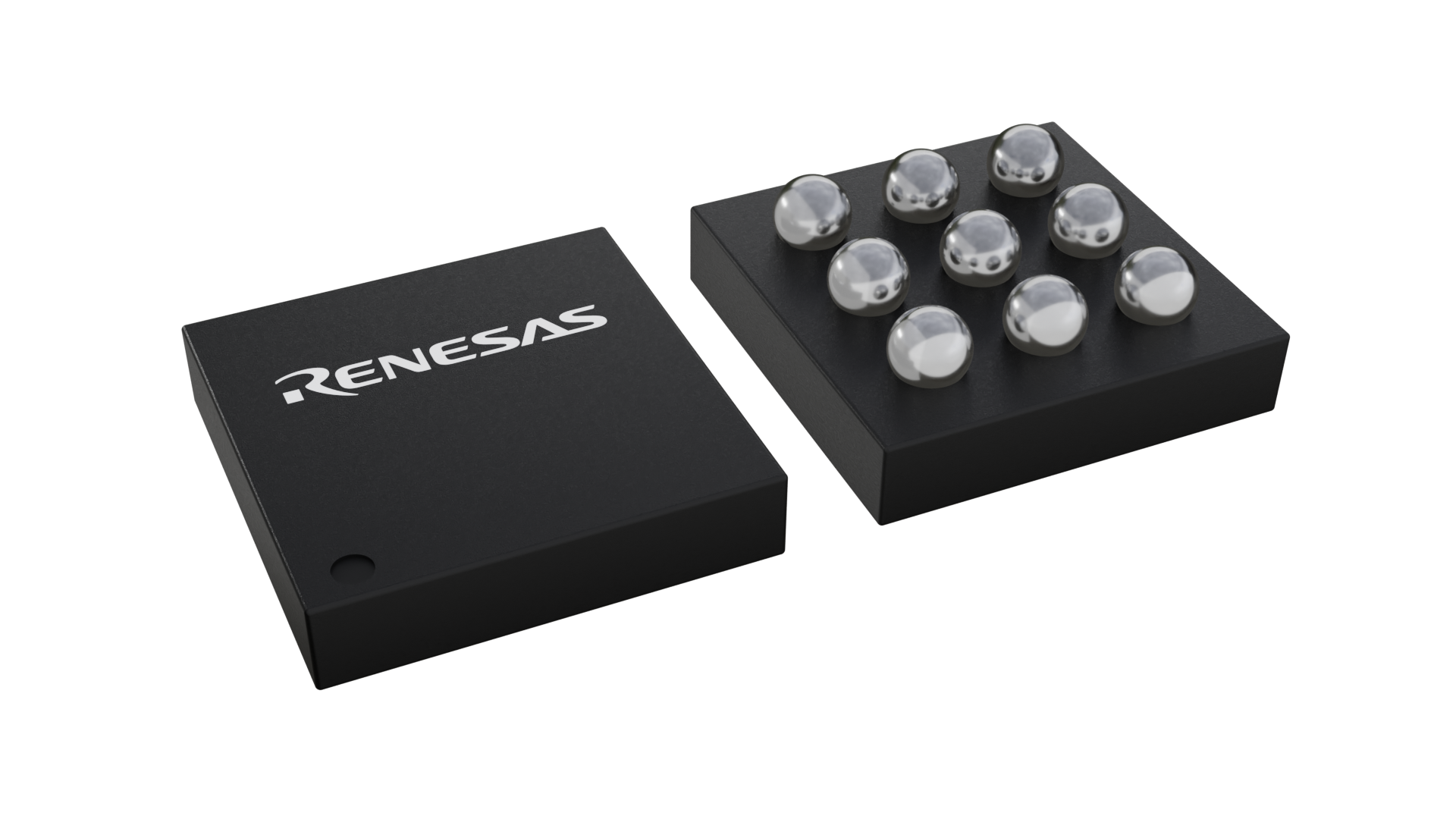

封装信息

Pitch (mm) 0.4
Lead Count (#) 9
Pkg. Dimensions (mm) 1.45 x 1.45 x 0.00
Pkg. Code WFX
Pkg. Type WLCSP-BP

环境和出口类别

Moisture Sensitivity Level (MSL) 1
Pb (Lead) Free Yes
ECCN (US) EAR99
HTS (US) 8542.39.0090

产品属性

Lead Count (#) 9
Carrier Type Reel
Moisture Sensitivity Level (MSL) 1
Pitch (mm) 0.4
Pkg. Dimensions (mm) 1.5 x 1.5 x 0.00
Pb (Lead) Free Yes
Pb Free Category Pb-Free Ball Terminal (SAC405)-e1
Temp. Range (°C) -40 to +85°C
Country of Assembly Malaysia
Country of Wafer Fabrication Taiwan
Control Type Hysteretic Mode
IQ [Rail 1] (µA) 41
Input Voltage (Max) (V) 5.5
Input Voltage (Max) [Rail 1] (V) 5.5 - 5.5
Input Voltage (Min) (V) 1.8
Input Voltage (Min) [Rail 1] (V) 1.8
Length (mm) 1.5
Longevity 0000 8月
MOQ 250
Output Current (Max) [Rail 1] (A) 0.8
Output Voltage (Max) (V) 5.2
Output Voltage (Max) [Rail 1] (V) 5.2
Output Voltage (Min) (V) 1
Output Voltage (Min) [Rail 1] (V) 1
Outputs (#) 1
POR Yes
Parametric Category Buck-boost Regulators (Integrated FETs)
Peak Efficiency (%) 98
Pkg. Type WLCSP-BP
Qualification Level Standard
Quiescent Current 41 µA
SYNCH Capability No
Thickness (mm) 0.00
Topology [Rail 1] Buck-Boost
Width (mm) 1.5

描述

The ISL9120 and ISL9120IR are highly integrated buck-boost switching regulators that accept input voltages either above or below the regulated output voltage. The regulator automatically transitions between buck and boost modes without significant output disturbance. They also have automatic bypass functionality. When the input voltage is generally within 1% to 2% of the output voltage, there will be a direct bypass connection between the VIN and VOUT pins.

In addition to the automatic bypass functionality, the ISL9120 and ISL9120IR also have forced bypass functionality with the use of the BYP pin. The device is capable of delivering up to 800mA of output current (VIN = 2.5V, VOUT = 3.3V) and provides excellent efficiency due to its adaptive current limit Pulse Frequency Modulation (PFM) control architecture.

The ISL9120 and ISL9120IR are designed for stand-alone applications and support a 3.3V fixed output voltage or variable output voltages with an external resistor divider. The forced bypass power saving mode can be chosen if voltage regulation is not required. The device consumes less than 3.5µA of current over the operating temperature range in forced bypass mode.

The ISL9120 and ISL9120IR require only a single inductor and very few external components. Power supply solution size is minimized by the ISL9120 1.41mm x 1.41mm WLCSP package and the ISL9120IR 3mm x 3mm 12 Ld TQFN package.
