封装信息
| CAD 模型: | View CAD Model |

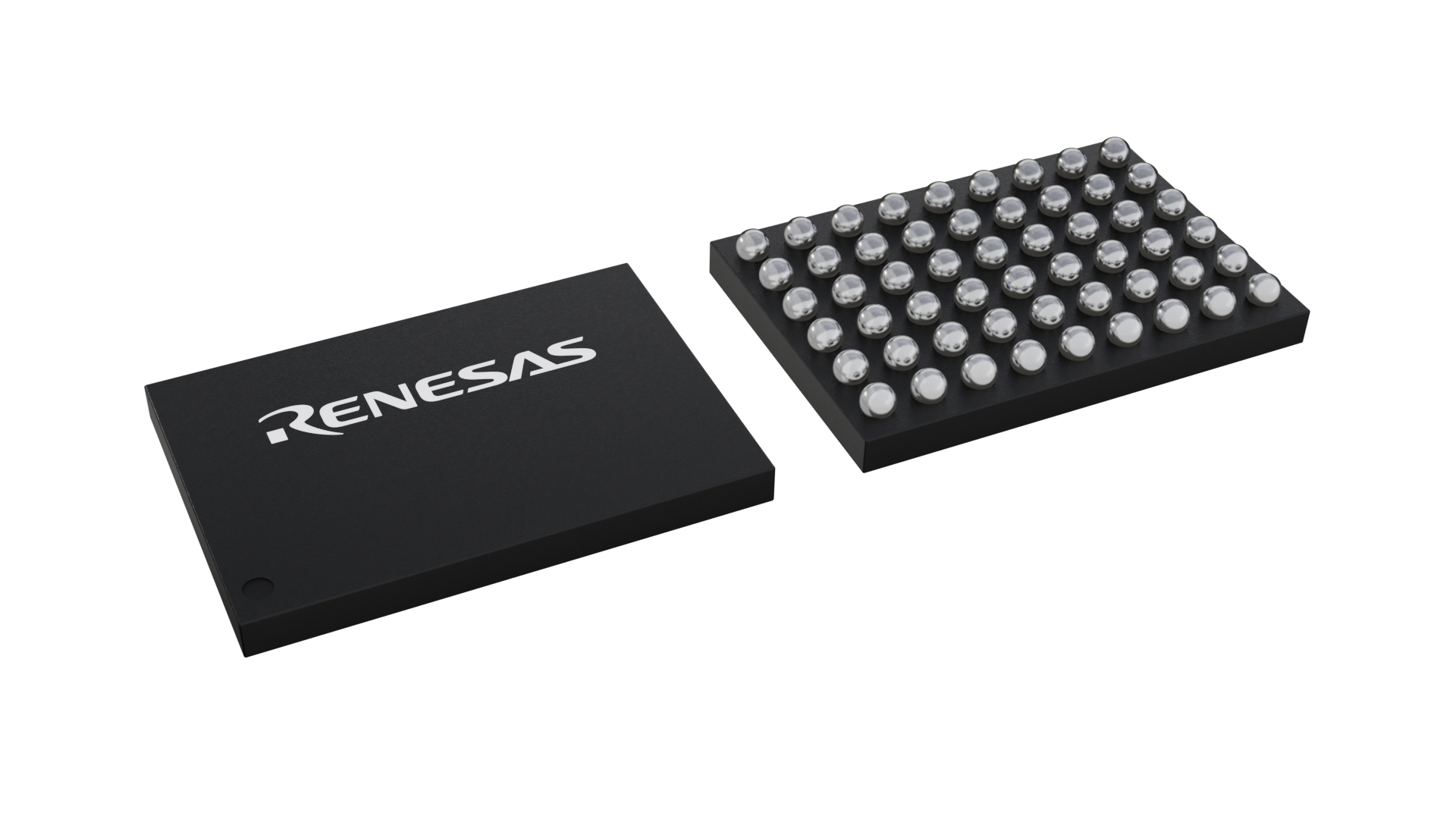

| Pkg. Type: | WLCSP-TKCURDL |
| Pkg. Code: | WNO |
| Lead Count (#): | 54 |
| Pkg. Dimensions (mm): | 3.67 x 2.55 x 0.50 |
| Pitch (mm): | 0.4 |
环境和出口类别
| Pb (Lead) Free | No |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| Moisture Sensitivity Level (MSL) |
产品属性
| Lead Count (#) | 54 |
| Carrier Type | Reel |
| Pb (Lead) Free | No |
| Temp. Range (°C) | -40 to +85°C |
| Battery Interface | No |
| Bus Voltage (Max) (V) | 5.5 |
| Comm. Interface | SPI, I2C |
| Control Type | Current Mode |
| Function | 2-ch PMIC |
| GPIOs (#) | 2 |
| Input Voltage (Max) (V) | 5.5 |
| Input Voltage (Max) [Rail 1] (V) | 5.5 - 5.5 |
| Input Voltage (Min) (V) | 2.5 |
| Input Voltage (Min) [Rail 1] (V) | 2.5 |
| Input Voltage Range (V) | 2.5 - 5.5 |
| Integrated Battery Charger | No |
| Integrated step-down DC/DC Converter Channels (#) | 2 |
| Length (mm) | 3.7 |
| MOQ | 3000 |
| Output Current (Max) [Rail 1] (A) | 20 |
| Output Current Max (A) | 20 |
| Output Voltage (Max) (V) | 2 |
| Output Voltage (Max) [Rail 1] (V) | 2 |
| Output Voltage (Min) (V) | 0.3 |
| Output Voltage (Min) [Rail 1] (V) | 0.3 |
| Output Voltage Range (V) | 0.3 - 2 |
| Outputs (#) | 2 |
| POR | Yes |
| Parametric Category | Multi-Channel Power Management ICs (PMICs) |
| Peak Efficiency (%) | 94 |
| Phases (Max) | 4 |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 3.7 x 2.6 x 0.50 |
| Pkg. Type | WLCSP-TKCURDL |
| Qualification Level | Standard |
| Quiescent Current | 75 µA |
| SYNCH Capability | No |
| Step-up DC/DC converter Channels (#) | 0 |
| Switching Frequency (KHz) | 4600 - 4600 |
| Switching Frequency (MHz) | 2 - 6 |
| Switching Frequency Range (Typical) (kHz) | 2000 - 2000 |
| Thickness (mm) | 0.5 |
| Topology [Rail 1] | Buck |
| Total step-down DC/DC converter channels (#) | 2 |
| Width (mm) | 2.6 |
有关 ISL91302B 的资源
描述
The ISL91302B is a highly efficient, dual or single output, synchronous multiphase buck switching regulator that can deliver up to 5A per phase continuous output current. The ISL91302B features four integrated power stages and has the capability to assign its power stages to either output. This flexibility allows seamless design-in for a wide range of applications where dual, triple, or quad phase outputs are needed, such as CPU and GPU core power mobile applications. The ISL91302B features integrated low ON-resistance MOSFETs, programmable PWM frequency, and automatic diode emulation, which maximizes efficiency while minimizing the external component count and solution size. Using Renesas’s proprietary R5 modulator technology, the ISL91302B delivers a highly robust power solution capable of ultra-fast transient response, excellent loop stability, and seamless DCM/CCM transitions without requiring external compensation. The ISL91302B is widely configurable through the factory OTP settings. Available features which can be used include: • SPI or I2C interface • External signal telemetry with an internal ADC • Dynamic Voltage Scaling (DVS) with selectable slew rate
