Lead Count (#) | 6 |
Pkg. Type | CLCC |
Pkg. Code | CB6 |
Pitch (mm) | 2.54 |
Pkg. Dimensions (mm) | 7.5 x 5.0 x 3.0 |
Pb (Lead) Free | Yes |
ECCN (US) | NLR |
HTS (US) | 8542390000 |
Moisture Sensitivity Level (MSL) | 1 |
Pkg. Type | CLCC |
Lead Count (#) | 6 |
Pb (Lead) Free | Yes |
Carrier Type | Tube |
Abs. Pull Range Min. (± PPM) | 120 |
Feedback Input | No |
Freq. Stability Total (± PPM) | 120 |
Length (mm) | 7.5 |
MOQ | 69 |
Moisture Sensitivity Level (MSL) | 1 |
Output Freq Range (MHz) | 699.518 - 699.518 |
Output Type | LVPECL |
Outputs (#) | 1 |
Package Area (mm²) | 37.5 |
Pb Free Category | e4 Au |
Phase Jitter Typ RMS (ps) | 0.155 |
Pitch (mm) | 2.54 |
Pkg. Dimensions (mm) | 7.5 x 5.0 x 3.0 |
Qty. per Carrier (#) | 64 |
Qty. per Reel (#) | 0 |
Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
Supply Voltage (V) | 3.3 - 3.3 |
Tape & Reel | No |
Temp. Range | -20 to +115°C |
Thickness (mm) | 3 |
VCO Gain Typ. (ppm/V) | 330 |
Width (mm) | 5 |

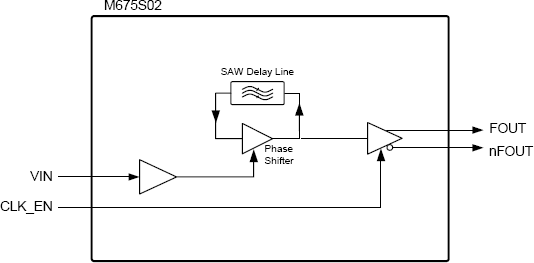

The M675S02 is a single frequency/single output SAW-based VCSO for low-jitter clock generation. The SAW (surface acoustic wave) delay line serves as a high-Q resonator and the low noise SiGe VCSO IC provides a low noise floor and low 1/f phase noise. The combination of the SAW delay line and the custom IC result in very low phase noise and jitter performance. The M675S02 is available in frequencies from 500 to 1000 MHz with a guaranteed minimum pull-range of ±120 ppm. Industry-standard Kvco (VCO Gain) provides full replacement compatibility for most designs. The M675S02 is well suited for phase-locked loop applications, clock and data recovery circuits and other timing applications in telecom and optical fiber networking systems.
