S5D3

有效
产品长期供货

120MHz Arm Cortex-M4 CPU

立即订购

特性

  • 120MHz Arm® Cortex®-M4 CPU
  • Optimal for applications that require a high-performance Cortex-M4F core, that does not require on-chip graphic acceleration or Ethernet connectivity
  • Available in a variety of packages
  • Capacitive Touch Sensing Unit (CTSU)
  • High precision data acquisition analog interfaces
  • Enhanced security
查找瑞萨电子 Synergy™ 平台 MCU的其他产品

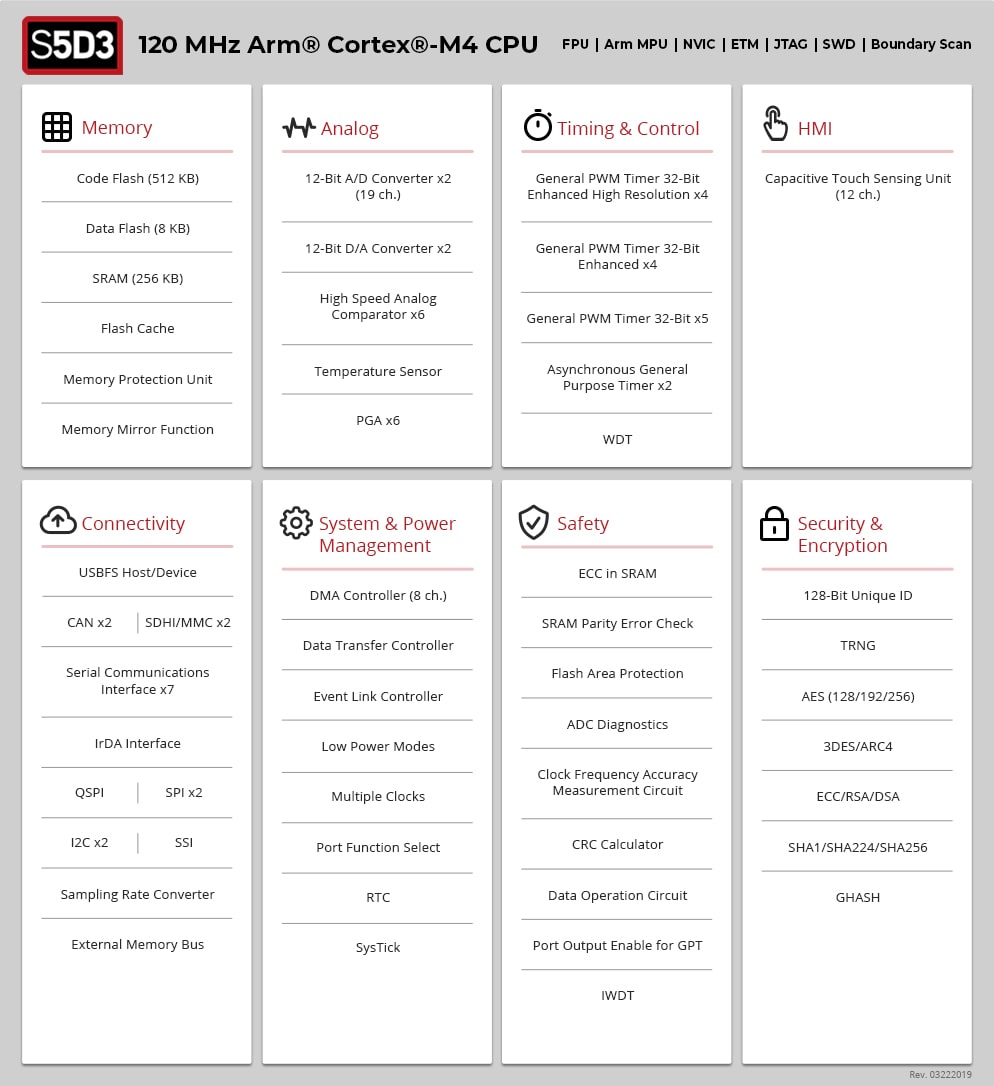

S5D3 Block Diagram
Design your next IoT solution using the Synergy S5D3 MCU
S5D3 Block Diagram
Design your next IoT solution using the Synergy S5D3 MCU

描述

S5D3 为 S5 MCU 群组增加了产品层次, 适用于需要高性能 Cortex®-M4F 内核，但是不需要片上图形加速或以太网连接的应用，比同系列其他产品性价比更高。S5D3 采用高效的 40nm 工艺，提供了增强的安全性和广泛的连接性, 并得到 Synergy 软件包 (SSP) 的全面支持。

Synergy Software Package (SSP)

最佳化且紧密集成的适用软件套，具备可扩展最终产品复杂性并简化复杂系统级服务的商用RTOS。

下载 SSP

产品参数

属性值
Program Memory (KB)512
RAM (KB)256
Carrier TypeTray
Supply Voltage (V)2.7 - 3.6
I/O Ports40, 76
Temp. Range (°C)-40 to +85, -40 to +105
Operating Freq (Max) (MHz)120
Sub-clock (32.768 kHz)No
On-chip OscillatorNo
Ethernet (ch)0
EtherCat (ch) (#)0
SCI or UART (ch)0, 7
CAN (ch)2
CAN-FD (ch)0
PWM Output (pin#)0, 3, 4
32-Bit Timer (ch)0
16-Bit Timer (ch) (#)0
8-Bit Timer (ch)0
Standby operable timerNo
16-Bit A/D Converter (ch)0
14-Bit A/D Converter (ch)0
12-Bit A/D Converter (ch)0
10-Bit A/D Converter (ch)0
12-Bit D/A Converter (ch)2
8-Bit D/A Converter (ch)0
Capacitive Touch Sensing Unit (ch)0
Graphics LCD ControllerNo
Security & Encryption128-bit Unique ID, TRNG, AES128, AES192, AES256, 3DES, ARC4, RSA, DSA, ECC, SHA-1, SHA-224, SHA-256, MD5, GHASH

封装选项

Pkg. TypePkg. Dimensions (mm)Lead Count (#)Pitch (mm)
HWQFN8 x 8 x 0.8640.4
LFQFP10 x 10 x 1.764—
LFQFP14 x 14 x 1.71000.5
TFLGA7 x 7 x 1.051000.65

应用

  • 物联网智能边缘传感器

当前筛选条件

加载中
加载中

The S5D3 adds a new tier to the S5 MCU group for applications that require a high-performance Cortex M4F core at a very attractive price point, that does not require on-chip graphic acceleration or ethernet connectivity. The S5D3 is built on a highly efficient 40nm process, and fully supported by the Synergy Software Package (SSP). From a solution approach S5D3 offers a nice suitable specification which fits different IoT application requirements like Security, large embedded RAM and power consumption.
