RL78/F24 (R7F124FPJ) 目标板
作为可与E2、E2 Lite 片上调试仿真器连接使用的 CPU 板，此款产品可以对目标 MCU 实现简单易行的评测。
概览
简介
RL78/F24 新一代超低功耗汽车微控制器，非常适用于实现未来高可靠性的智能执行器和传感器，是低端车身 ECU 的理想之选。 作为对现有 RL78/F1x MCU 的创新扩展，RL78/F24 可满足未来市场的多种需求。 RL78/F24 具有更高的 CPU 性能、耐高温能力和更强的外设功能集，非常适合各种应用。
RL78/F2x 系列产品按 ISO 26262 标准设计而成，支持高达 ASIL B 的功能安全 (FuSa)。 可支持高达 EVITA-Light 或更高的安全标准。 AES 加密模块可处理高达 256 位的密钥长度，并支持安全启动和身份验证功能。 为了进一步提高 BLDC (FOC) 电机控制和 DC/DC 控制系统的计算性能，RL78/F2x 配备了独特的应用加速器 IP，以减轻复杂的三角函数和其它计算处理所带来的负荷。
为了响应 E/E 汽车架构的新趋势，RL78/F24 配备了 CAN FD 接口。 RL78/F2x MCU 的硬件和软件与 RL78/F1x 完全兼容，可实现软件重用。

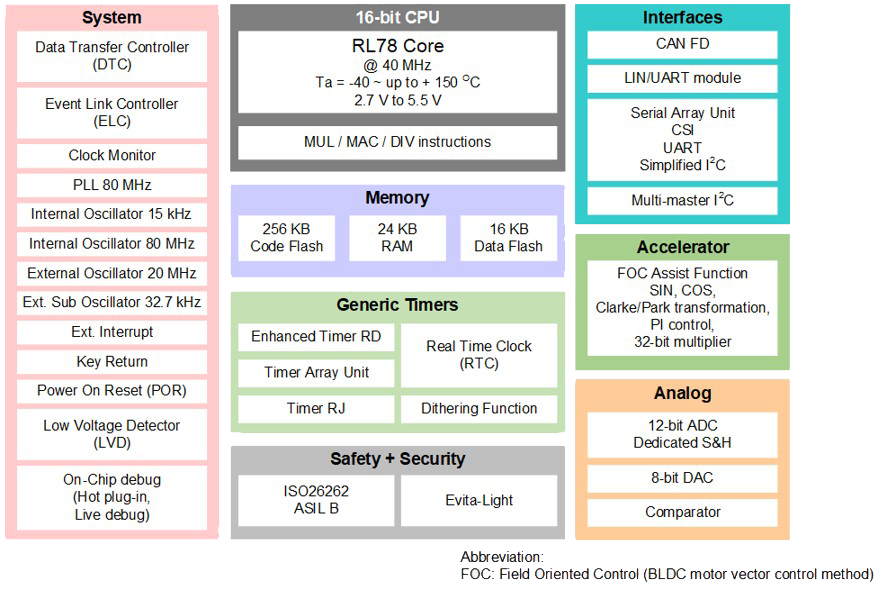

特性
- 主要特性
- RL78 内核，最大时钟频率 40MHz
- 256KB 闪存
- 24KB RAM
- 12 位模数转换器
- 8 位数模转换器
- 具有 4 输入端的比较器
- 电机控制：DC 和 BLDC - 磁场定向控制 (FOC)
- 应用程序加速器单元
- 经优化的 DC/DC 转换器支持
- 高温支持：高达 Ta = 150 °C
- 超低功耗
- 采用最先进水平的接口
- CAN FD、LIN、UART、SPI、I2C、SENT
- 20 x PWM 输出
- 支持功能安全和信息安全
- 支持 EVITA-Light 的安全模块
- ISO 26262 ASIL B
- 具有完整的生态系统，可支持与工具、硬件和软件领域相关的最新标准
产品对比
应用
- 智能执行器
- 传感器 ECU
- 低端车身 ECU
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| Code Flash Libraries (Flash Self Programming Libraries) Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products
|
Self Programming Library (Flash Library) | 瑞萨电子 |
| Data Flash Libraries Libraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products
|
Self Programming Library (Flash Library) | 瑞萨电子 |
| IAR Embedded Workbench for Renesas RL78 IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
|
8 items
|
||
样例程序
开发板与套件
RL78/F24 的 12V 电机控制评测系统
此款套件用于 RL78/F24（48 引脚）产品的电机控制测估。
此款套件包括一个永磁同步电机 (TG-55N-KA 12V；Tsukasa Electric Co., Ltd)，允许用户在购买后轻松开始评测电机。
RL78/F24 入门套件
RL78/F24 入门套件包括 RL78/F24 目标板“RTK7F124FPC01000BJ”和 E2 Lite（瑞萨电子旗下一款带有编程功能的片上调试仿真器）。
使用本登陆页面提供的软件，即可直接开始评估所有微控制器操作。
RL78/F24 安全瑞萨电子解决方案入门套件
该款套件用于评估 RL78/F24 的安全性。
该款套件具有加密解密、CMAC生成/验证、随机数生成、安全启动、密钥注册等一系列安全功能，还可以使用图形用户界面工具即时执行复杂、高难度的计算。
模型

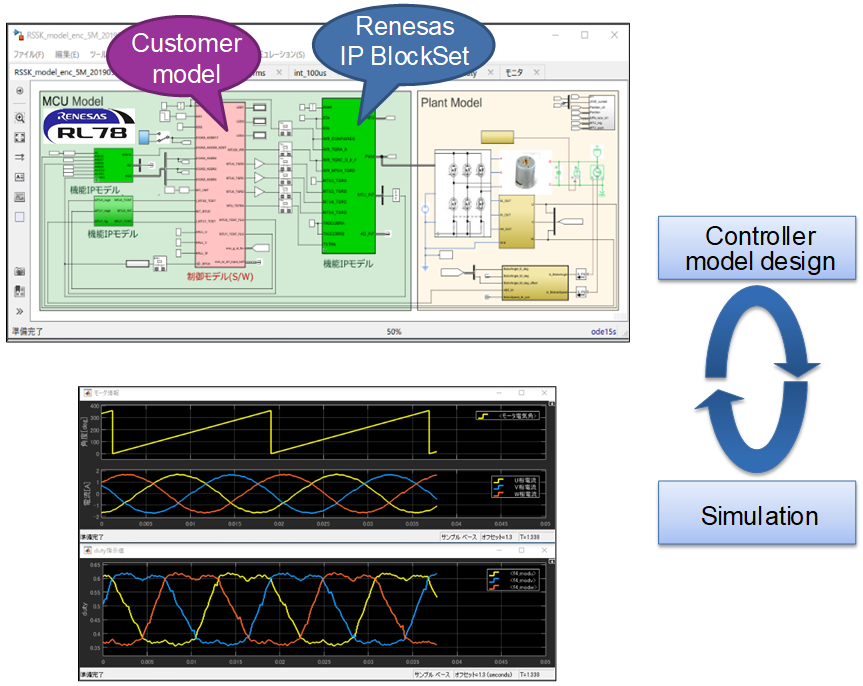

RL78/F24 Motor Control IP BlockSet
We are developing a Simulink model of the peripheral functions mounted in the target device.
Target peripherals:
- Timer RDe (TRD)
- 12-bit A/D Converter (AD)
- Application Accelerator Unit (AAU)
Provide simulation blocks that reproduce hardware for motor/inverter control with high accuracy.
By combining this lockset and user model, it is possible to examine and check the operation of an actual system on the model.
For inquiries about this item, please contact the distributors or dealers.
Related documents:
- RL78/F24 Motor Control IP BlockSet (PDF | English, 日本語)
MATLAB/Simulink
图像
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Program Memory (KB) |
RAM (KB) |
Lead Count (#) |
Temp. Range |
Security Level |
Bit Size |
CPU |
Data Flash (KB) |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD or PVD |
DMA |
I/O Ports |
Timer |
ADC |
DAC |
CAN (ch) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
105°C Max. Case Temp. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||
| N/A | 256 | 24 | 32 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 25 | 16-bit x 19-ch | 12-bit x 10-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 32 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 25 | 16-bit x 19-ch | 12-bit x 10-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 32 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 25 | 16-bit x 19-ch | 12-bit x 10-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 32 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 25 | 16-bit x 19-ch | 12-bit x 10-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 48 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 48 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 48 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 48 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 48 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 48 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 38 | 16-bit x 19-ch | 12-bit x 19-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 64 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 64 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 64 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | 3.814 | |||
| N/A | 256 | 24 | 64 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 64 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | 3.485 | |||
| N/A | 256 | 24 | 64 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 64 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 52 | 16-bit x 19-ch | 12-bit x 24-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 80 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | 3.383 | 获取样片, | ||
| N/A | 256 | 24 | 80 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 80 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 80 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 80 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 80 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 68 | 16-bit x 19-ch | 12-bit x 25-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 100 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | 获取样片, | |||
| N/A | 256 | 24 | 100 | -40 to +105°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 100 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | 3.786 | |||
| N/A | 256 | 24 | 100 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | 3.8 | 获取样片, | ||
| N/A | 256 | 24 | 100 | -40 to +125°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | 3.756 | |||
| N/A | 256 | 24 | 100 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 | ||||
| N/A | 256 | 24 | 100 | -40 to +150°C | Evita-Light | 16 | RL78 | 16 | 2.7 - 5.5 | 40 | 是 | 是 | Yes | 86 | 16-bit x 19-ch | 12-bit x 31-ch | 8-bit x 1-ch | 1 | 3 |
