概述
描述

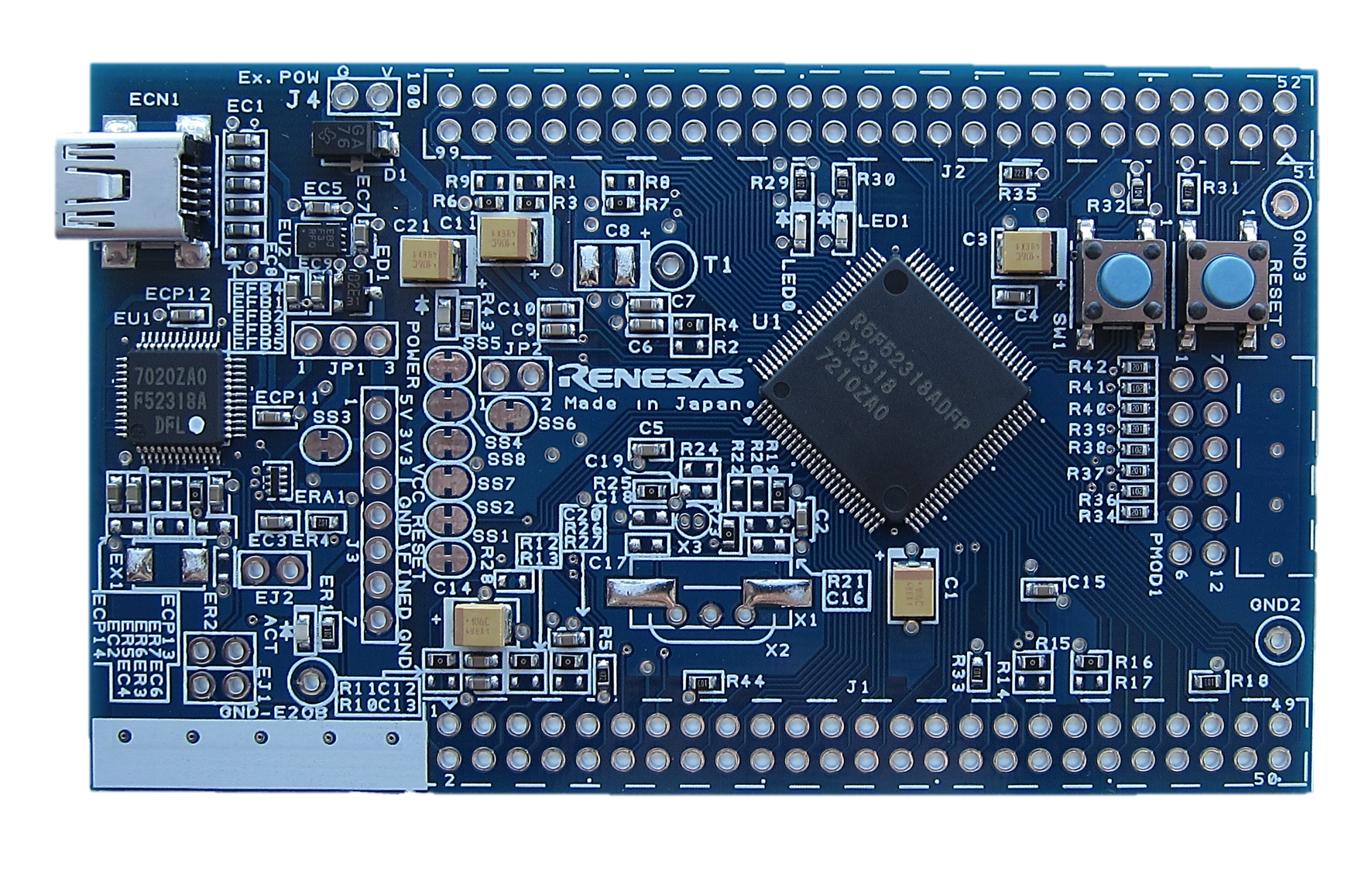

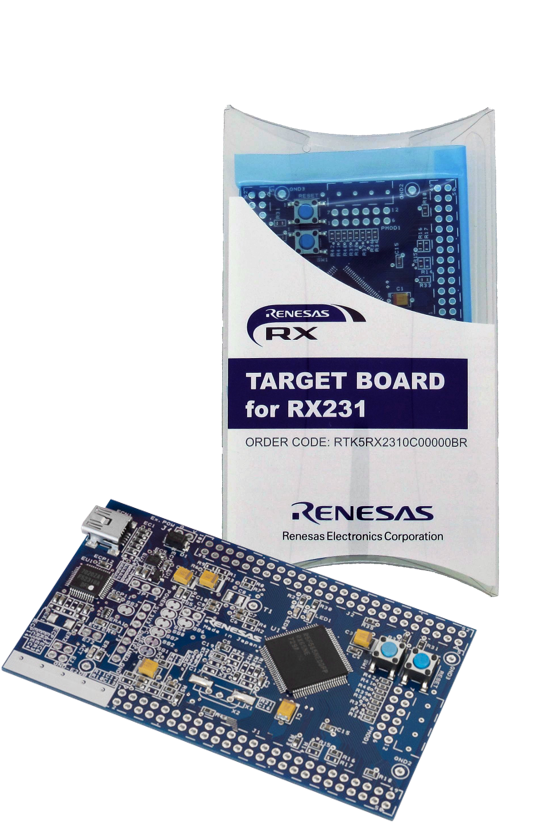

The Target Board for RX231 provides an entry point to evaluation, prototyping and developing for the RX231 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides through-holes for pin headers that allow access to all MCU signal pins, allowing an easy prototyping with a breadboard.
特性
- On-board RX231 MCU
- Excellent choice for basic evaluation and development of selected MCU
- Full access to all MCU pins by provided header through-hole connections
- Included on-chip debugging can be used for own development
- USB connector to power and debug the MCU (no USB cable included)
- Development environment like e² studio can be downloaded for free
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 | PDF 813 KB 日本語 | |
| 应用说明 |
PDF
2.77 MB
日本語
AI 生成的摘要:
QE for Display [RX,RA] enables graphical interface development for embedded systems using Renesas RX microcontrollers with serially connected LCDs, supporting emWin and Aeropoint GUI middleware. It integrates with e2 studio, Smart Configurator, and Firmware Integration Technology (FIT) modules to simplify GUI creation, display control, and system development flow. The tool supports various RX family starter kits and target boards, facilitating efficient GUI design with AppWizard and PowerPoint-based Aeropoint GUI. It covers from initial display setup to project building, debugging, and execution, enabling high-performance, memory-efficient GUI solutions on microcontrollers without graphic LCD controllers.
|
|
| 其他 | PDF 89 KB | |
| PCB 设计文件 | Target Board for RX231 Design Data
|
|
| 其他 | Target Board for RX231 BOM LIST Rev.1.10
|
|
| 原理图 | Target Board for RX231 Schematic Rev.1.00
|
|
| 应用说明 |
PDF
334 KB
日本語
AI 生成的摘要:
The document details the RX231 LED blink control program, explaining the power-on reset and main function operation flows, including user switch and timer interrupt handling. It presents the RX231 internal block diagram highlighting used modules for LED control. The RX231 memory map is described, showing a 4-Gbyte address space with program and data areas, different operating modes, and ROM/RAM capacities.
|
|
| 其他 | PDF 451 KB | |
8 项目
|
||
设计和开发
产品选项
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) |
|---|---|---|---|---|---|---|---|
| RTK5RX2310C00000BR | Active | In Stock | 1u | $25.88 | N/A | No | 3A991.a.2 | 8471.50.0150 |
