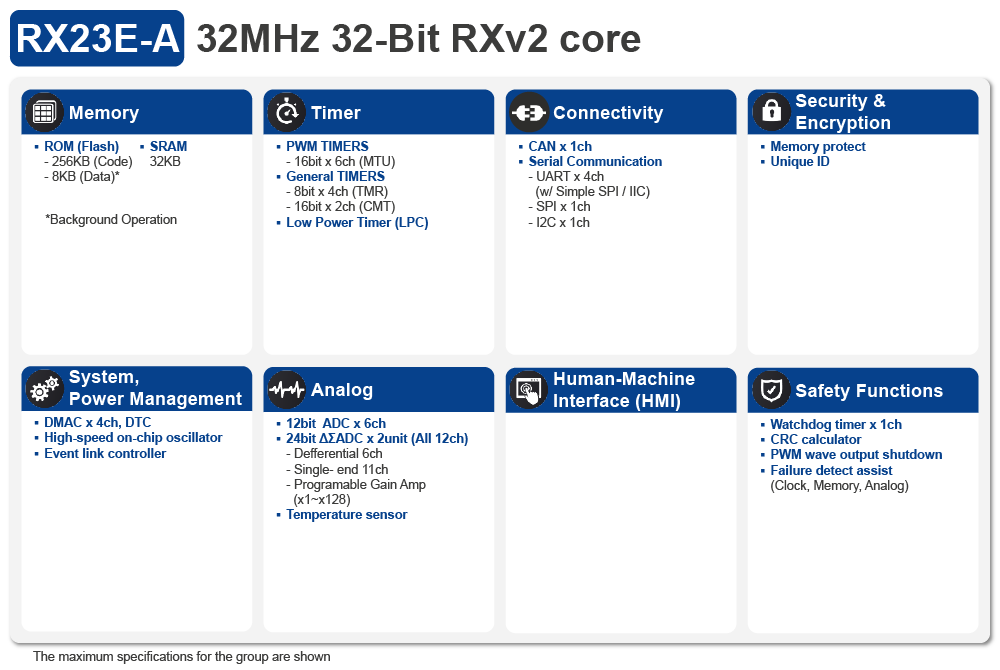

RX23E-A 系列微控制器配备模拟前端，无需校准即可测量温度、压力、流量和重量，精度优于 0.1%，是高精度传感、测试和测量设备的理想之选。CPU 配备 RXv2 内核，在 DSP/FPU 运行中表现卓越，可以单芯片实现高精度测量、控制和通信。
| Software title
|
Software type
|
公司
|
|---|---|---|
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| QE for Current Consumption: A Dedicated Tool for Current Measurement Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I2C Serial EEPROM Driver Device Drivers for I2C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
|
25 items
|
||
该套件包括一块已安装有测量传感电路的RX23E-A评估板（RSSK RX23E-A）。 通过可从网站下载的软件一起使用，用户可以立即开始评估模拟功能。 该套件可帮助用户缩短开发周期，加快产品上市时间。
RX 单片机产品家族的RX23E-A产品群具有集成的高精度模拟前端。...
该参考设计使用高精度 AFE 安装的 MCU RX23E-A 的热电 Peltier 控制器。 它能够使用单个 RX23E-A 芯片实现执行温度控制所需的测量、计算和控制，
热电帕尔帖控制器（TEC）是一种用于加热和冷却的温度控制器，它利用了一种称为帕尔帖效应的现象。 TEC 广泛应用于消费和工业温度应用，并具有以下特性...
此数字称重传感器参考设计使用了带高精度 AFE 的 RX23E-A MCU。 使用 RX23E-A 就无需再使用外部专用 AFE ，因此可以最大程度缩小板的尺寸。
在数字称重传感器中，安装 ADC 和 MCU 的板将与称重传感器组合成一个单元，因此要求板的尺寸要小。 RX23E-A 允许将 MCU 和 AFE...
该单芯片解决方案采用内置高精度模拟前端 (AFE) 的 32 位 RX23E-A 微控制器来测量温度、信号采集和处理，并通过 ZIOL2401 IO-Link PHY 芯片控制 IO-Link 通信。
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | ||||||||||||||||||||||||||||||
| Tray | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 6.987 | ||||
| Tray | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 9.054 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 8.541 | 获取样片, | |||
| Tray | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 9.127 | 获取样片, | |||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 5.916 | ||||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 5.475 | ||||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 6.308 | ||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 6.234 | ||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 获取样片, | ||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 5.8 | 获取样片, | |||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 5.91 | ||||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 8.226 | ||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 8.546 | ||||
| Tray | 探讨中 | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 9.132 | 获取样片, | |||
| Tray | 探讨中 | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 8.773 | ||||
| Tray (Full Carton) | 2038 12月 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tray (Full Carton) | 2038 12月 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 9.45 | ||||
| Tray (Full Carton) | 2038 12月 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 获取样片, | ||||
| Tray (Full Carton) | 2038 12月 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 9.82 | 获取样片, | |||
| Tray (Full Carton) | 探讨中 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 6.577 | ||||
| Tray (Full Carton) | 探讨中 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 6.507 | ||||
| Tray (Full Carton) | 探讨中 | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 6.942 | 获取样片, | |||
| Tray (Full Carton) | 探讨中 | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | 5.113 | ||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 9.956 | 获取样片, | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 获取样片, | ||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | 获取样片, | ||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 128 | 8 | 16 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 32 | 21 | No | 4 | 5 | 5 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 6-ch | 12 | No | 否 | 1 | 是 | 7 x 7 x 1.7 | 3 | |||||
| Tape & Reel | N/A | RXv2 | 256 | 8 | 32 | 40 | HWQFN | 1.8 - 5.5 | 32 | 17 | No | 3 | 4 | 4 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 4-ch | 8 | No | 否 | 1 | 是 | 6 x 6 x 0.8 | 3 |
