概览
描述

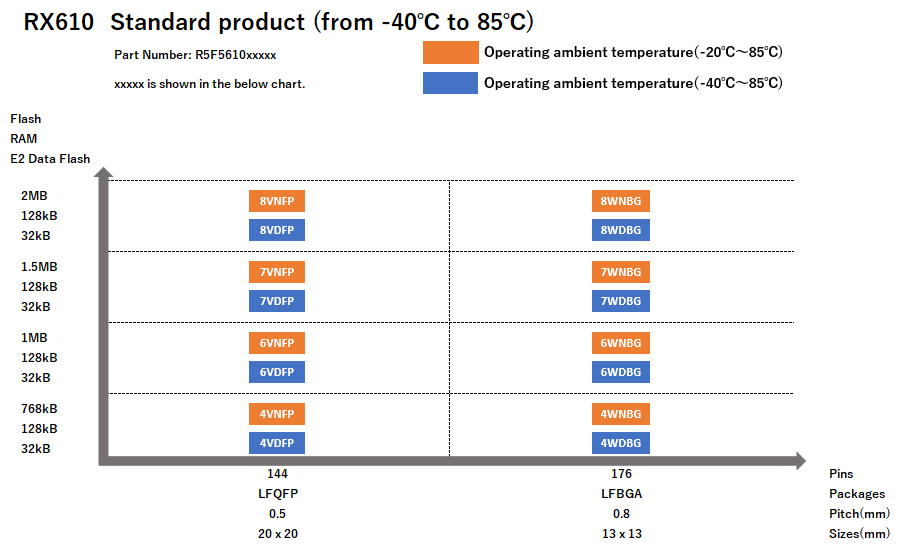

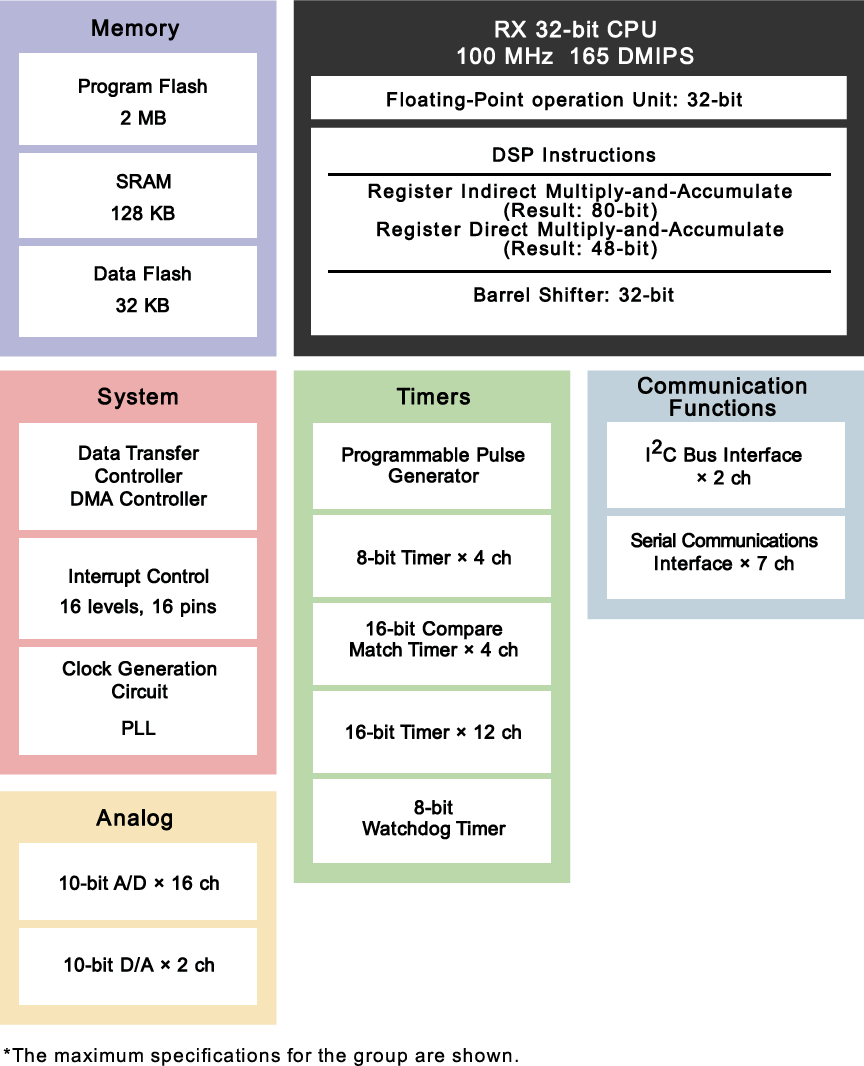

RX610 Group microcontrollers have 100 MHz high-speed operation and large-capacity on-chip memory. The products are equipped with basic functions such as timers and communications functions, as well as four independent units of A/D converter, enabling a fastest conversion time of 0.8 μs. In addition to a maximum 2 MB flash memory and 128 KB RAM, 32 KB of flash memory for data storage are built in. The RX610 enables a system to be configured without peripheral memory and other devices, greatly reducing the total cost of the system.
产品对比
应用
- Industrial
- Office Automation
- Consumer
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| FAT File System FAT file system, Original file system
|
File System | 瑞萨电子 |
| FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family
|
File System | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| Renesas Peripheral Driver Library Unified API library for controlling peripheral I/O modules on Renesas MCUs. For OS-less development. Target devices : RX220, RX610, RX62G, RX62N, RX621, RX62T, RX630, RX63T etc. (This software is bundled with the Renesas Starter Kits and Peripheral Driver Generator for the above devices.)
|
Software Package | 瑞萨电子 |
| Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family
|
Sound / Voice | 瑞萨电子 |
| Peripheral Driver Generator A tool for automatically generating drivers for the built-in peripheral I/Os of a microcomputer (for RX210, RX220, RX63x, and RX62x)
|
Code Generator | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| E100 A full-spec emulator available for full bus trace. This can be used for various devices by MCU units or connection parts exchange. [Compatible software(GUI): High-performance Embedded Workshop] [Target devices: RX610, R8C/5x, R8C/3x, M16C/64, RS-4 and others.]
|
Emulator | 瑞萨电子 |
| R0E556100MCU00 MCU unit for the RX610 Group [for E100]. An MCU-dependent converter board is required.
|
Emulator | 瑞萨电子 |
| High-performance Embedded Workshop Renesas integrated development environment (IDE) (for SuperH, RX, R8C, M32R, M16C, H8SX, H8S, H8, and 740 families).
|
IDE and Coding Tool | 瑞萨电子 |
| Flash Development Toolkit (Programming GUI) Flash memory programming software. [Support MCU/MPU and devices: SuperH RISC engine, RX, R8C, M16C, H8SX, H8S, H8, 740]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Simulator Debugger for RX Family [for High-performance Embedded Workshop] Simulator debugger for RX family [Support IDE : High-performance Embedded Workshop] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
|
22 items
|
||
样例程序
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
