概览

描述

RX660系列是RX600和RX700高端通用微控制器之中首款支持5V电源的产品。支持5V电源可降低系统成本,抗噪性能出色,无需外部电感来消除噪声。RXv3内核在120MHz下运行,闪存访问零等待,使得计算过程稳定,具备出色的实时性能。通用IO引脚的有效端口数量比以往兼容5V电源的RX210产品增加了约10%,能够增加相同封装中可连接的传感器数量,从而有助于简化系统升级。外设功能中,RX660在RX系列产品中首次搭载CAN FD,可构建工业网络等下一代网络。此外,在高端产品中首次将HOCO的振荡精度稳定为1.0%,可省去外部振荡器,有助于降低系统成本。该系列采用48至144引脚的LFQFP封装,最大配备1MB闪存和128KB SRAM存储器,可通过单个芯片满足客户广泛的平台开发需求,能够轻松提升家用电器和工业设备的性能以及扩展功能。

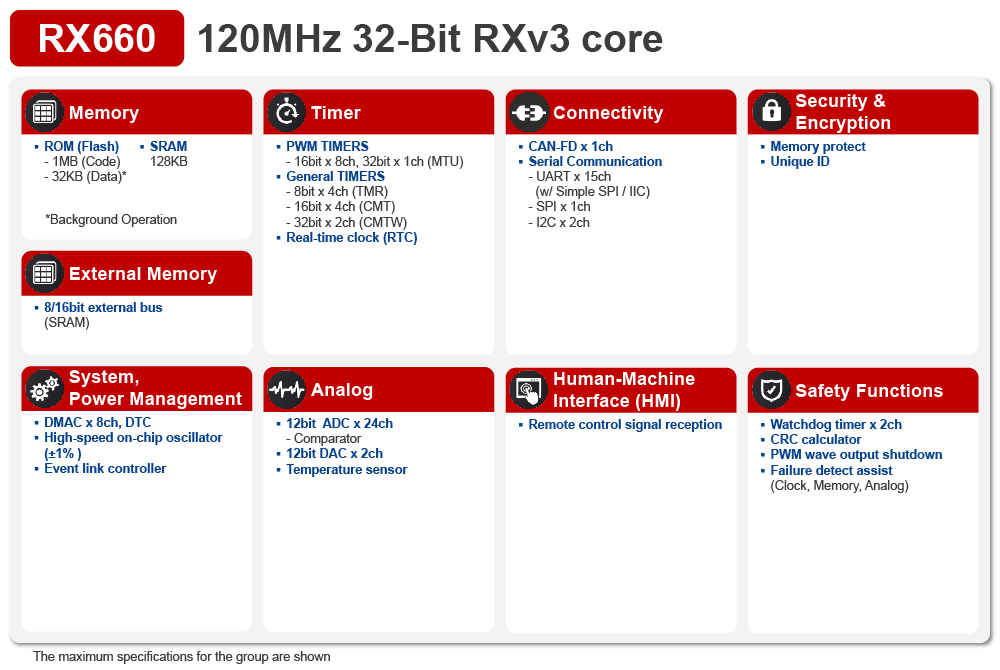

特性

  • 宽工作电压范围2.7V-5.5V
  • 搭载120MHz运行CPU RXv3内核(721CoreMark)
  • 单精度FPU、批量寄存器保存功能实现高速中断响应、三角函数运算单元 (TFU)
  • 最大1MB闪存(120MHz读取速度),128KB SRAM
  • 32KB数据闪存,可实现类似EEPROM的数据存储功能
  • 引脚布局兼容现有RX产品,外设功能兼容
  • 精度为+/-1.0%的高速片上振荡器
  • CAN FD (基于ISO 11898-1: 2015)
  • 红外遥控接收电路
  • SCI支持各种通信功能(最大13通道)
  • SCI搭载16字节收发FIFO(最大2通道)
  • I2C总线接口(RIICa)(2通道)
  • RSPI(1通道)最大传输速率30Mbps
  • 16位通用PWM定时器(支持互补PWM输出)
  • 12位A/D转换器(1个单元:24通道)、12位D/A转换器 (2通道)、比较器 (4通道)
  • 实时时钟

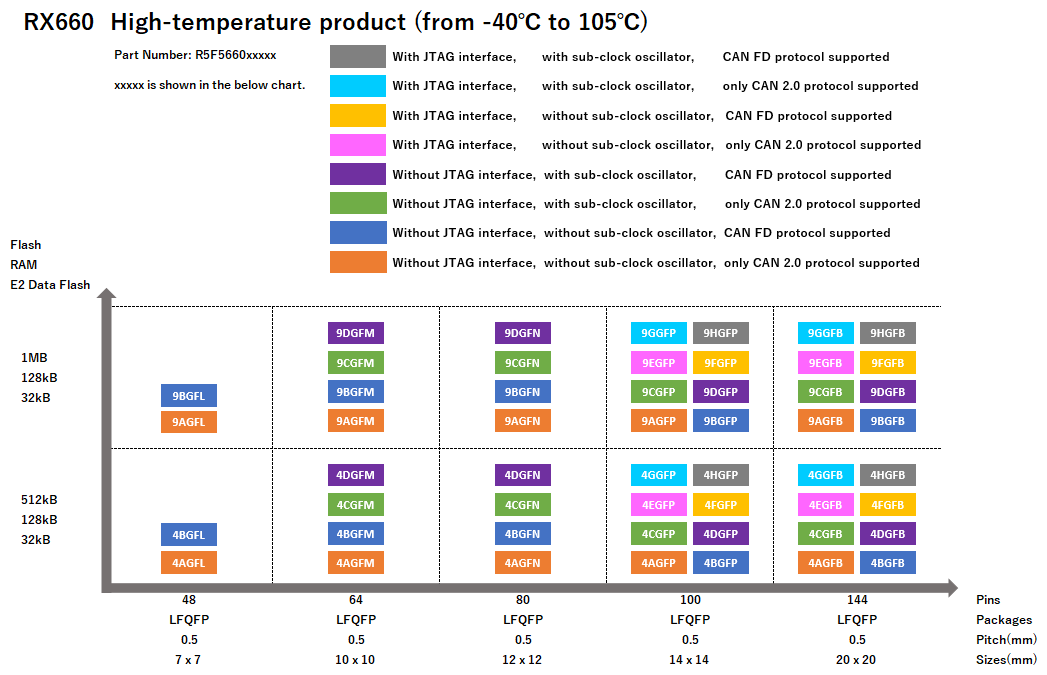

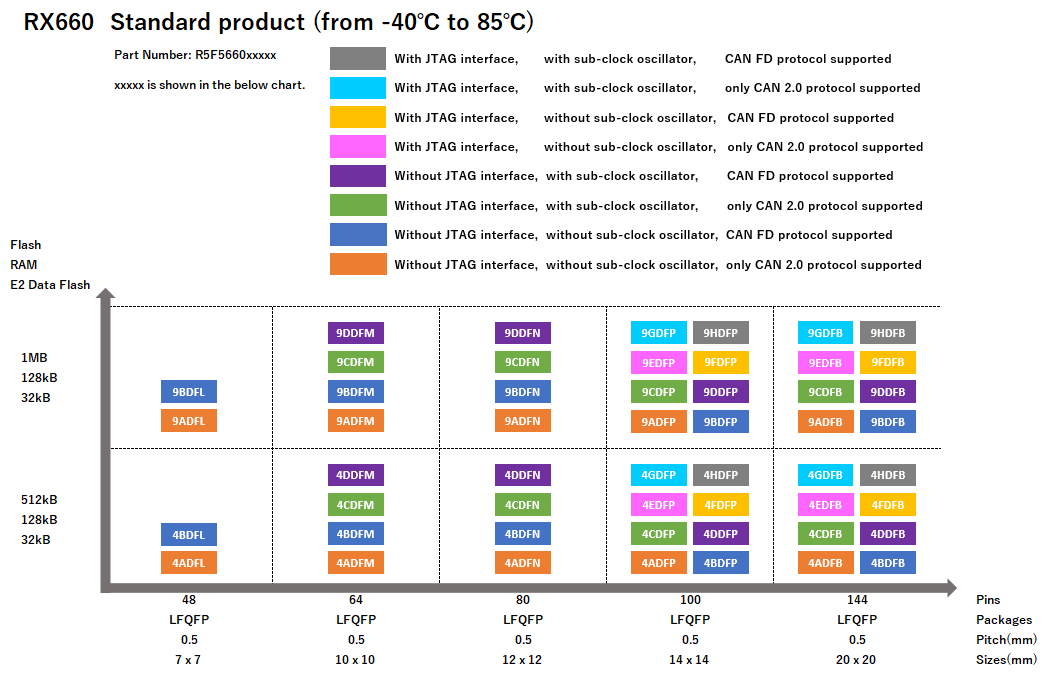

  • 封装阵容涵盖48-144引脚
  • 最多134个通用I/O端口

产品对比

应用

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
RI600V4 Real-time OS for RX Family
μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
ITRON OS 瑞萨电子
RI600PX Real-time OS for RX Family
μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
ITRON OS 瑞萨电子
C/C++ Compiler Package for RX Family [CC-RX]
C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
Compiler/Assembler 瑞萨电子
e² studio Partner OS Aware Debugging
Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
Plug-in, OS Aware Debugging, Etc. 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E20 emulator [R0E000200KCT00]
On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
Emulator 瑞萨电子
CS+
瑞萨电子集成开发环境(IDE)[支持 MCU/MPU:RH850、V850、RX、RL78、78K0R、78K0] (注意:CS+ 通常不会向美国和欧洲客户推广。 (注意:要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器,请为每个 MCU 系列安装智能配置器,从“设计和支持”>“开发工具”>“智能配置器”下载)
IDE and Coding Tool 瑞萨电子
CS+ Partner OS Aware Debugging Plug-in
Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
Plug-in, OS Aware Debugging, Etc. 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
Programmer (Unit/SW) 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件【支持 MCU/MPU 和设备:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
Programmer (Unit/SW) 瑞萨电子
External Flash Definition Editor
Utility for downloading data to external flash memory (for emulators)
Other Emulators and Options 瑞萨电子
Simulator for CS+ of RX Family
Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
Simulator 瑞萨电子
Crypto Library
Robust encode library to ensure security for all types of system developments
Security / Crypto 瑞萨电子
FAT File System [M3S-TFAT-Tiny] for the RX Family
FAT file system for RX Family
File System 瑞萨电子
Sound Playback/Compression System [M3S-S2-Tiny] for RX Family
Sound playback system for RX Family
Sound / Voice 瑞萨电子
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver
Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
Serial Memory 瑞萨电子
DSP Library for RX Family
Software library that implements numeric operation function used in DSP with general purpose MCU
DSP / FFT 瑞萨电子
QE for Display: Development Assistance Tool for Display Applications
This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
Solution Toolkit 瑞萨电子
RX Smart Configurator
RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
Solution Toolkit 瑞萨电子
e² studio - Information for the RX Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3(CYRCNEZCUBE03)是具有Flash存储器编程功能的片上调试仿真器,可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
Emulator 瑞萨电子
Simulator for e² studio of RX Family
Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
Simulator 瑞萨电子
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
IDE and Coding Tool 瑞萨电子
RX Driver Package
Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
Software Package 瑞萨电子
Reality AI Utilities
瑞萨电子 e² studio 插件模块
Solution Toolkit 瑞萨电子
SPI Serial EEPROM Driver
Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
Serial Memory 瑞萨电子
I²C Serial EEPROM Driver
Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
Serial Memory 瑞萨电子
Firmware Update module
By using the firmware update module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
Security / Crypto 瑞萨电子
RX Family Renesas FreeRTOS
FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
FreeRTOS 瑞萨电子
JPEG Encode/Decode Software Library for RX Family
JPEG Encode/Decode Software Library that comprises the JPEG Decoder and the JPEG Encoder
Imaging 瑞萨电子
31 items

样例程序

开发板与套件

模型

ECAD 模块

点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
