RZ/N2H 评估板套件
RZ/N2H 评估板套件是用于 RZ/N2H MPU 的一款评测和开发套件。 由于它具有板载仿真器，您只需将附带连线接到 PC 即可开始评测。 该评测板包含千兆以太网 PHY、非易失性存储器和 LPDDR4 存储器等功能丰富的元件，无需扩展板即可评估 RZ/N2H 的各种功能。
此外，通过扩展逆变器板，还可以实现多轴电机控制。
概览
描述

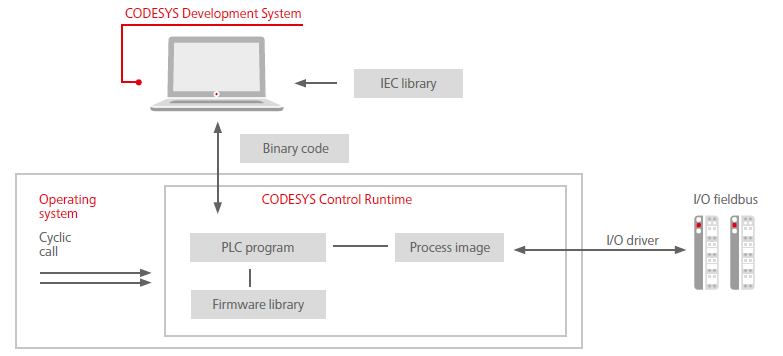

CODESYS Control Runtime System enables any embedded device to convert to IEC61131-3 controllers. The solution helps device manufacturers develop a customized IEC61131-3 controller with the functionality they need and is programmable using the CODESYS Development System. Demo software is available for CODESYS Control for Linux ARM SL and CODESYS Development System. The Control Runtime System solution is available for Renesas RZ/N, RZ/T, RZ/G and RZ/V series of MPUs.
图像
特性
- The CODESYS Control for Linux ARM SL for RZ/N, RZ/T, RZ/G and RZ/V is downloaded from here.
- Communication with the CODESYS Development System which is downloaded from here.
- Loading, managing and executing the compiled and debugged application code with the CODESYS Development System
- Handling the I/O systems and fieldbuses
- Provision of security functions for data and know-how protection
- Execution of optional add-on products, such as CODESYS Visualization or CODESYS SoftMotion CNC+Robotics for sophisticated motion applications
产品对比
应用
- Industrial automation for stationary / mobile machines
- Process automation
- Energy automation
- Building automation
