RZ/V2MA Evaluation Board Kit
This product is an evaluation board with RZ/V2MA configured as the key device. The RZ/V2MA Evaluation Board Kit is configured with the main board, base board, and...
概览
描述
DRP-AI utilizes an AI accelerator consisting of a Dynamically Reconfigurable Processor (DRP) and AI-MAC that accelerates AI inference to achieve both high-speed AI inference and low power consumption, enabling real-time image AI without heat sinks or cooling fans. In addition, the OpenCV accelerator, which takes advantage of DRP technology featuring high flexibility, enables high-speed image processing outside of AI in addition to image preprocessing for AI inference, all on a single chip.
These features enable smaller devices and lower BOM costs for vision AI applications in a wide range of embedded markets, including surveillance security, industrial automation, and healthcare.
[Application Examples]
Image Inspection Solutions | Intrusion Detection Solutions

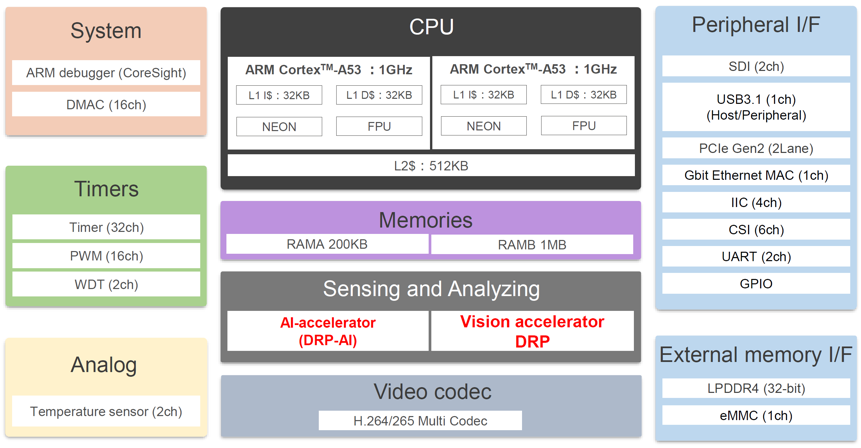

特性
- CPU and DDR Memory Interfaces
- 2x Cortex-A53 up to 1.0GHz
- 32-bit LPDDR4-3200
- Vision and Artificial Intelligence
- AI Accelerator; DRP-AI at 1.0 TOPS/W class
- OpenCV Accelerator (DRP)
- Video and Graphics, Display
- H.265/H.264 Multi Codec
Encoding; h.265 up to 2160p, h.264 up to 1080p
Decoding; h.265 up to 2160p, h.264 up to 1080p
- H.265/H.264 Multi Codec
- High Speed Interfaces
- 1x Gigabit Ethernet
- 1x USB3.1 Gen1 Host/Peripheral
- 1x PCIe Gen 2 (2-lane)
- 2x SDIO 3.0
- 1x eMMC 4.5.1
- Package: FCBGA, 15x15mm 0.5mm pitch
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RZ/V2MA DRP-AI Support Package[V7.50] This product provides the software and documentation for DRP-AI embedded within RZ/V2MA.
|
Software Package | 瑞萨电子 |
| RZ MPU Video Codec Library for RZ/V2MA This product provides the Video Codec Library for RZ/V2MA. Please read the release note for Linux Package of the target devices before using this product.
|
Software Package | 瑞萨电子 |
| DRP-AI Translator [V1.85] This is an AI model conversion tool (DRP-AI Translator) for DRP-AI equipped products. This product is also used as an internal tool for DRP-AI TVM (required when installing DRP-AI TVM).
|
Software Package | 瑞萨电子 |
| RZ/V2MA OpenCV Accelerator Support Package [V1.40] This product provides OpenCV Accelerator Support Package for RZ/V2MA.
|
Software Package | 瑞萨电子 |
| DRP-AI TVM (GitHub) We provide an AI model conversion tool (DRP-AI TVM) for DRP-AI-equipped products. When using this product, please check the contents of the linked README.md first.
|
Software Package | 瑞萨电子 |
| RZ/V Verified Linux Package [5.10-CIP] Linux Packages for MPUs of the RZ/V2L. Functions of this products have been verified and regular maintenance is also provided.
|
Software Package | 瑞萨电子 |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
7 items
|
||
开发板与套件
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
RZ/V Microprocessor (MPU) Ideal for Vision AI
Equipped with Renesas’ original DRP-AI Accelerator to deliver best-in-class thermal performance. In addition to delivering best-in-class thermal performance, easy-to-use evaluation board kit and software are available to shorten development time.
