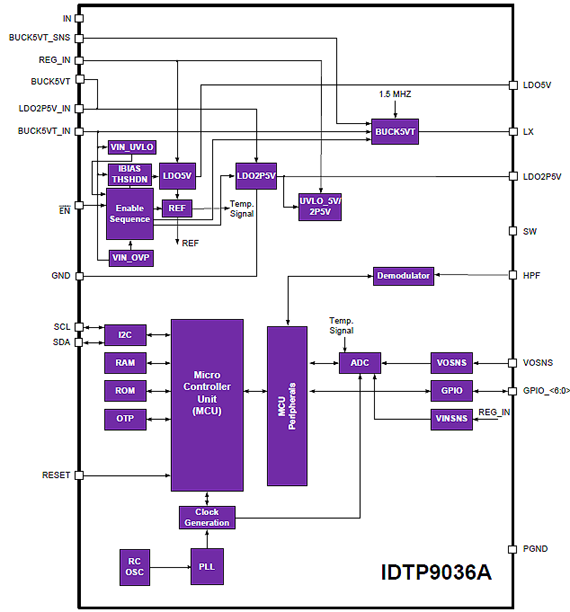

The IDT P9036A is a highly-integrated WPC-compliant wireless power transmitter IC for power transmitter WPC design TX-A6 which meets the requirements for compliance with the WPC1.1 standard. The device operates with a 12V adaptor, and drives an external half-bridge inverter for DC/AC conversion. It controls the transferred power by modulating the switching frequency of the half-bridge inverter from 115kHz to 205kHz at a fixed 50% duty cycle as specified by the WPC specification for an “A6” transmitter. It contains logic circuits required to demodulate and decode WPC-compliant message packets sent by the mobile device to adjust the transferred power.
特性
- 5W Solution for Wireless Power Consortium (WPC)-Compliant Power Transmitter Design TX-A6
- Conforms to WPC Version 1.1 Specifications
- Reduced EMI To Meet Requirements of WPC 1.1 Certification
- 12V Operating Input Voltage

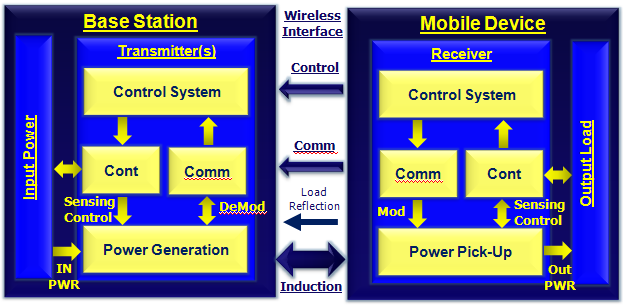

- Closed-Loop Power Transfer Control Between Base Station and Mobile Device
- Demodulates and Decodes WPC-Compliant Message Packets
- 5V Regulated DC/DC Converter
- Integrated RESET Function
- Proprietary Back-Channel Communication
- I2C Interface
- Open-Drain LED Indicator Outputs
- Over-Temperature Protection
- Security and Encryption up to 64 bits
- Foreign Object Detection (FOD)
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.72 MB | |
| 应用说明 | PDF 3.74 MB | |
| EOL 通告 | PDF 552 KB | |
| 产品变更通告 | PDF 533 KB | |
| 其他 | PDF 240 KB | |
5 items
|
||
设计和开发
开发板与套件
评估
P9036A-EVAL
过时
Evaluation Board for Wireless Power Transmitter P9036A
The P9036A-TX-A6 evaluation board serves to demonstrate the features and performance of the P9036A wireless power charging solution for base stations with a Tx-A6 coil transmitter. The three-coil transmitter system enables a large active power area with high efficiency transfer and enables power...
