封装信息
| CAD 模型: | View CAD Model |

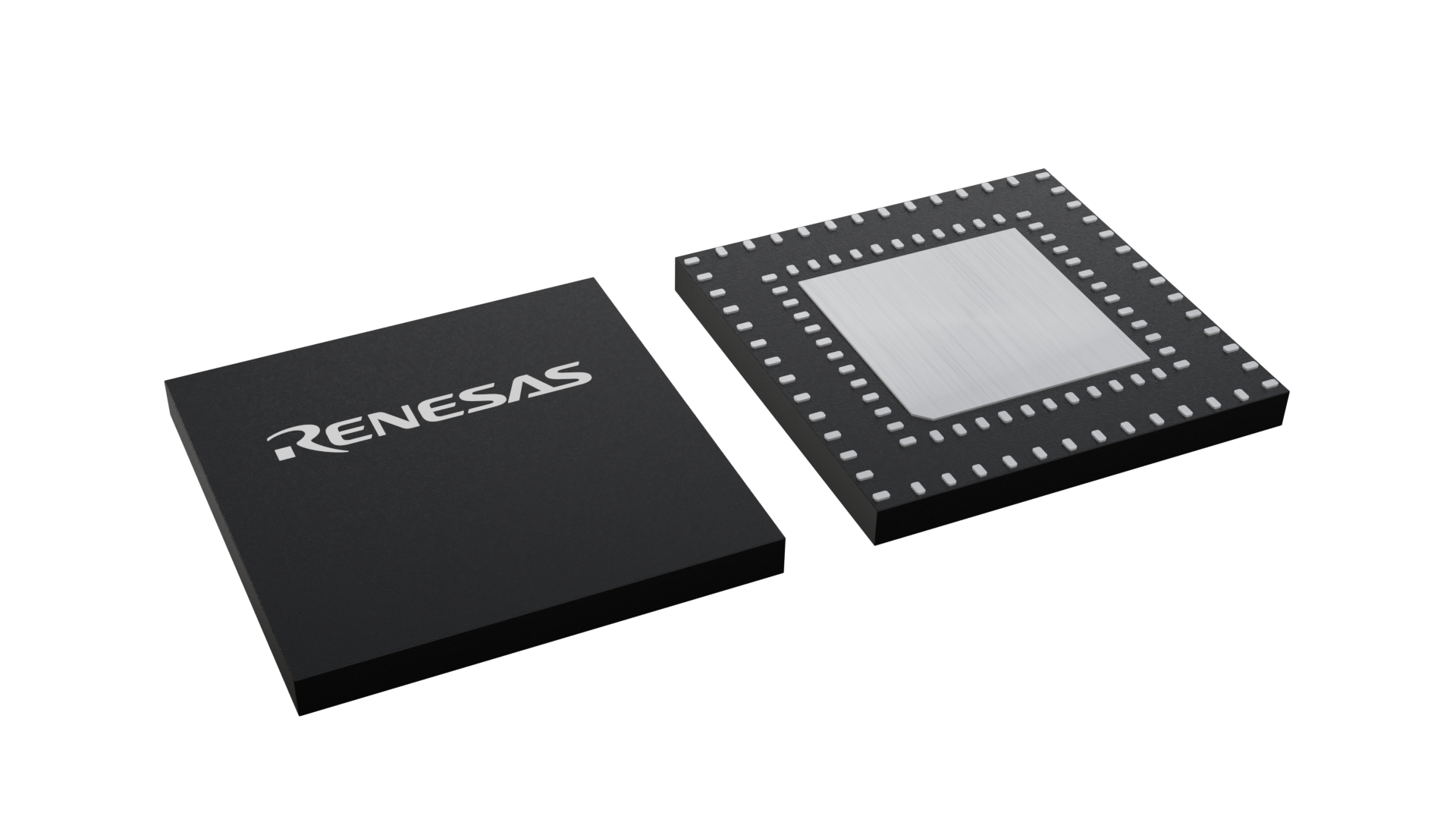

| Pkg. Type: | VFQFPN |
| Pkg. Code: | NHG100 |
| Lead Count (#): | 100 |
| Pkg. Dimensions (mm): | 9.0 x 9.0 x 0.85 |
| Pitch (mm): | 0.5 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Lead Count (#) | 100 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Advanced Features | Scalable output current, Sleep modes including S0ix, Programmable Sequencing |
| Qty. per Reel (#) | 0 |
| Tape & Reel | No |
| Qty. per Carrier (#) | 207 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e4 NiPdAu |
| Temp. Range (°C) | -40 to 85°C |
| Comm. Interface | High-speed I2C, SVID, DIF/DIO |
| Function | PMIC,Power Controller |
| GPIOs (#) | 15 |
| Input Voltage (Max) (V) | 5.25 |
| Input Voltage (Min) (V) | 4.5 |
| Input Voltage Range (V) | 4.5 - 5.25 |
| LDOs | 7 |
| Length (mm) | 9 |
| MOQ | 207 |
| Output Voltage (V) | 0.5V |
| Outputs (#) | 14 |
| Package Area (mm²) | 81 |
| Parametric Category | Multi-Channel Power Management ICs (PMICs) |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 9.0 x 9.0 x 0.85 |
| Pkg. Type | VFQFPN |
| Prog. Interface | TSPI |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Supply Voltage (V) | 4.5 - 5.25 |
| Switching Frequency (MHz) | 2 - 2 |
| Switching Regulators | 7 |
| Thickness (mm) | 0.85 |
| Width (mm) | 9 |
| 已发布 | No |
有关 P9180A 的资源
描述
IDT P9180A 是一款可编程、多通道电源管理集成电路 (PMIC)，旨在满足高性能要求并提供高功能集成，从而最大限度地减少系统电路板面积和 BOM 成本。 PMIC 包括用于电压调节、电源排序管理、A/D 转换、GPIO、PWM 等子系统。 P9180A 出厂时可根据具体应用的排序和输出电压要求进行编程。 该器件支持 VCC、VNN 和 VDDQ（可选）的串行电压 ID（SVID）接口。 P9180A 解决方案的输出电流能力可通过增加 IDT 的智能型 P9148 分布式电源装置 (DPU) 来提高。
