概览
描述
The RAA214038 is an ultra-low noise, high PSRR, low-dropout regulator capable of sourcing up to 3A of load current with only 180mV dropout voltage. It operates from an input voltage of 1.1V for low-voltage applications to 6.5V
The LDO output voltage can be programmed from 0.8V to 3.95V using voltage setting pins on the IC in 50mV steps, eliminating the need for traditional external feedback resistors and saving PCB space. External feedback resistors can still be used for higher output voltage applications, allowing the output voltage to be programmed anywhere from 0.8V to 5.1V.

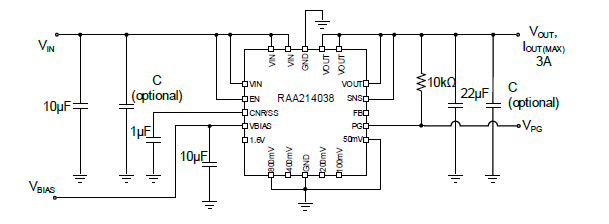

特性
- Maximum dropout: 180mV at 3A with BIAS
- Output voltage accuracy: ±1%
- Ultra-low output noise: 7μVRMS
- Input voltage range:
- Without BIAS: 1.4V to 6.5V
- With BIAS: 1.1V to 6.5V
- Output voltage range:
- Using voltage set pins: 0.5V to 3.65V
- Using external FB resistors: 0.5V to 5.1V
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| iSim:PE 离线模拟工具 iSim Personal Edition（iSim:PE ）可加快设计周期并降低项目早期风险，确定可用于当前和下一代设计的部件。
|
Simulator | 瑞萨电子 |
1 item
|
||
开发板与套件
评估
RAA214038 Low-dropout Linear Regulator (LDO)
The RTKA214038DE0000BU evaluation board provides a simple platform to evaluate the 3.5×3.5mm 20-Ld QFN RAA214038 low-dropout linear regulator (LDO).
RAA214038 is an ultra-low noise, high PSRR LDO regulator capable of sourcing up to 3A of load current with very low dropout. The output voltage can...
评估
RAA214035 Low-dropout Linear Regulator (LDO) Evaluation Board
The RTKA214035DE0000BU evaluation board provides a simple platform to evaluate the 3.5mm x 3.5mm 20-Ld QFN RAA214035 low-dropout linear regulator (LDO).
The RAA214035 is an ultra-low noise, high PSRR LDO regulator capable of sourcing up to 3A of load current with very low dropout. Its output...
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
