SLG59M1495V Evaluation Board
The SLG59M1495V-EVB board evaluates the SLG59M1495V GreenFET, Single N-Channel, Load Switch.
概览
描述

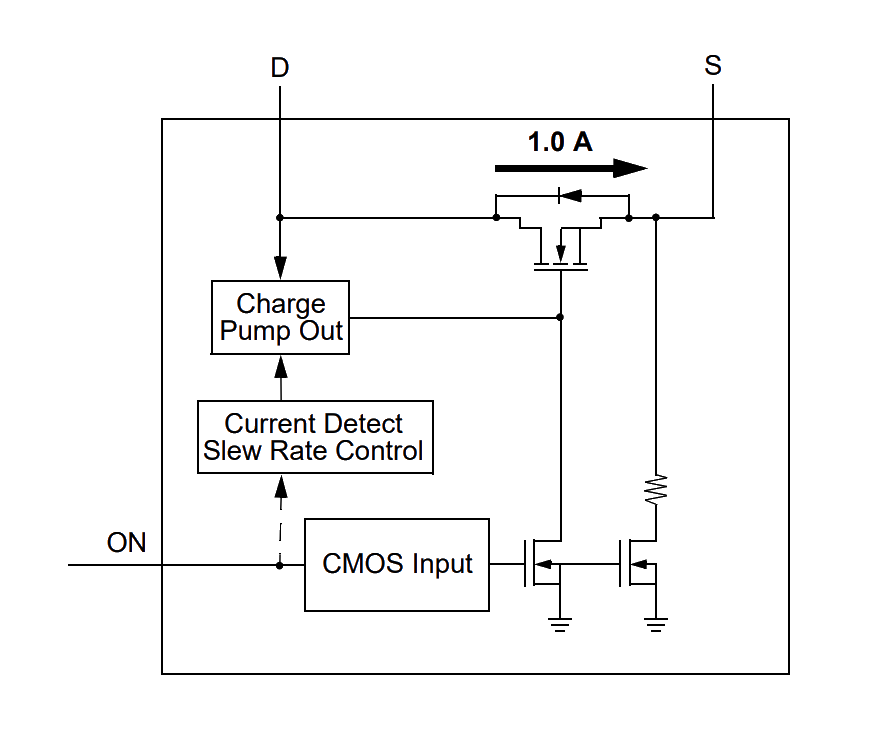

The SLG59M1495V single N-channel load switch is designed for load switching applications. The part comes with one 80mΩ 1.0A‑rated MOSFET controlled by a single ON control pin. The MOSFET’s ramp rate is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra‑small 1.0mm x 1.0mm package.
特性
- Optimized for smartphone and notebook/tablet PC applications
- 80mΩ RDSON while supporting 1.0A
- Input voltage range: 2.5V ≤ VD ≤ 5.5V
- Output voltage slew-rate control by resistor
- Over-temperature protection
- Output discharge circuitry
- Sleep mode current (IDDOFF) in low µA range
