SLG59M1558V Evaluation Board
The SLG59M1558V-EVB board evaluates the SLG59M1558V GreenFET, Single P-Channel Load Switch.
概览
描述

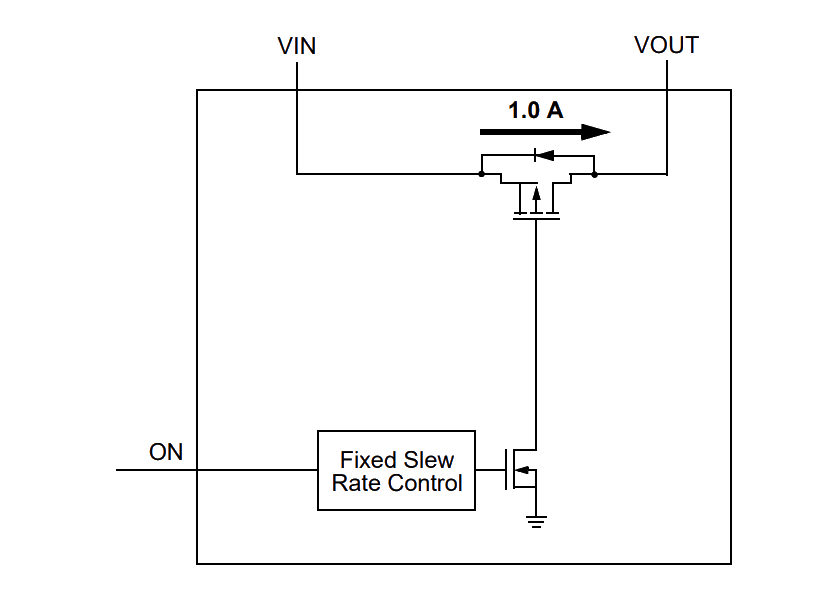

The SLG59M1558V is designed for load switching applications with ultra-low quiescent current. This device comes with one 28.5mΩ 1.0A rated P‑channel MOSFET controlled by a single ON control pin. The product is packaged in an ultra‑small 1.0mm x 1.0mm package.
特性
- For low-power, mobile, and portable electronic product designs
- Input voltage range: 1.5V ≤ VIN ≤ 5.5V
- Low RDSON
- 28.5mΩ at 5.0V
- 36.4mΩ at 3.3V
- 60.8mΩ at 1.8V
- 77.6mΩ at 1.5V
- Ultra-low quiescent current
- OFF: 0.02µA typical
- ON: 0.05µA typical
- Options with or without internal VOUT discharge circuitry
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 426 KB | |
| 宣传手册 | PDF 5.05 MB | |
| 指南 | PDF 2.77 MB | |
| 应用笔记 | PDF 911 KB | |
| 应用笔记 | PDF 364 KB | |
5 items
|
||
