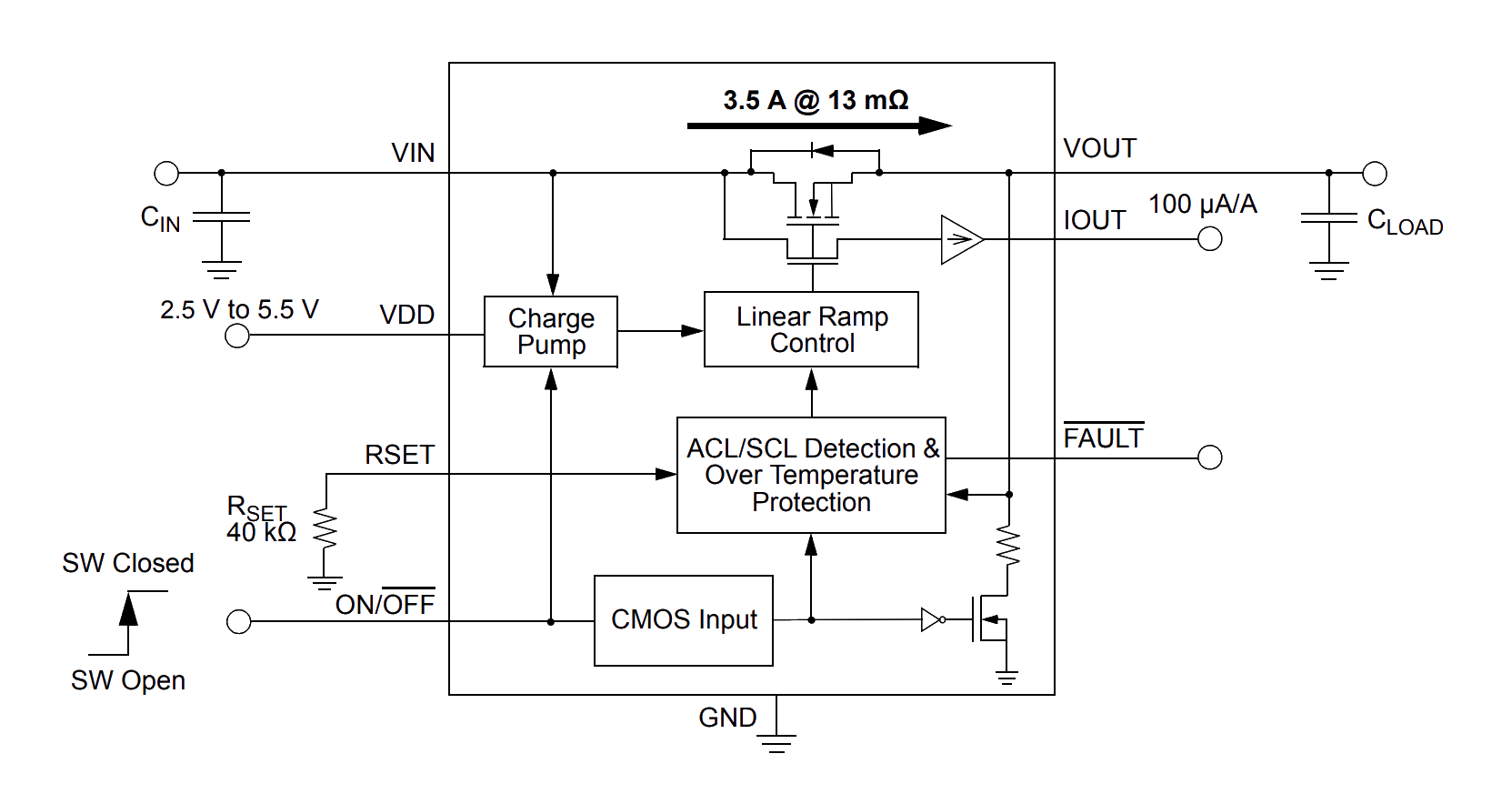

Operating from a 2.5V to 5.5V power supply and fully specified over the -40 °C to 125 °C extended industrial temperature range, the SLG59M1707V is a high‑performance 13mΩ, 3.5A single‑channel nFET load switch designed for all 0.8V to 5.5V power rail applications. With a fixed VOUT slew rate of 3V/ms, inrush current is internally limited. Using a proprietary MOSFET design, the SLG59M1707V achieves a stable 13mΩ RDSON across a wide input/supply voltage range. The SLG59M1707V also incorporates resistor‑adjustable current limiting as well as thermal protection. Using proprietary technology for high‑current operation, the SLG59M1707V is packaged in a space‑efficient, low thermal resistance, RoHS‑compliant 1.6mm x 2.5mm STQFN package.
特性
- Optimized for notebook, tablet, and smartphone power rail switching
- Operating temperature: -40 °C to 125 °C
- 13mΩ RDSON while supporting 3.5A
- Generates very low thermal gradients
- Supply voltage: 2.5V ≤ VDD ≤ 5.5V
- Wide Input voltage range: 0.8V ≤ VIN ≤ VDD
- Fixed VOUT slew rate: 3V/ms
- Two-stage overcurrent protection:
- Resistor-adjustable active current limit
- Fixed 0.5A short-circuit current limit
- Thermal shutdown protection
- Open-drain FAULT signaling
- Analog current monitor output: 100μA/A
- ON-OFF control: Active HIGH
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
SLG59M1707V Evaluation Board
The SLG59M1707V-EVB board evaluates the SLG59M1707V GreenFET Single N-Channel Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
