描述

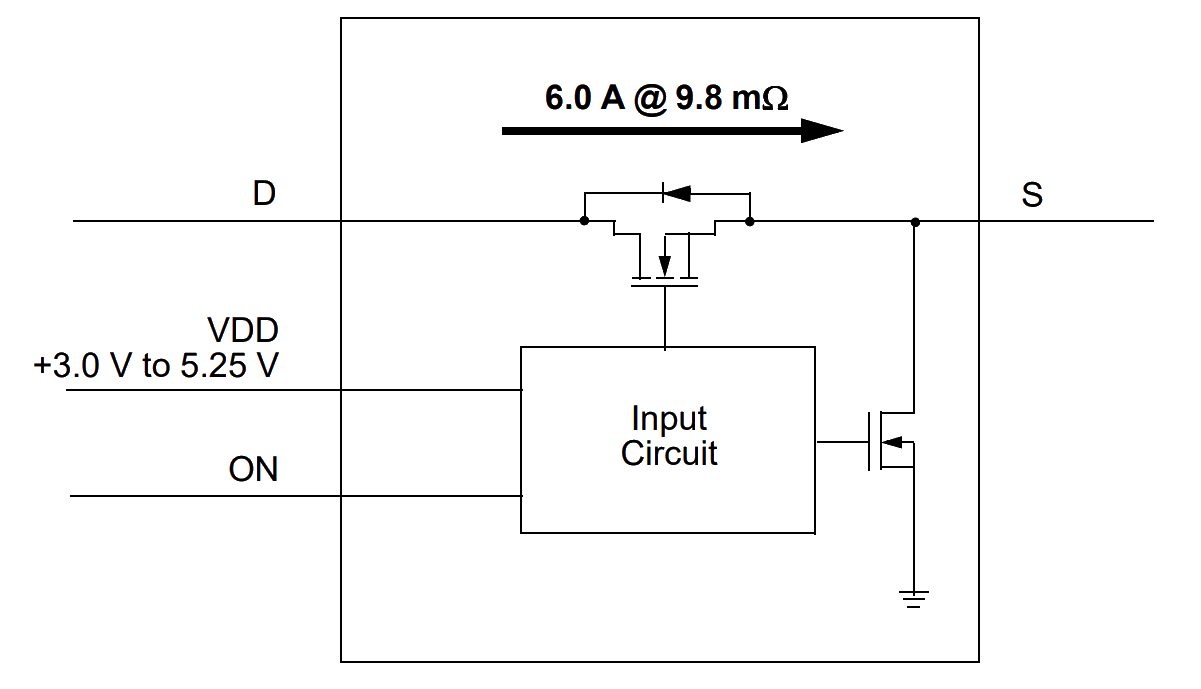

The SLG5NT1477V is a 9.8mΩ 6.0A single‑channel load switch that can switch 0.85V to 3.3V power rails. The product is packaged in an ultra‑small 1.5mm x 2.0mm package.
特性
- Optimized for smartphone and notebook/tablet PC applications
- 9.8mΩ RDSON while supporting 6.0A
- Power supply: 3.0V ≤ VDD ≤ 5.25V
- Input voltage range: 0.85V ≤ VD ≤ VDD - 1.5V
- Output discharge circuitry
- Sleep mode current (IDDOFF) in low µA range
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
SLG5NT1477V Evaluation Board
The SLG5NT1477V-EVB board evaluates the SLG5NT1477V GreenFET, Single N-Channel, Notebook PC Reference Design Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
Introduction to Ultra Low RDSon Load Switches
