QS32X245

过时

High-Speed CMOS QuickSwitch Double Width Bus Switch

概览

The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout. The low ON-resistance of the QS32X245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices. The QS32X245 operates at -40 °C to +85 °C.

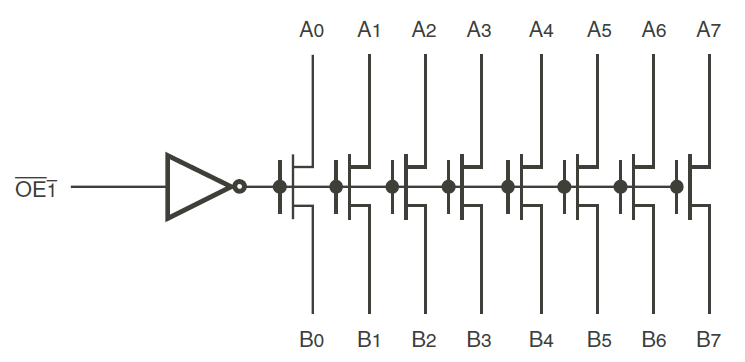

QS32X245 - Block Diagram
QS32X245 - Block Diagram
  • Enhanced N-channel FET with no inherent diode to VCC
  • Dual '245 function
  • 25Ω resistor for low noise
  • Low propagation delay, zero ground bounce
  • Undershoot clamp diodes on all switch and control inputs
  • TTL-compatible control inputs
  • Available in a 40-pin QVSOP package

文档

设计和开发

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块
Diagram of ECAD Models

模型
类型 文档标题 日期
模型 - IBIS
QS32x245 IBIS Model
ZIP 4 KB
模型 - SPICE
QS32x245 Hspice Model
登录后下载 ZIP 5 KB
