描述

The QS32XL384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32XL384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The QS32XL384 is ideal for switching wide digital buses, as well as hot-docking, 5V to 3V conversion and capacitance isolation for power conservation. The QS32XL384 operates at -40C to +85C.

特性

  • Enhanced N channel FET with no inherent diode to VCC
  • 5 ohm bidirectional switches connect inputs to outputs
  • Zero propagation delay, zero ground bounce
  • Undershoot Clamp Diodes on all switch and control Inputs

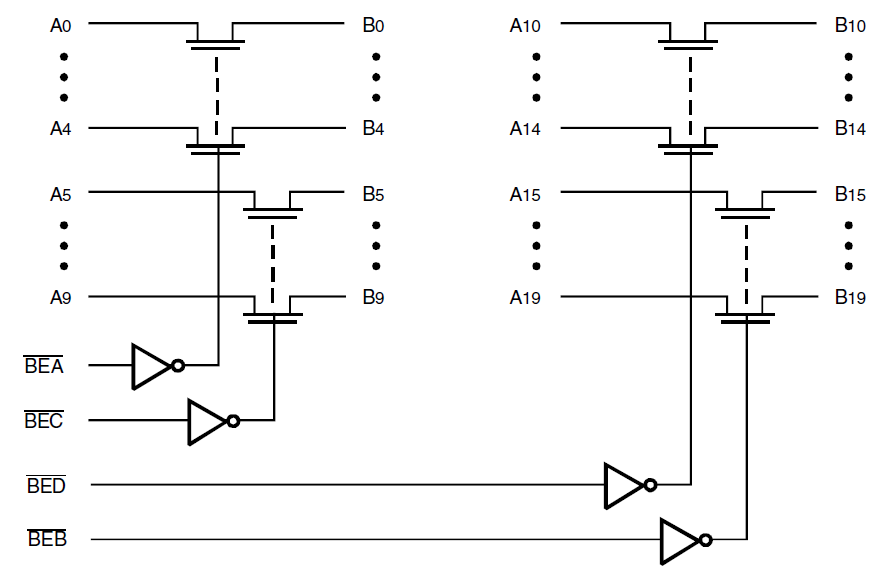

  • Four enables control five bits each
  • TTL-compatible input and output levels
  • Available in 48-pin QVSOP package

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - SPICE 登录后下载 ZIP 5 KB
模型 - IBIS ZIP 4 KB
2 items
