封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | TSOT |
| Pkg. Code: | PBL |
| Lead Count (#): | 5 |
| Pkg. Dimensions (mm): | 2.9 x 1.6 x 0.85 |
| Pitch (mm): | 1 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (RAA2118054GP3#JA0) | 英语日文 |
产品属性
| Longevity | 2033 12月 |
| Pkg. Type | TSOT |
| Lead Count (#) | 5 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Nickel/Palladium/Gold-e4 |
| Temp. Range (°C) | -55 to +125°C |
| Country of Assembly | TAIWAN, THAILAND |
| Country of Wafer Fabrication | TAIWAN |
| Control Type | Peak Current Mode |
| IQ [Rail 1] (µA) | 5 |
| Input Voltage (Max) [Rail 1] (V) | 80 - 80 |
| Input Voltage (Min) [Rail 1] (V) | 7 |
| Length (mm) | 2.9 |
| MOQ | 3000 |
| Output Current (Max) [Rail 1] (A) | 0.3 |
| Output Voltage (Max) [Rail 1] (V) | 5.15 |
| Output Voltage (Min) [Rail 1] (V) | 4.75 |
| Outputs (#) | 1 |
| Parametric Category | Buck Regulators (Integrated FETs) |
| Pitch (mm) | 1 |
| Pkg. Dimensions (mm) | 2.9 x 1.6 x 0.85 |
| Price (USD) | $0.21307 |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 3000 |
| Qualification Level | Standard |
| Reel Size (in) | 7 |
| SYNCH Capability | No |
| Simulation Model Available | iSim |
| Switching Frequency Range (Typical) (kHz) | 230 |
| Tape & Reel | Yes |
| Thickness (mm) | 0.85 |
| Topology [Rail 1] | Buck |
| Width (mm) | 1.6 |
有关 RAA211805 的资源
描述
RAA211805 是一款微型、易用、超低静态电流 (IQ) 降压转换器，具有 7V 至 80V 的宽输入电压范围，以及高达 300mA 的输出电流和5V 的固定输出电压。

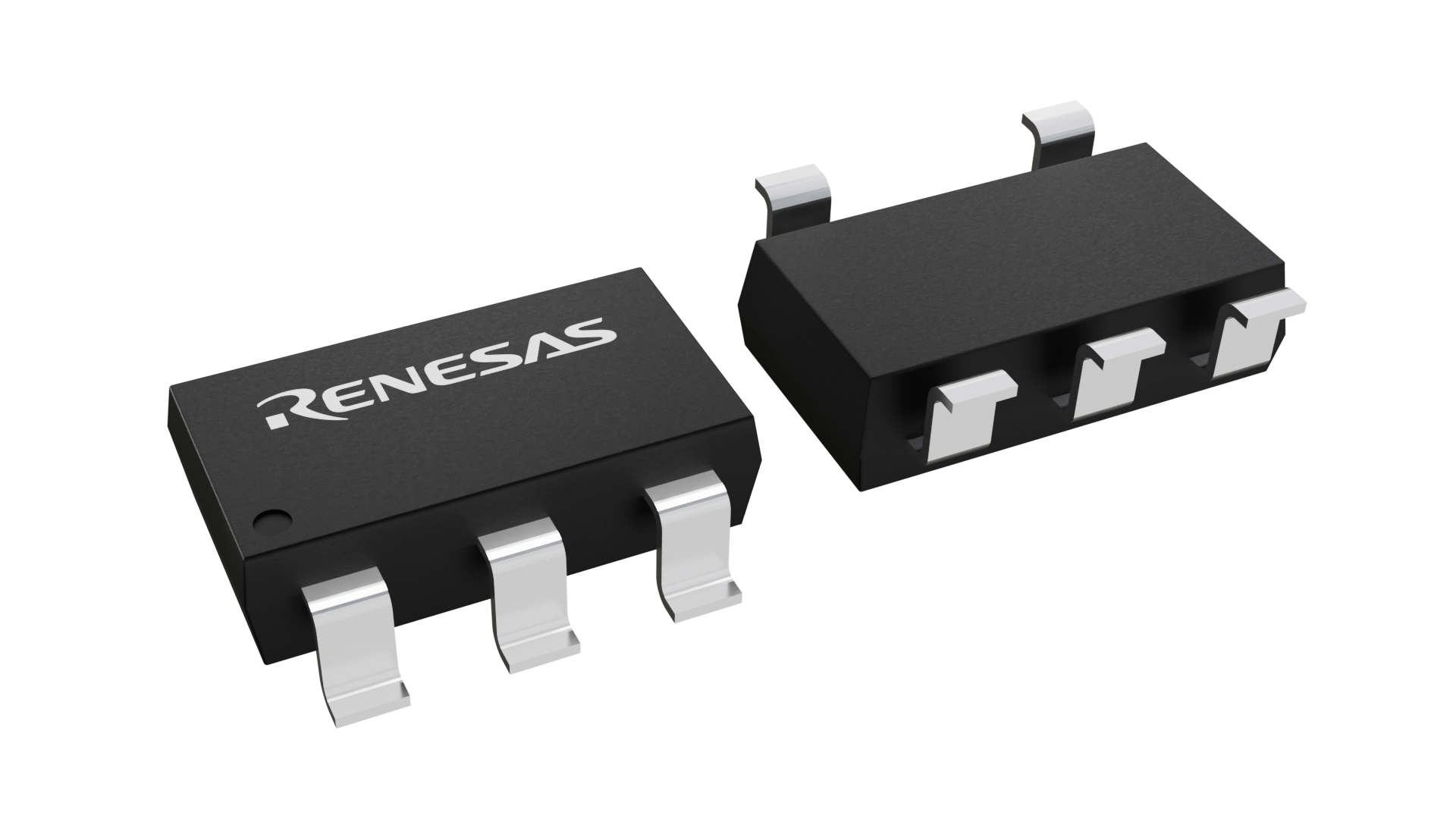

该器件可提供全面的保护，包括 输入欠压保护、输出过压保护、过流保护和过温保护。 该器件采用 TSOT23-5 封装。
