封装信息

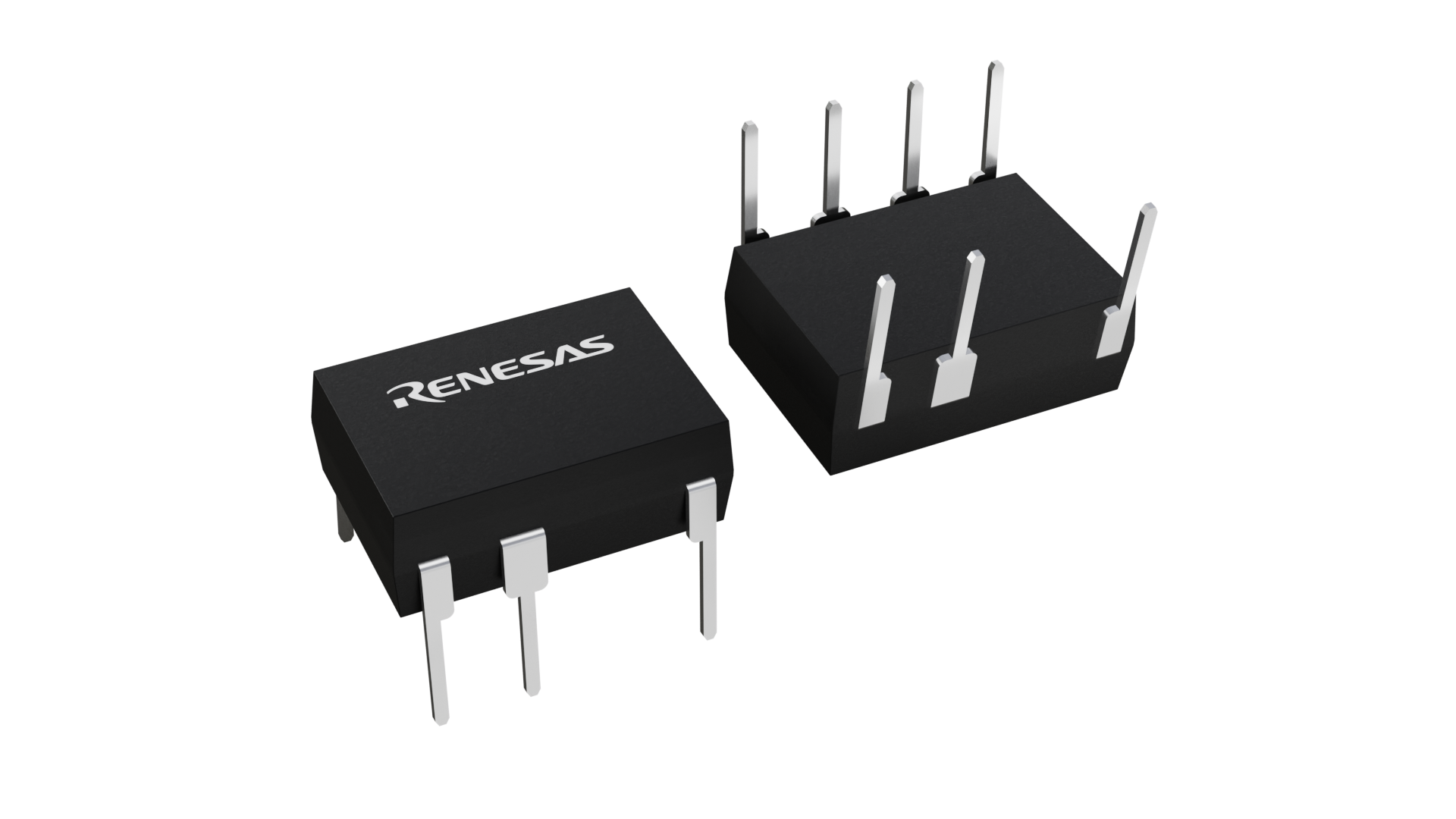

| CAD 模型: | View CAD Model |
| Pkg. Type: | PDIP |
| Pkg. Code: | EXD |
| Lead Count (#): | 7 |
| Pkg. Dimensions (mm): | 9.27 x 6.35 x 3.30 |
| Pitch (mm): | 2.54 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (RAA2238814GSP#AA1) | 下载 |
产品属性
| Pkg. Type | PDIP |
| Lead Count (#) | 7 |
| Carrier Type | Tube |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +125°C |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | SOUTH KOREA |
| Advanced Features | Built-in HV startup |
| Application | Home Appliances, Networking, Smart Meters |
| Control Mode | Peak Current Mode DCM/CCM |
| Controller / Integrated | Integrated |
| Length (mm) | 9.3 |
| MOQ | 600 |
| Output Power Max (W) | 15 |
| PWMs (#) | 1 |
| Parametric Category | Flyback & Forward Controllers |
| Pitch (mm) | 2.5 |
| Pkg. Dimensions (mm) | 9.3 x 6.3 x 3.30 |
| Price (USD) | $1.10128 |
| Qualification Level | Standard |
| Switching Frequency (KHz) | 65 - 65 |
| Thickness (mm) | 3.3 |
| Topology Characteristic | Fixed-Frequency Flyback |
| UVLO Falling (V) | 8 |
| UVLO Rising (V) | 12 |
| VBIAS (Max) (V) | 30 |
| Width (mm) | 6.3 |
有关 RAA223881 的资源
描述
RAA223881是一款集成了 700V 功率 MOSFET 的离线反激式稳压器，为高输入电压应用（如家电、空调和 15W 输出的通用隔离电源）提供了高性价比的解决方案。 反激式稳压器以 65kHz 的恒定开关频率工作，并采用电流模式控制。 在轻负载时，该器件以突发模式运行以降低功耗，并使用次级侧反馈来提供出色的输出电压调节。 该RAA223881具有集成的高压 （HV） 启动功能，可减少系统组件数量。 它还提供频率抖动功能，以简化 EMI 滤波器设计。 该器件采用 7 Ld PDIP 封装。
