封装信息

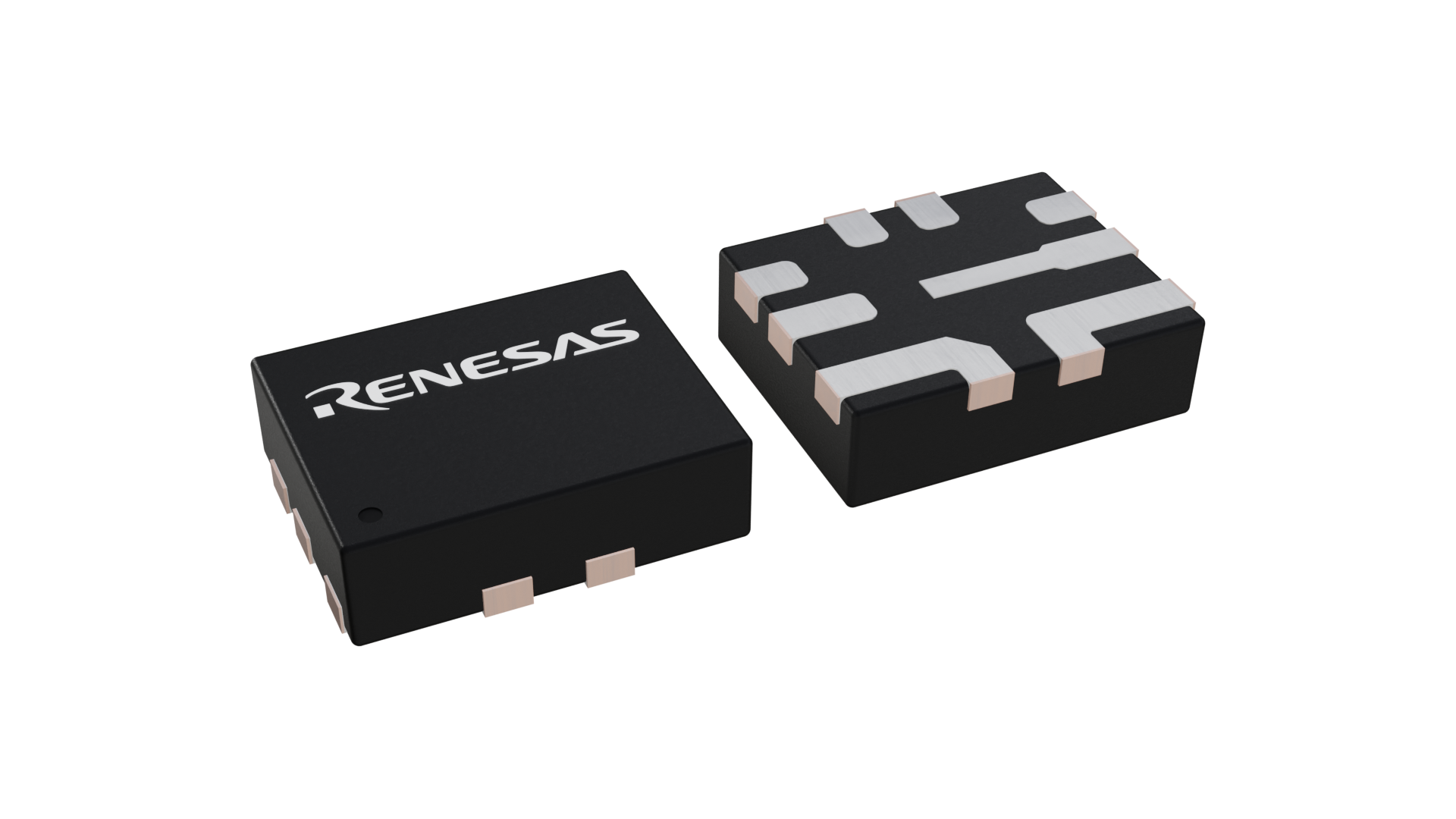

| CAD 模型: | View CAD Model |
| Pkg. Type: | TQFN |
| Pkg. Code: | LOA |
| Lead Count (#): | 10 |
| Pkg. Dimensions (mm): | 2.00 x 2.50 x 0.75 |
| Pitch (mm): | 0.6 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
产品属性
| Longevity | 2033 12月 |
| Pkg. Type | TQFN |
| Lead Count (#) | 10 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +125°C |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | SOUTH KOREA |
| Control Type | COT |
| IQ [Rail 1] (µA) | 55 |
| Input Voltage (Max) [Rail 1] (V) | 5.5 - 5.5 |
| Input Voltage (Min) [Rail 1] (V) | 2.7 |
| Length (mm) | 2 |
| MOQ | 6000 |
| Output Current (Max) [Rail 1] (A) | 5 |
| Output Voltage (Max) [Rail 1] (V) | 5 |
| Output Voltage (Min) [Rail 1] (V) | 0.6 |
| Outputs (#) | 1 |
| Parametric Category | Buck Regulators (Integrated FETs) |
| Peak Efficiency (%) | 95 |
| Pitch (mm) | 0.6 |
| Pkg. Dimensions (mm) | 2.0 x 2.5 x 0.75 |
| Power-On Reset | No |
| Price (USD) | $0.81228 |
| Qualification Level | Standard |
| SYNCH Capability | No |
| Switching Frequency Range (Typical) (kHz) | 1800 - 1800 |
| Thickness (mm) | 0.75 |
| Topology [Rail 1] | Buck |
| Width (mm) | 2.5 |
有关 RAA808015 的资源
描述
RAA808015 是一款小型单通道 DC/DC 同步降压稳压器。 为满足 2.7~5.5V 输入轨和 5A 负载应用的要求，稳压器需要较高的开关频率，以尽量减小电感器尺寸、增强瞬态响应性能并提高轻负载效率。 该稳压器采用 COT IP 设计，可提高瞬态响应性能，还采用 PFM 技术，可提高轻负载效率。 它有两种衍生产品，RAA808015A（DEM）和 RAA808015B（Force PWM），可减少 BOM 数量，无需额外的组件。 RAA808015A/B 采用 10 引脚 2*2.5 QFN 封装。
