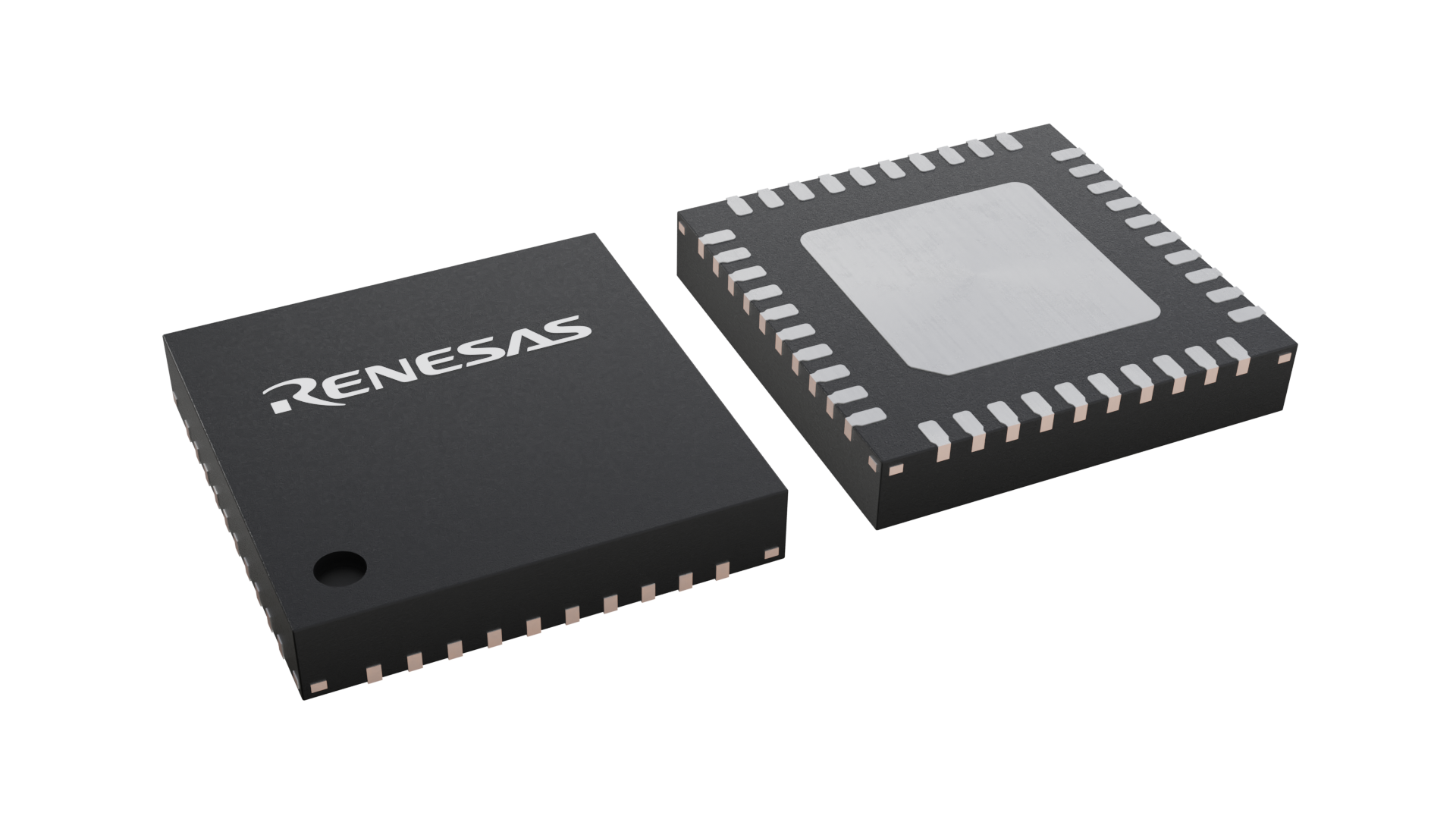

封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | HVQFN |
| Pkg. Code: | pkg_20011 |
| Lead Count (#): | 40 |
| Pkg. Dimensions (mm): | 5 x 5 x 0.96 |
| Pitch (mm): | 0.4 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | 3A991.a.2 |
| HTS (US) | 8542.39.0090 |
产品属性
| Lead Count (#) | 40 |
| Carrier Type | Tape & Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Application | Battery Management Unit |
| Charge/Discharge FET Control | Low Side |
| Comm. Interface | I2C, UART |
| Device Functions | Battery Protection, Fuel gauging |
| Family Name | Fuel Gauge IC (FGIC) |
| Flash Memory (KB) | 64KB |
| I/O Ports | 15 |
| Lead Compliant | Yes |
| Length (mm) | 5 |
| MOQ | 4000 |
| Parametric Category | Battery Fuel Gauges |
| Pkg. Dimensions (mm) | 5 x 5 x 0.95 |
| Pkg. Type | HVQFN |
| RAM (KB) | 4KB |
| Remarks | Li-ION battery Fuel gauge |
| Series Cells | 3 to 10 Cells |
| Supply Voltage (V) | 8 - 50 |
| Tape & Reel | Yes |
| Target applications | Industrial/Hi-power equipment |
| Thickness (mm) | 0.95 |
| Width (mm) | 5 |
有关 RAJ240310GNP 的资源
描述
RAJ240310 是瑞萨的一款锂离子电池电量计集成电路（FGIC），由 MCU 器件和 AFE 器件组成，采用单一封装。 配备多种电池管理功能和瑞萨 RL78 CPU 内核，具有多种低功耗模式，可在超低功耗运行下实现高性能。 RAJ240310 的闪存嵌入在 MCU 上（与其他 RL78 系列相同），用于存储程序指令（代码）以及执行电池电压/电流/温度测量、剩余容量估计、过流/电压/温度保护和其他电池管理操作的数据。
