封装信息
| CAD 模型: | View CAD Model |

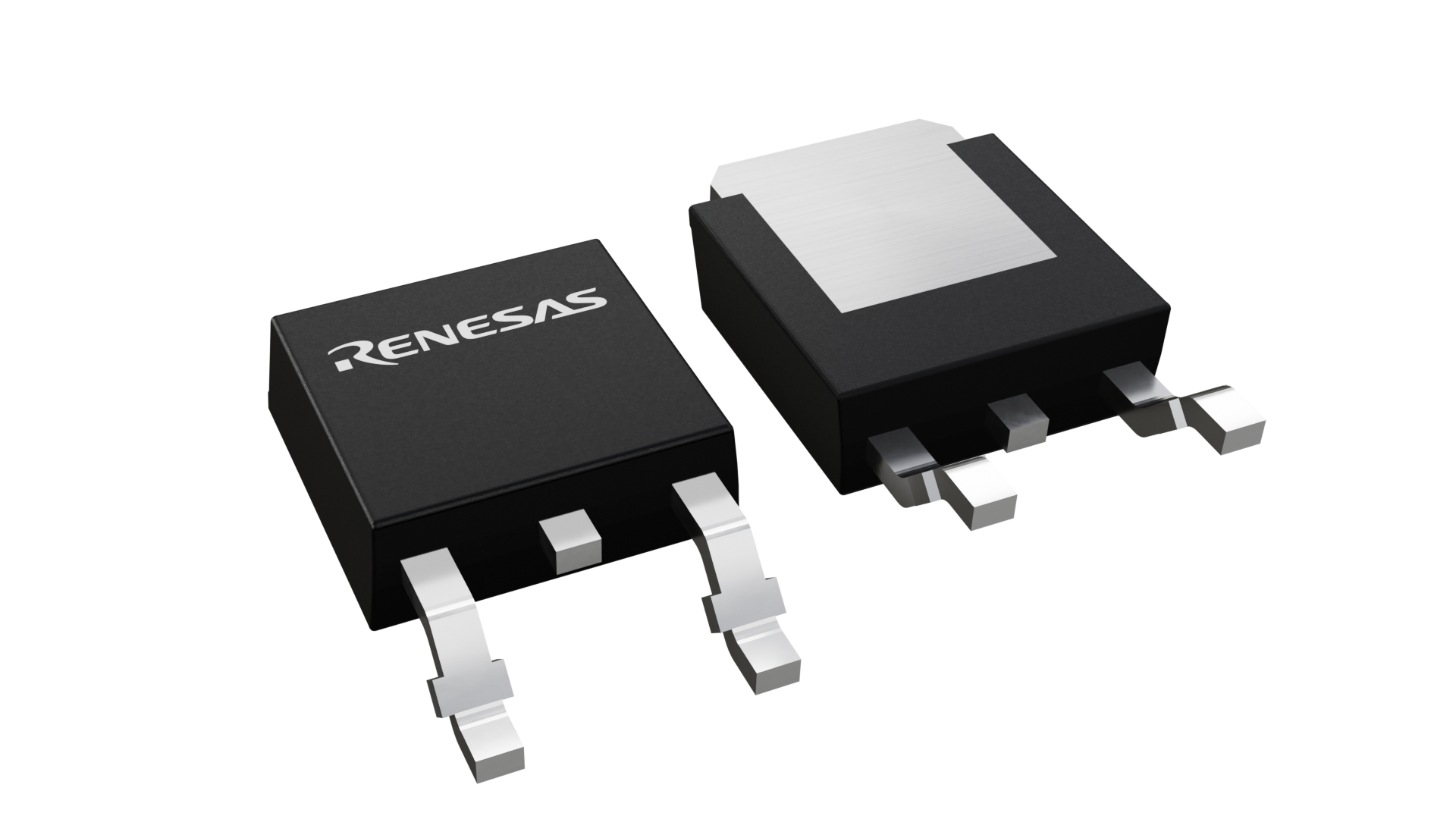

| Pkg. Type: | TO-252 |
| Pkg. Code: | pkg_11637 |
| Lead Count (#): | 4 |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| RoHS (RJH60A81RDPD-A0#J2) | 英语日文 |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | TO-252 |
| Lead Count (#) | 4 |
| Carrier Type | Embossed Tape |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Application | Small Motor Controll |
| Channels (#) | 1 |
| Configuration | Body Diode |
| FRD Vf (V) | 1.9 |
| FRD trr (ns) | 100 |
| IC @100 °C (A) | 5 |
| IC @25 °C (A) | 10 |
| Ic (Peak) (A) | 15 |
| Lead Compliant | No |
| MOQ | 3000 |
| Mounting Type | Surface Mount |
| Pch (W) | 29.4 |
| Series Name | RJH60 A8x Series |
| Tape & Reel | No |
| VCE (sat) (V) | 2.4 |
| VCES (V) | 600 |
| VDSS (Max) (V) | 600 |
| tf (Typical) (µs) | 0.085 |
| tsc (μs) | 3 |
有关 RJH60A81RDPD-A0 的资源
描述
Support is limited to customers who have already adopted these products.
IGBT product series for Power Factor Correction (PFC), UPS, solar power generation, and welding applications, recommended for 50 to 100 kHz frequencies, and not guaranteed against short circuit.
