特性

  • This RCD enhances the performance and reliability of memory modules by ensuring precise timing and signal integrity. Renesas RCD RRG5004 is validated by all major memory vendors.
  • Compliant with JEDEC DDR5RCD04 specification
  • Pinout optimized for DDR5 RDIMM PCB layout
  • DDR5 server speeds up to 7200MT/s
  • Supports power-down modes to conserve server power
  • Supports 1-rank/2-rank DIMM configurations
  • Supports single die package (SDP), dual die package (DDP), and 3D stacking DRAM types
  • Provides access to internal control words for configuring device features and adapting to different RDIMM system applications
  • I2C and I3C sideband access for asynchronous register access control
  • Loopback and pass-through modes
  • Package: 8.7 × 13.5 mm, 240-FCBGA

描述

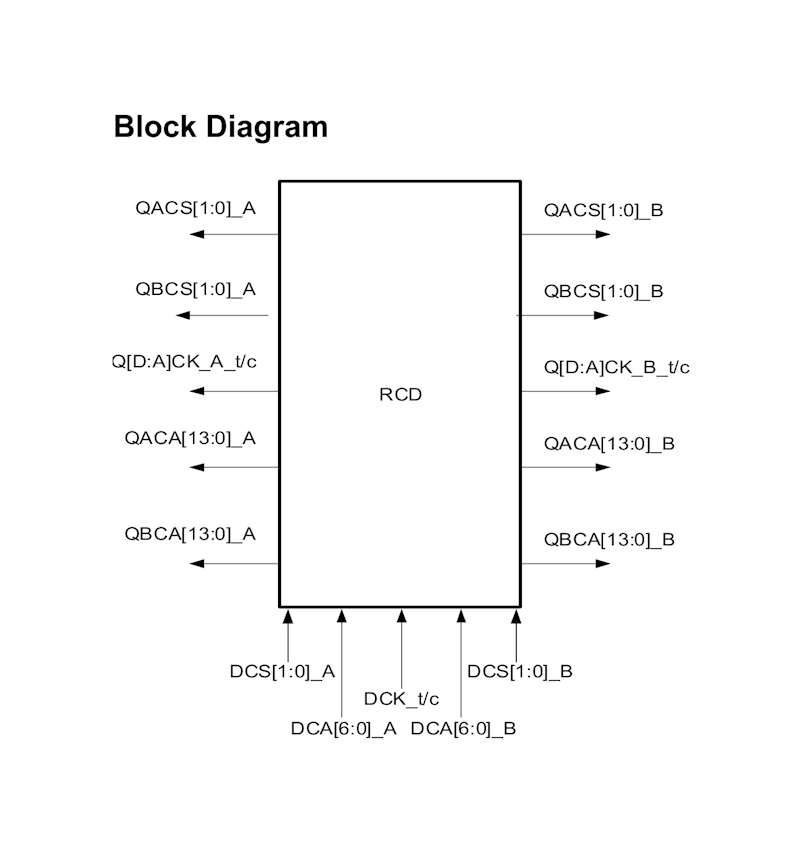

The RRG5004 (Gen 4 RCD) is a registering clock driver used on DDR5 RDIMMs. It supports DDR5 server speeds up to 7200 MT/s. Its primary function is to buffer the Command Address (CA) bus, chip selects, and clock between the host controller and the DRAMs.

  • Dual-Channel Design: Operates independently with shared common logic such as clocking, enhancing performance and reliability.
  • High-Speed Support: Achieves speeds up to 7200 MT/s, catering to the demands of modern server environments.
  • Versatile Compatibility: Supports both x4 and x8 DRAM configurations, providing flexibility for various applications.
  • I3C Bus Interface: Facilitates sideband communication with the CPU or motherboard Baseboard Management Controller (BMC), ensuring smooth operations and management.
  • Efficient Data Handling: Each channel features a 7-bit double data rate CA bus input, single parity input, two chip-select inputs, and produces two copies of 14-bit single data rate CA bus outputs and chip-select outputs.
  • Integrated Clock Management: Common clock input and PLL with separate clock outputs for each DRAM channel, optimizing synchronization and performance.

产品参数

属性
Product TypeRegistering Clock Driver
FunctionDDR5 Gen 4.0 Server RCD
Application SystemServer
Input Voltage Range (V)1.06 - 1.16

封装选项

Pkg. TypePkg. Dimensions (mm)Lead Count (#)Pitch (mm)
FCCSP13.5 x 8.7 x 0.92400.65

应用

  • Server/Data Center
Part NumberStatusSamplesStockPackageLead Count (#)Carrier TypeMoisture Sensitivity Level (MSL)Qty. per Reel (#)Qty. per Carrier (#)Pb (Lead) FreePb Free CategoryTemp. Range (°C)
RRG50040-A00ActiveAvailableOut of StockFCCSP240#Tray30170#Yese1 SnAgCu0 to 70°C
RRG50041-A00ActiveAvailableOut of StockFCCSP240#Reel33000#0Yese1 SnAgCu0 to 70°C
