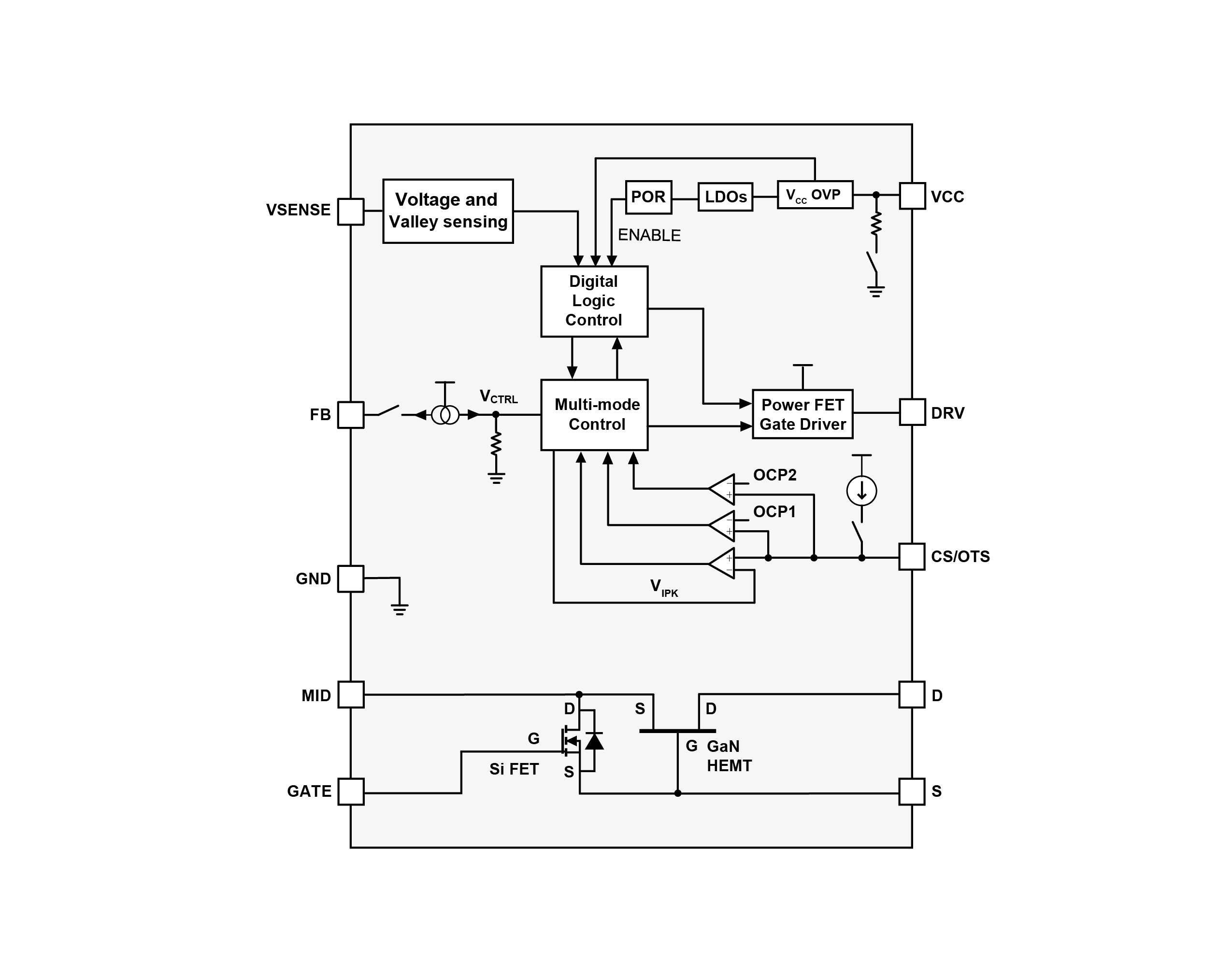

Functional block diagram of the RRW2212x showing the internal control logic, gate driver, protection circuitry, sensing paths, and signal flow between the controller, power stage, and external system interfaces.

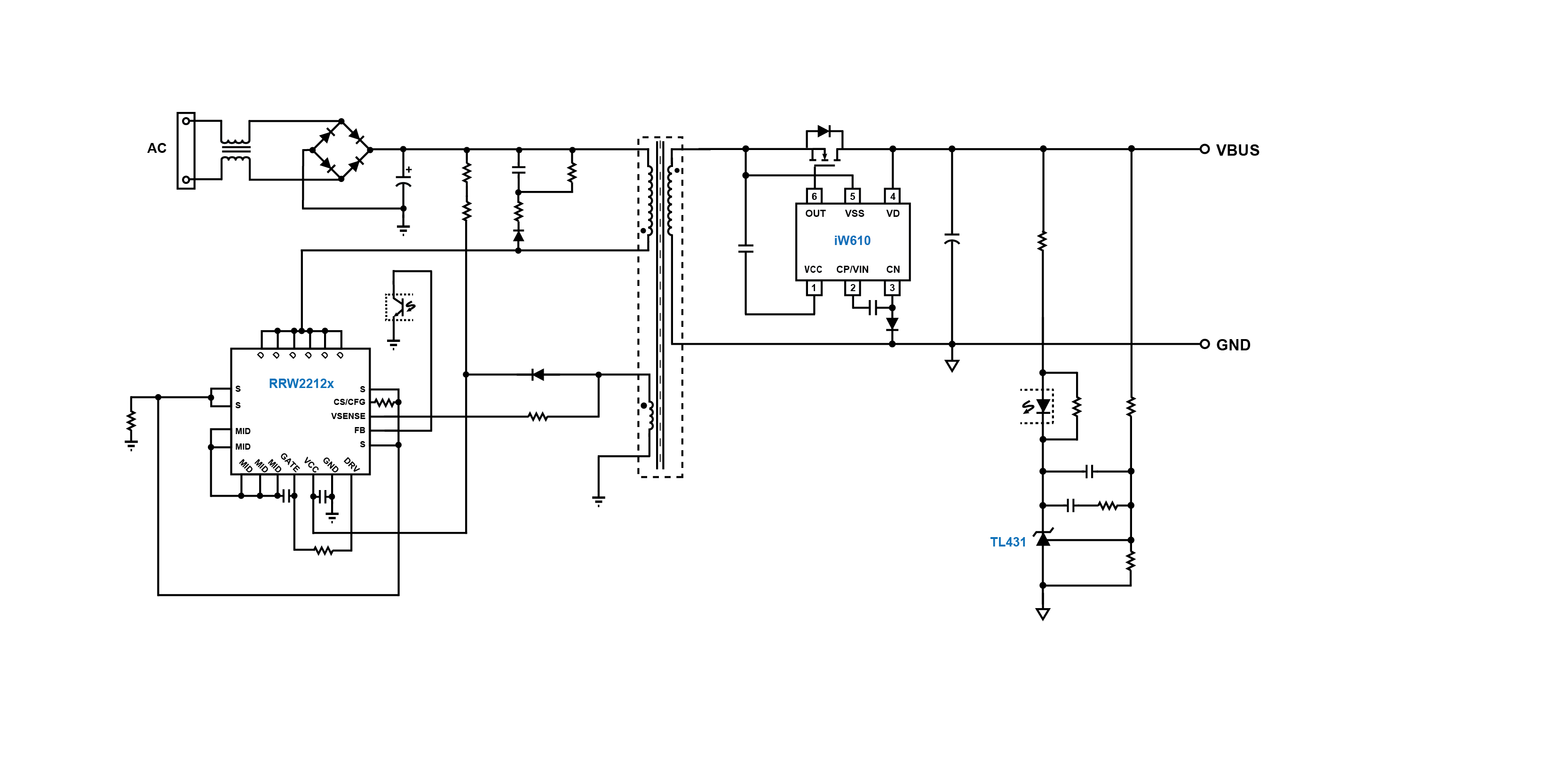

Typical RRW2212x application circuit using TL431 feedback and a top‑side synchronous rectifier driven by the iW610.

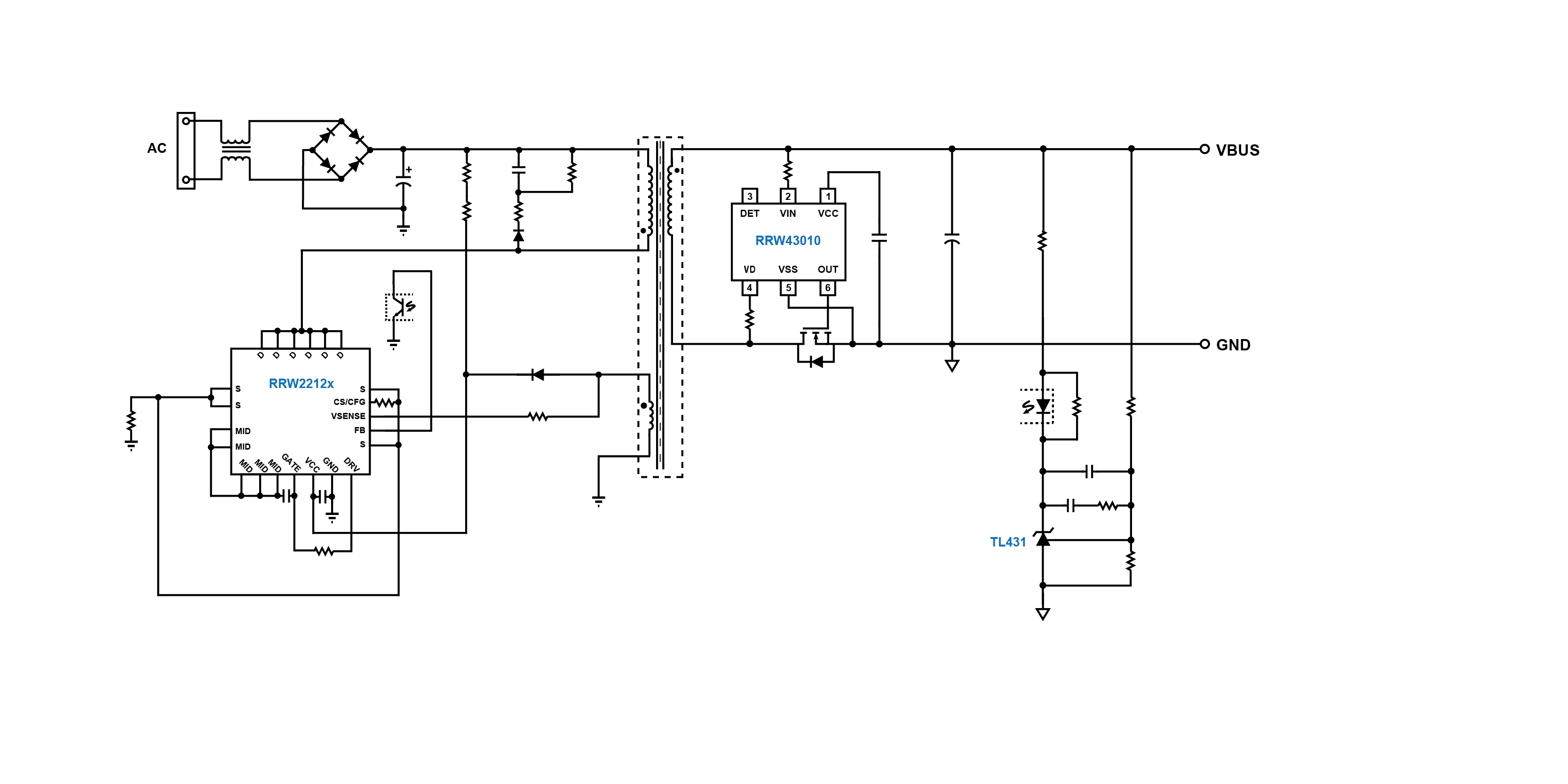

Typical RRW2212x application circuit using TL431 feedback and a bottom‑side synchronous rectifier driven by the RRW43010.
Functional block diagram of the RRW2212x showing the internal control logic, gate driver, protection circuitry, sensing paths, and signal flow between the controller, power stage, and external system interfaces.
Typical RRW2212x application circuit using TL431 feedback and a top‑side synchronous rectifier driven by the iW610.
Typical RRW2212x application circuit using TL431 feedback and a bottom‑side synchronous rectifier driven by the RRW43010.
NEW

RRW22125-153

有效
25W 至 45W 数字 AC/DC SSR 反激式 SiP 模块，集成 700V、480mΩ GaN FET
RRW2212x Datasheet有关 RRW22125 的所有信息

封装信息

CAD 模型:View CAD Model
Pkg. Type:QFN8x8
Pkg. Code:
Lead Count (#):22
Pkg. Dimensions (mm):8 x 8 x 0.85
Pitch (mm):

环境和出口类别

Moisture Sensitivity Level (MSL)3
HTS (US)8542.39.0090
RoHS (RRW22125-153)英语日文
Pb (Lead) Free
ECCN (US)

产品属性

Lead Count (#)22
Carrier TypeTape & Reel
Moisture Sensitivity Level (MSL)3
Control ModePeak Current Mode DCM/CCM
Switching Frequency (KHz)70 - 270
VBIAS (Max) (V)42
Temp. Range (°C)-40 to +150°C
Advanced FeaturesSuperGaN Integrated
ApplicationIndustrial Power, Appliances & White Goods, Network Power, Server Aux Power, PoE, TV Power, Isolated Power for Gate Drivers, Motor
Controller / IntegratedIntegrated
Country of AssemblyTAIWAN, MALAYSIA
Country of Wafer FabricationDie1:KR, Die2:JP, Die3:TW
FunctionSSR Flyback
Key FeaturesLow Cost Solution w/o Active Startup
Length (mm)8
MOQ4000
No-Load Operating Current0.7
Output Power Max (W)45
Output Voltage (Max) (V)24
Outputs (Max) (#)3
PWMs (#)1
Parametric CategoryFlyback & Forward Controllers
Pass Device
Phases (Max)Flyback & Forward Controllers
Pkg. Dimensions (mm)8 x 8 x 0.85
Pkg. TypeQFN8x8
Product CategoryFlyback & Forward Controllers
Protection FeaturesBrown-out, OTP, UVLO, Output OVP, OCP
Qualification LevelStandard
Quality LevelStandard
Simulation Model AvailableNo
Supply Voltage (max) (V)45 - 45
Thickness (mm)0.85
Topology CharacteristicPWM/PFM Flyback
UVLO Falling (V)7.5
UVLO Rising (V)15.3
Width (mm)8

描述

RRW22125 是一款系统级封装（SiP）产品，集成了 700V SuperGaN® FET 与高性能 AC/DC 初级侧数字反激式控制器，适配次级侧调节（SSR）架构。 该器件专为 25W 至 45W 适配器设计，支持配合 TL431 分流稳压器及其他第三方次级侧控制器工作，适用于广泛的终端应用领域。

该器件工作于恒频准谐振（QR）模式，并采用自适应多模式控制（MMC）技术，涵盖脉宽调制（PWM）、脉冲频率调制（PFM）以及突发模式（Burst Mode）等多种工作模式。 这种控制架构能够在各种负载条件下有效提升效率、降低电磁干扰（EMI），并消除音频噪声。

搭配 TL431 或其他次级侧控制器使用时，RRW22125 在典型大功率设计中能够实现精准恒压（CV）、快速动态负载响应，并将待机功耗控制在 75mW 以下。 其集成的保护功能以及对双极性辅助绕组检测的支持，不仅简化了变压器设计，提升了 EMI 性能，还有助于降低整体系统成本。
