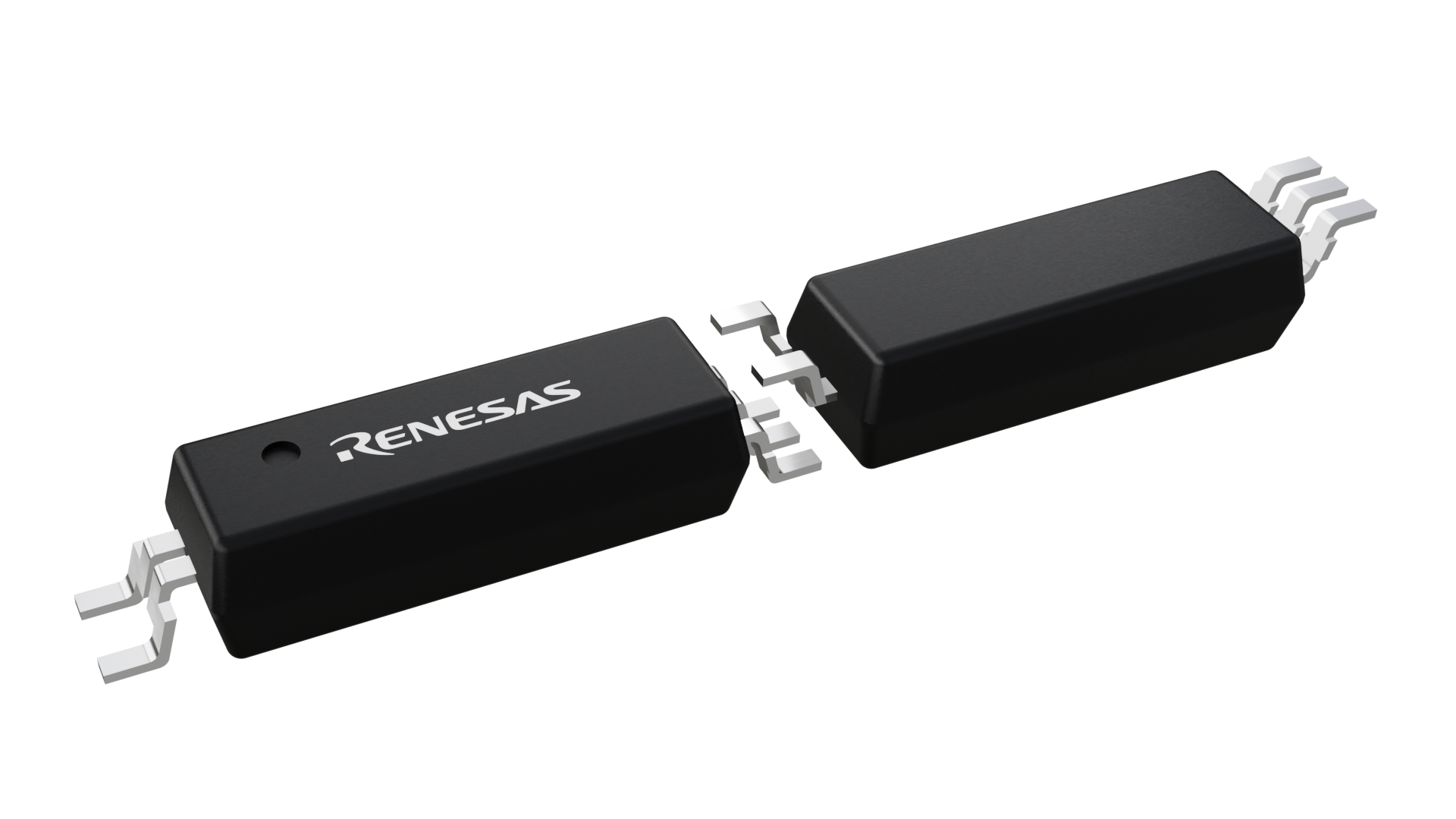

封装信息
| Lead Count (#) | 5 |
| Pkg. Code | pkg_20044 |
| Pkg. Type | SSOP |
| Pkg. Dimensions (mm) | 2.5 x 7.5 x 2.1 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8541.49.8000 |
| RoHS (RV1S9207ACCSP-10YV#SC0) | 英语日文 |
产品属性
| Lead Count (#) | 5 |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Country of Assembly | Japan |
| Country of Wafer Fabrication | Japan |
| Price (USD) | 1ku | 2.56611 |
| Breakdown Voltage (BV) (kV rms) | 5 |
| CMTI min. (kV/µs) | 50 |
| Carrier Type | Cut Tape |
| Channels (#) | 1 |
| Creepage Distance (mm) | 8.2 |
| DC IFLH max. (mA) | 5 |
| IFLH (Max) (mA) | 5 |
| IOL/IOH (Peak) (A) | 0.6 |
| Isolation Voltage (Vrms) | 5000 |
| Lead Compliant | Yes |
| Length (mm) | 2 |
| Longevity | 2030 12月 |
| MOQ | 20 |
| Peak Output Current IPK (A) | 0.6 |
| Pkg. Dimensions (mm) | 2 x 8 x 2.1 |
| Pkg. Type | SSOP |
| SW PDD max. (ns) | 80 |
| SW PWD max. (ns) | 50 |
| SW tPLH, tPHL max. (ns) | 150 |
| Safety Standard CSA (CAN/CSA C22.2 62368-1) | Approved |
| Safety Standard UL (UL1577) | Approved |
| Safety Standard VDE (EN IEC 60747-5-5) | Approved |
| Supply Voltage (V) | 10 - 30 |
| Tape & Reel | No |
| Target applications | AC Servo, Industrial inverter, Solar inverter, Uninterruptible Power Supply (UPS), IGBT Gate Driver, Power MOSFET Gate Driver |
| Thickness (mm) | 2.1 |
| VCC-VEE (Max) (V) | 35 |
| Width (mm) | 8 |
| tPHL (Max) (μs) | 0.15 |
| tPLH (Max) (μs) | 0.15 |
| tf (Typical) (µs) | 0.007 |
描述
RV1S9207A 是一款光电耦合分离器，在一个芯片的输入侧包含一个 AlGaAs LED，在输出侧包含一个光电二极管、一个信号处理电路和电源输出 MOSFET。 RV1S9207A 专门设计用于高共模瞬态抗扰度（CMR）和高开关速度。 其适用于驱动 IGBT 和 MOSFET。
