RZ/N2L Block Diagram

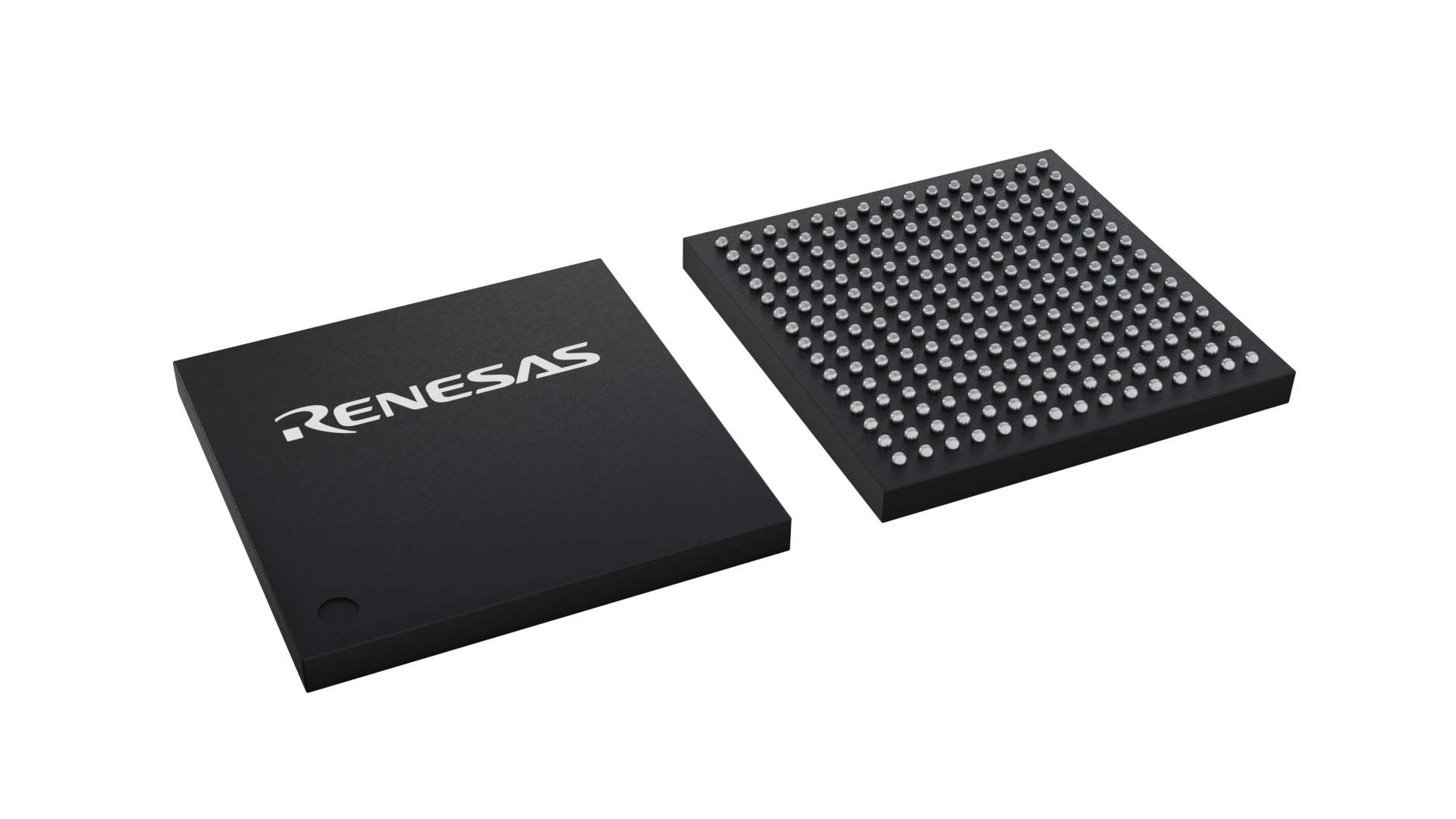

3D illustration featuring top and bottom views of LFBGA IC chip package with 225 lead count.
RZ/N2L Block Diagram
3D illustration featuring top and bottom views of LFBGA IC chip package with 225 lead count.

R9A07G084M08GBG#AC0

有效
集成TSN三端口千兆以太网交换机, 能够在各种工业应用中轻松实现工业以太网和TSN
RZ/N2L Group DatasheetRZ/N2L Group User's Manual: HardwareRenesas RZ/N2L GroupRZ/N2L Easy Download Guide有关 RZ/N2L 的所有信息

封装信息

CAD 模型: View CAD Model
Pkg. Type: LFBGA
Pkg. Code: pkg_20029
Lead Count (#): 225
Pkg. Dimensions (mm): 13 x 13 x 1.4
Pitch (mm): 0.8

环境和出口类别

Moisture Sensitivity Level (MSL) 3
ECCN (US) 3A991.a.2
HTS (US) 8542.31.0050
RoHS (R9A07G084M08GBG#AC0) 英语日文
Pb (Lead) Free Yes

产品属性

Longevity 2037 10月
Carrier Type Bulk (Tray)
Family Name RZ
Series Name RZ/N
Group Name N2L
CPU Architecture Arm
Main CPU Cortex-R52
Sub CPU No
Floating Point Unit Double/Single
Bit Length 32
Program Memory (KB) 0
Data Flash (KB) 0
RAM (KB) 1536
ECC SRAM Yes
Lead Count (#) 225
Pkg. Type LFBGA
Pitch (mm) 0.8
Pkg. Dimensions (mm) 13 x 13 x 1.4
Number of Supply Voltage(s) (#) 3
Supply Voltage (V) 3.135 - 3.465
I/O Ports 135
DMAC or DTC DMAC
DMA (ch) 16
Temperature Sensor (ch) (#) 1
Power-On Reset No
Watchdog Timer (ch) 1
External Memory Bus (bit) 8,16
DRAM I/F SDRAM
NPU No
3D GPU No
Accelerator No
MOQ 1
Temp. Range (°C) Tj = -40 to +125
External Interrupt Pins (#) 16
LVD or PVD No
Operating Freq (Max) (MHz) 400
Sub-clock (32.768 kHz) Yes
On-chip Oscillator Yes
Ethernet speed 10M/100M/1G
Ethernet (ch) 3
EtherCat (ch) (#) 1
USB Ports (#) 1
USB FS (host ch/device ch) ( 1 / 1 )
USB HS (host ch/device ch) ( 1 / 1 )
USB SS (host ch/device ch) ( 0 / 0 )
PCI Express (generation and ch) No
SCI or UART (ch) 6
SPI (ch) 4
QSPI (ch) 2
OSPI (ch) 2
I2C (#) 3
I3C (ch) 0
CAN (ch) 0
CAN-FD (ch) 2
Wireless No
IrDA No
LIN (#) 0
SDHI (ch) 0
High Resolution Output Timer No
PWM Output (pin#) 25
32-Bit Timer (ch) 20
16-Bit Timer (ch) (#) 14
8-Bit Timer (ch) 0
Standby operable timer No
Asynchronous General Purpose Timer / Interval Timer (ch) 0
RTC Yes
16-Bit A/D Converter (ch) 0
14-Bit A/D Converter (ch) 0
12-Bit A/D Converter (ch) 12
10-Bit A/D Converter (ch) 0
24-Bit Sigma-Delta A/D Converter (ch) 0
16-Bit D/A Converter (ch) 0
12-Bit D/A Converter (ch) 0
10-Bit D/A Converter (ch) (#) 0
8-Bit D/A Converter (ch) 0
Analog Comparator (ch) 0
OPAMP (ch) (#) 0
PGA (ch) 0
Capacitive Touch Sensing Unit (ch) 0
Graphics LCD Controller No
MIPI Interfaces (DSI) (ch) 0
MIPI Interfaces (CSI) (ch) 0
Camera I/F (Parallel) No
Image Codec No
2D Drawing Engine No
Segment LCD Controller No
SSI (ch) 0
Security & Encryption AES, RSA, ECC, Hash, TRNG, Secure boot, Unique ID
Debug Interface JTAG/SWD
Remarks Industrial Ethernet
Moisture Sensitivity Level (MSL) 3
Country of Assembly TAIWAN
Country of Wafer Fabrication SOUTH KOREA
12-Bit Timer (ch) 0
32-Bit High Res Timer (ch) 0
ADC 12-bit x 12-ch
Asynchronous General Purpose Timer (ch) 0
Bit Size 32
CPU Cortex-R52 x 1
DMA Yes
DTC (ch) 0
Delta-Sigma A/D Converter No
Display Function Remarks Display Function: No
Ethernet 10/100M/1G x 3 ch
Ethernet Remarks Gigabit Ethernet: 2ch or 1ch
Family Name RZ
Group Name N2L
High-Speed Analog Comparator (ch) 0
Human Machine Interface -
Lead Compliant Yes
Length (mm) 13
Low-Power Analog Comparator (ch) 0
Pb (Lead) Free Yes
Price (USD) $12.33666
SPI (#) 4
Suggested Kits RZ/N2L-RSK
Tape & Reel No
Thickness (mm) 1.4
Timer 16-bit x 8-ch, 32-bit x 18-ch, 16-bit x 6-ch, 32-bit x 2-ch
UART (#) 6
USB USB2.0 x 1 ch (1H/F/OTG)
USBFS (ch) 0
USBHS (ch) 0
Width (mm) 13

描述

RZ/N2L是一种工业以太网通信用MPU，可轻松将网络功能添加到工业设备中。它搭载支持TSN的三端口千兆以太网交换机和EtherCAT®从控制器，可支持EtherCAT、PROFINET RT/IRT、EtherNet/IP™、OPC UA等主要的工业以太网通信协议。它对网络专用配套芯片加以优化，无需大幅改变设备的内部配置即可直接连接并快速访问外部应用主机CPU。此外，Arm® Cortex®-R52的最大工作频率为400MHz，外设功能包括带 ECC 的大容量RAM与ΔΣ I/F、A/D转换器、PWM定时器、UART和CAN等，可在单个芯片上实现远程 I/O、传感器集线器、变频器和网关。
