ZMID4200 Inductive Position Sensing Starter Kit
The ZMID4201STKIT is an all-in-one starter kit, providing fully-functional evaluation of the ZMID4200 position sensor. This kit combines the linear, rotary, and arc...
特色文件:
概览
描述

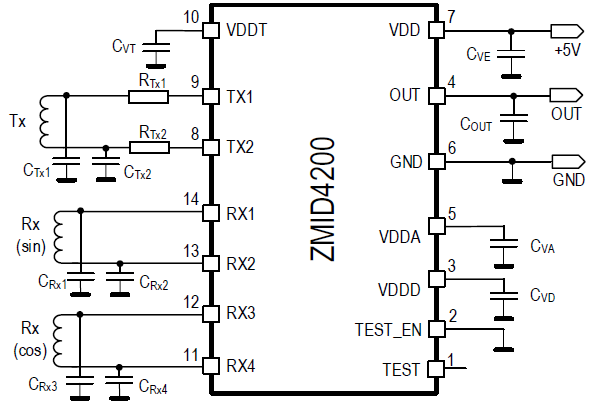

The ZMID4200 is an inductive position sensor IC with analog output, used for absolute rotary and linear motion sensing in industrial and consumer applications. The ZMID4200 uses the physical principles of induction in a wire loop and Eddy currents to detect the position of a metallic target that is sliding or rotating above a set of coils, consisting of one transmitter coil and two receiver coils. The three coils are typically printed as copper traces on a printed circuit board (PCB). They are arranged such that the transmitter coil induces a secondary voltage in the receiver coils which depends on the position of the metallic target above the coils. After demodulating and processing the secondary voltages from the receiver coils, a signal representative of the metallic target’s position over the coils is obtained. The ZMID4200 is qualified to function up to 150 °C of ambient temperature.
特性
- Inductive principle
- Rotation sensing up to a full turn of 360°
- Analog, PWM, or SENT output with programmable limits
- Overvoltage, reverse polarity, ESD, and short circuit protection
- 10-bit resolution (Analog and PWM)
- 12-bit resolution (SENT)
- Power or ground loss detection
- Facilitates redundant design requirements
- Programmable linearity correction
- Adaptive gain control supporting a wide range of coil designs
- Diagnostic features
- Overvoltage and reverse polarity protection up to ±18V

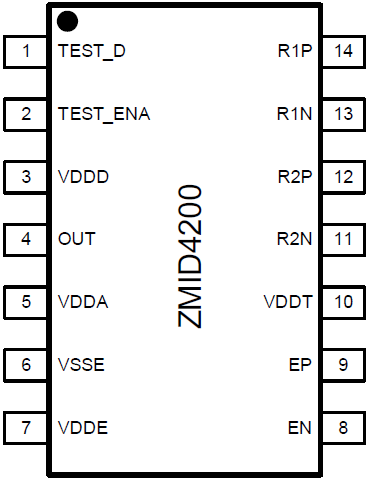

- Small 14-TSSOP package
- Qualified for industrial, medical, and consumer applications only – Not qualified for usage in automotive applications
产品对比
应用
- Rotary position sensors up to 360°; e.g. rotary actuators, potentiometer replacement
- Small-angle sensors or arc-motion sensors; e.g. pedal or valve sensors, robotics
- Linear motion sensors; e.g. linear actuators, position sensors, fluid-level sensors, slide potentiometer replacement
设计和开发
软件与工具
开发板与套件
PWM 数字输出位置传感器 Pmod 板
该款 QCIOT31 ZMID4200POCZ PWM 数字输出位置传感器 Pmod™ 板支持对 ZMID4200 PWM 转数字输出传感器进行快速原型设计，以定制系统设计。 ZMID4200 是一款具有模拟输出的电感式位置传感器 IC，用于工业和消费应用中的绝对旋转和线性运动传感。 该板为板载传感器提供标准 Pmod Type...
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
