概览
描述
The ZMID4201STKIT is an all-in-one starter kit, providing fully-functional evaluation of the ZMID4200 position sensor. This kit combines the linear, rotary, and arc types into a single kit, along with the communications board required to interface with the control software. This evaluation kit allows to select the wanted interface among Analog (default), PWM or SENT.
特性

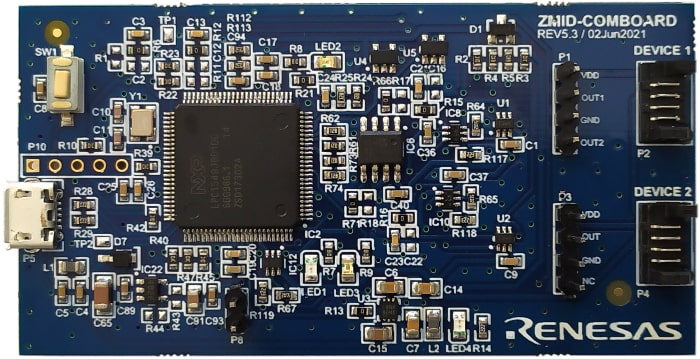

- ZMID-COMBOARD communications board
- ZMID4200 linear application module

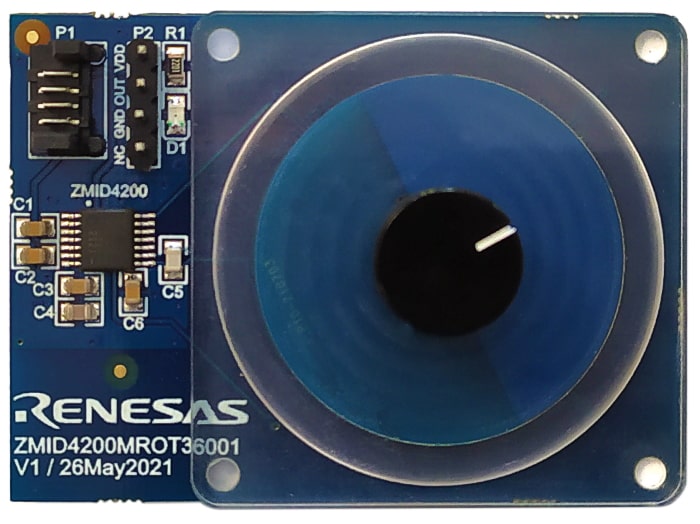

- ZMID4200 rotary application module

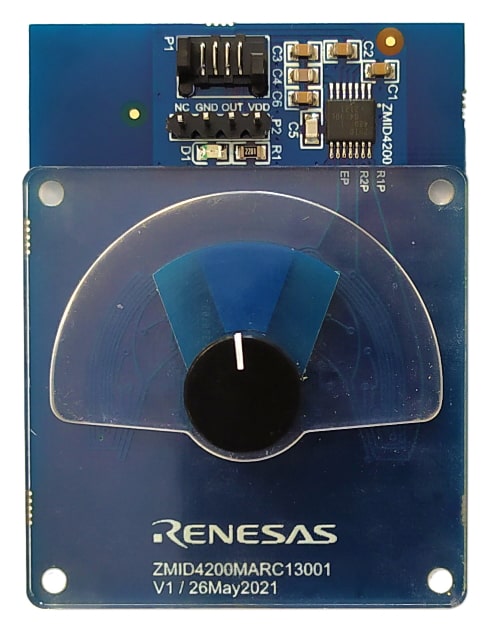

- ZMID4200 arc application module
- Micro B USB Cable
- 2 x interface cables
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 硬件 | PDF 2.85 MB | |
| 手册 - 软件 | PDF 919 KB | |
| 手册 - 硬件 | PDF 2.12 MB | |
| 手册 - 软件 | PDF 532 KB | |
| 手册 - 软件 | PDF 1.16 MB | |
| 手册 - 软件 | PDF 1004 KB | |
| 手册 - 软件 | PDF 945 KB | |
| 手册 - 软件 | PDF 1.05 MB | |
8 items
|
||
