概览
描述

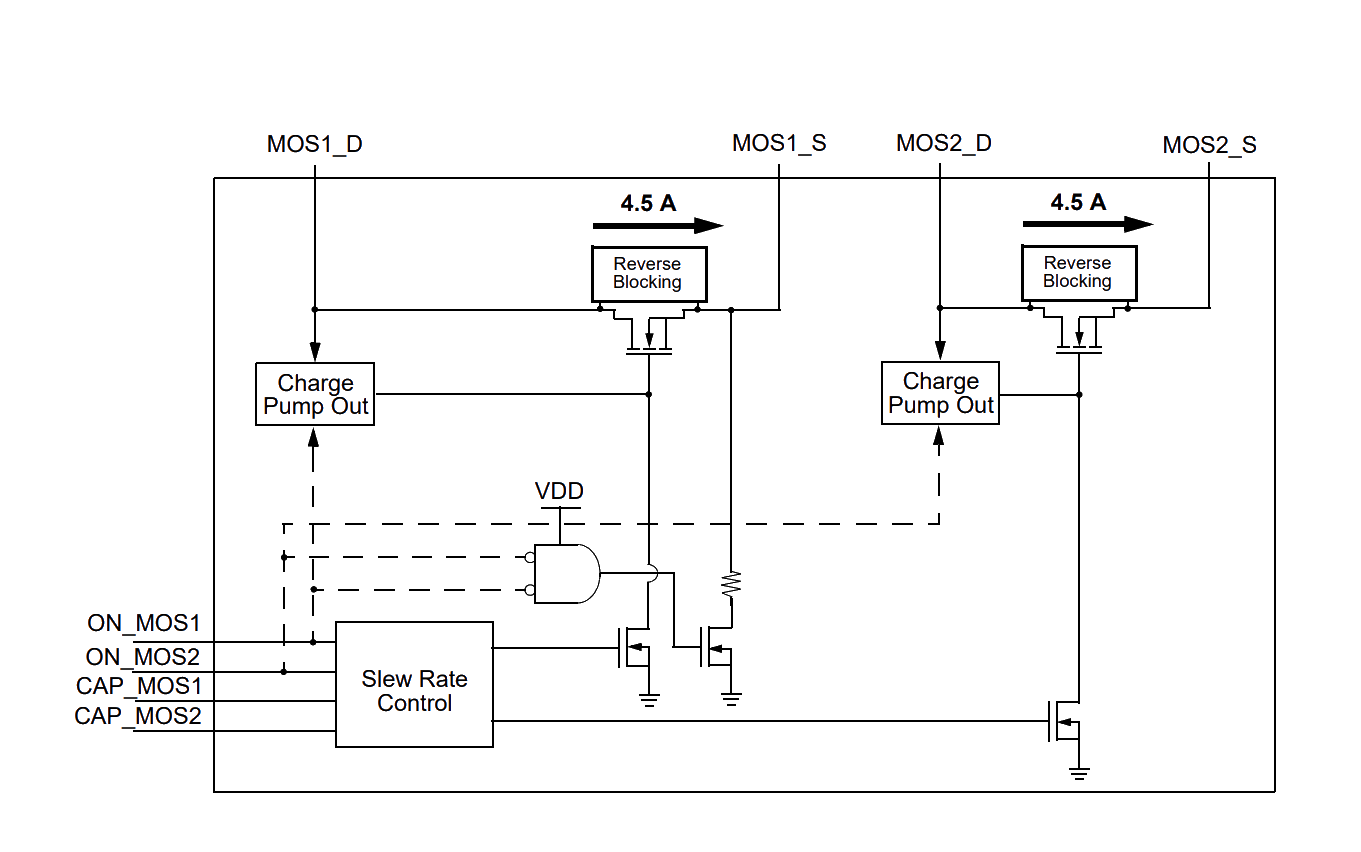

The SLG59M1612V is designed for load switching applications. The part comes with two 4.5 A rated MOSFETs switched on by two ON control pins. Each MOSFETs turn on time is independently adjusted by an external capacitor. One channel discharge is active when both ON signals are inactive.
特性
- Optimized for high-current point-of-load applications
- Power supply: 2.5 V ≤ VDD ≤ 5.5 V
- Input voltage range: 1.0 V ≤ VD ≤ VDD
- 16 mΩ RDSON while supporting 4.5 A
- Output voltage slew-rate control by external capacitor
- Over-temperature protection
- Channel 1 output discharge circuitry
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
SLG59M1612V Evaluation Board
The SLG59M1612V-EVB board evaluates the SLG59M1612V GreenFET, Dual N-Channel Load Switch.
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
Introduction to Ultra Low RDSon Load Switches
Video List
