特性
- Power supply: 2.5V ≤ VDD ≤ 5.5V
- Input voltage range: 0.85V ≤ VD ≤ VDD
- 7.8mΩ RDSON while supporting 9A
- Output voltage slew-rate control by an external capacitor
- Over-temperature protection
- Output discharge version: SLG59M1600V
描述

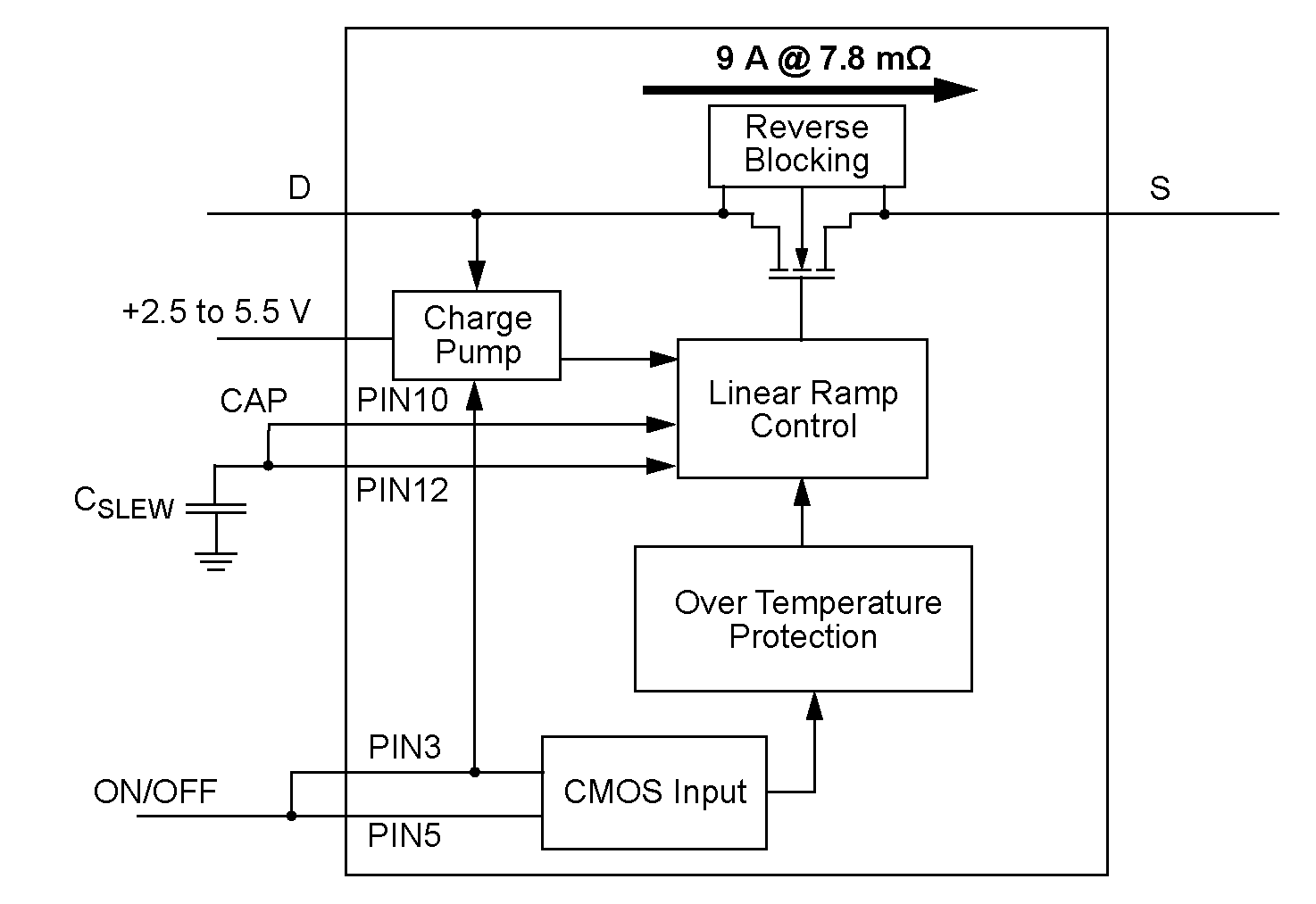

The SLG59M1655V is a high-performance 7.8mΩ nFET load switch designed for all 0.85V to 5.5V power rail applications up to 9A. Incorporating reverse-current blocking, the SLG59M1655V is uniquely suited for those power rail applications where output-to-input voltage back feed conditions are to be avoided. Using a proprietary MOSFET design, the SLG59M1655V achieves its stable 7.8mΩ RDSON across a wide input/supply voltage range. The SLG59M1655V package also exhibits low thermal resistance for high-current operation.
Fully specified over the -40 °C to 85 °C temperature range, the SLG59M1655V is packaged in a space-efficient, low thermal resistance, RoHS-compliant 1.0mm x 3.0mm STDFN package.
产品参数
| 属性 | 值 |
|---|---|
| FET Pass Device Type | Single N-Channel |
| VDD min. (V) | 2.5 |
| VDD max. (V) | 5.5 |
| VIN Channel 1 min. (V) | 0.85 |
| VIN Channel 1 max. (V) | 5.5 |
| Input Quiescent Current Channel 1, typ (µA) | 50 |
| Input Quiescent Current Channel 1, max (µA) | 100 |
| Input Quiescent Current when OFF Channel 1, typ (µA) | 0.1 |
| Input Quiescent Current when OFF Channel 1, max (µA) | 1 |
| RDSON (Typ) Channel 1 (mΩ) | 7.8 |
| IDS Channel 1 (A) | 9 |
| Enable | Active High |
| Output Voltage Slew Rate set by | Capacitor |
| Discharge Circuit | No |
| Undervoltage Protection | No |
| Over Voltage Protection | No |
| Power Good (PG), FAULT indicator | No |
| Reverse current blocking | Yes |
| Reverse voltage detection | No |
| Over Current Protection (OCP) | No |
| Short Circuit Protection | No |
| Over Temperature Protection (OTP) | Yes |
| Current Monitor Output | No |
| Internal TVS Surge Protection | No |
| Temp. Range (°C) | -40 to +85°C |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| STDFN-14 | 1.0 x 3.0 mm | 14 |
Renesas Boards & Kits
SLG59M1655V Evaluation Board
The SLG59M1655V-EVB board evaluates the SLG59M1655V GreenFET, Single N-Channel, Reverse Blocking Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
