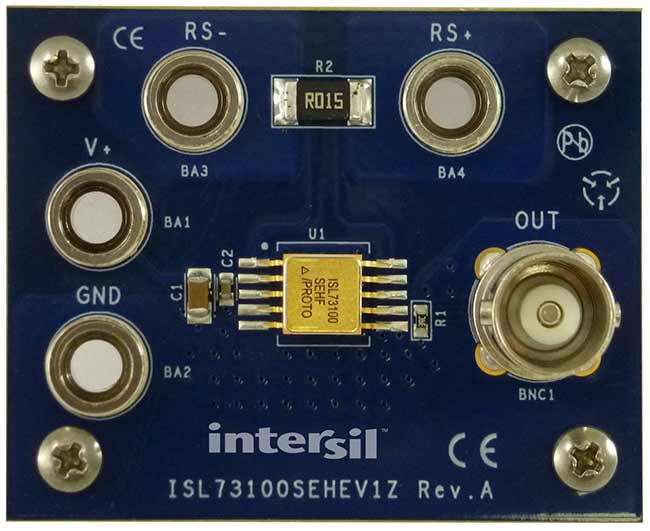

The ISL73100SEHEV1Z evaluation board is designed to evaluate the performance of the ISL70100SEH and ISL73100SEH radiation hardened 40V current sense amplifiers.
Built using the Renesas proprietary PR40 silicon-on-insulator (SOI) process, the ISL70100SEH and ISL73100SEH are trans-conductance amplifiers that monitor current using an external sense resistor and outputs a current proportional to the sensed voltage. The overall voltage gain is adjustable with a single resistor from the output to ground.
特性
- Large current-sense resistor footprint (2512)
- Easy gain configuration using a single resistor
- Kelvin sensing for improved measurement accuracy
应用
- High-side or low-side current sensing
- Battery monitoring
- Power management
- Motor control
- Command, telemetry and control system
