The ISL70003ASEH is an improved version of the ISL70003SEH regulator with both tighter load regulation (<0.3% typical) and a higher output current rating of 9A. Operating over an input voltage range of 3.0V to 13.2V with integrated low rDS(ON) MOSFETs makes this monolithic solution highly efficient. Also, a tightly regulated output voltage is possible, which is externally adjustable from 0.6V to ~90% of the input voltage. Continuous output load current capability is 9A for TJ ≤ +125 °C and 6A for TJ ≤ +150 °C. The ISL70003ASEH uses voltage mode control architecture with feed-forward and switches at a selectable frequency of 500kHz or 300kHz. Loop compensation is externally adjustable to allow for an optimum balance between stability and output dynamic performance. The device features two logic-level disable inputs that can be used to inhibit pulses on the phase (LXx) pins to maximize efficiency based on the load current. The ISL70003ASEH also supports DDR applications and contains a buffer amplifier for generating the VREF voltage. High integration, best-in-class radiation performance and a feature-filled design make the ISL70003ASEH an ideal choice to power many of today’s small form-factor applications.

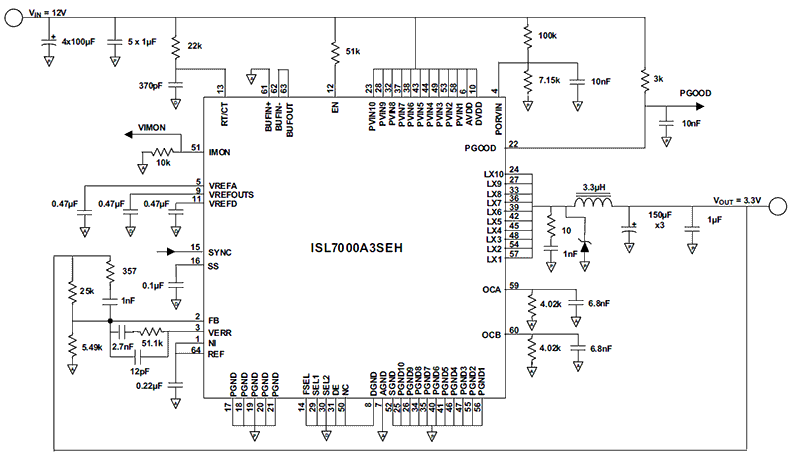

特性
- Acceptance tested to 50krad(Si) (LDR) wafer-by-wafer
- ±1% reference voltage over line, temperature, and radiation
- Integrated MOSFETs 31mΩ PFET/21mΩ NFET; 95% peak efficiency
- Externally adjustable loop compensation
- Supports DDR applications (VTT tracks VDDQ/2)
- Grounded lid eliminates charge build up
- IMON pin for output current monitoring
- Adjustable analog soft-start
- Diode emulation for increased efficiency at light loads
- 500kHz or 300kHz operating frequency
- Monotonic start-up into prebiased load
- Full military temperature range operation
- TA = -55 °C to +125 °C
- TJ = -55 °C to +150 °C
- Radiation Acceptance (See TID Report)
- High dose rate (50-300rad(Si)/s): 100krad(Si)
- Low dose rate (0.01rad(Si)/s): 50krad(Si)
- SEE hardness (See SEE report)
- SEB and SEL LETTH: 86.4MeV•cm2/mg
- SET at LET 86.4MeV•cm2/mg: < ±3% ΔVOUT
- SEFI LETTH: 60MeV•cm2/mg
- Electrically screened to DLA SMD 5962-14203
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| iSim:PE 离线模拟工具 iSim Personal Edition（iSim:PE ）可加快设计周期并降低项目早期风险，确定可用于当前和下一代设计的部件。
|
Simulator | 瑞萨电子 |
1 item
|
||
开发板与套件
评估
Rad Hard 9A Buck Regulator Evaluation Board
The ISL70003ASEHEV1Z evaluation board is designed to evaluate the performance of the ISL70003ASEH, a TID and SEE hardened 9A synchronous buck regulator IC with integrated MOSFETs intended for space applications.
The ISL70003ASEHEV1Z board accepts a nominal input voltage of 12V and provides a...
Recommended Documents:
评估
Rad Hard 9A Buck Regulator Small Form Factor Evaluation Board
The ISL70003ASEHEV2Z small form factor evaluation board is used to evaluate the performance of the ISL70003ASEH, a TID and SEE hardened 9A synchronous buck regulator IC with integrated MOSFETs intended for space applications. The board is designed to demonstrate the performance of the...
Recommended Documents:
参考设计
Renesas Radiation Hardened Power Solution for RTG4 FPGA
Over the last decade, satellites and spacecraft have seen an exponential increase in the need for onboard data processing and storage demands. Additionally, major satellite manufacturers have recently announced their latest satellites to be modular, fully digital, and capable of in-orbit...
演示
Power Management Reference Design for AMD Versal XQRVC1902
The ISLVERSALDEMO2Z demo board provides the power management for the AMD Xilinx Space Grade Versal ACAP AI Core VC1902 using Renesas' Radiation Hardened Power Management devices. The Versal ACAP system requires various supply rails, including the core, digital, analog, and DDR memory. The...
Recommended Documents:
评估
Evaluation Board for ISL73007SEH (12VIN to 3.3V-1.2V output)
The ISL73007SEHEV2Z evaluation board features the ISL73007SEH buck regulator. The IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
评估
Evaluation Board for ISL73007SEH (12VIN to 5V output)
The ISL73007SEHEV3Z evaluation board features the ISL73007SEH buck regulator. This IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
评估
Evaluation Board for ISL73007SEH (12VIN to 3.3V output)
The ISL73007SEHEVAL1Z evaluation board features the ISL73007SEH buck regulator. This IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
