封装信息
| Pkg. Code | NTG8 |
| Pitch (mm) | 0.5 |
| Lead Count (#) | 8 |
| Pkg. Type | DFN |
| Pkg. Dimensions (mm) | 2.0 x 2.0 x 0.75 |
环境和出口类别
| ECCN | NLR |
| HTSUS | 8542310001 |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
产品属性
| Carrier Type | Reel |
| Lead Count (#) | 8 |
| Length (mm) | 2 |
| MOQ | 2500 |
| Moisture Sensitivity Level (MSL) | 1 |
| Package Area (mm²) | 4.0 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 2.0 x 2.0 x 0.75 |
| Pkg. Type | DFN |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 2500 |
| Reel Size (in) | 7 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | Yes |
| Temp. Range | 0 to 85°C |
| Thickness (mm) | 0.75 |
| Width (mm) | 2 |
描述

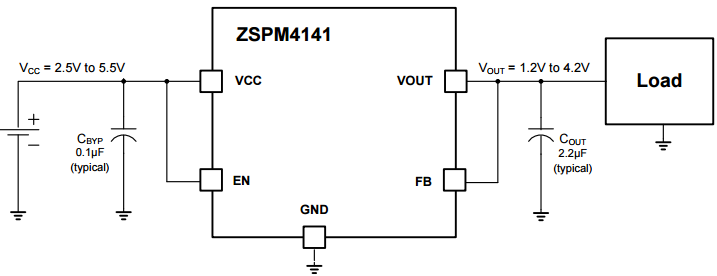

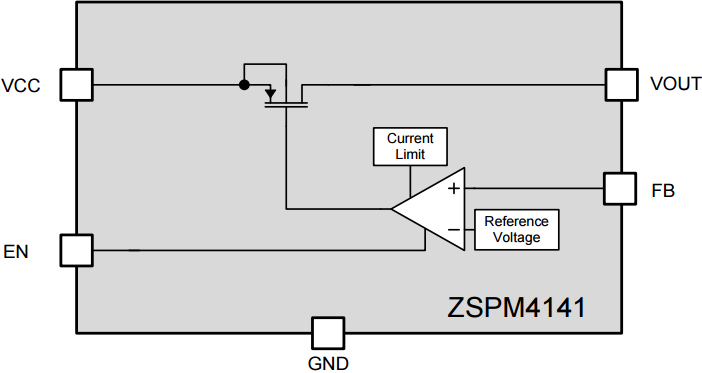

The ZSPM4141 is an ultra-low-power linear regulator optimized for minimal quiescent current losses via advanced, proprietary technology. It can improve energy efficiency and reduce heat due to power dissipation because it draws low nA-level quiescent current for light loads, yet it can regulate current loads as high as 200mA. The linear regulated output voltage is factory-configured to an option from 1.2V to 4.2V in 100mV steps. The ZSPM4141 also provides over-current protection.
