E6000 (Discontinued product)

Discontinued

仿真器

该软件/工具已停产

如有任何问题，请联系技术支持。

概览

Support for this product is limited to customers who have already adopted these products.

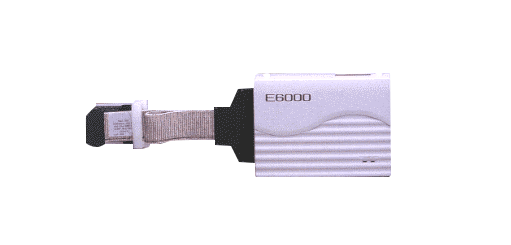

E6000
  • Zero wait-state real-time emulation
  • Emulation memory 4M bytes, which can be mapped in 64 byte blocks into the target processor's address space
  • 256 PC Breakpoints
  • Up to 12 hardware breakpoints using the event and range channels in the Complex Event System (CES)
  • Up to 32K cycles Trace Buffer, which can be stopped and read during program execution
  • Trace buffer acquisition filtering using the CES
  • Execution time measurement of total time, or relative time, with a resolution between 20ns and 16us
  • 4 user logic probes which can be used as CES trigger events
  • Automatic tracking of the target system supply voltage, to ensure that the emulator draws no power
  • Multiple target clock selection
  • Windows software supplied as standard
  • No need to remove the casing to connect to target
  • Learn more

Tool News
Operating Environment

下载

文档

支持

支持社区

支持社区

在线询问瑞萨电子工程社群的技术人员，快速获得技术支持。
获取支持
浏览文章

知识库

浏览我们的知识库，获取文章、常见问题解答及其他实用资源。
浏览文章
提交工单

提交工单

需要咨询技术性问题或提供非公开信息吗？
提交工单

Additional Details

Specifications

ItemDescription
Break
  • Hardware Break
    • Up to 12 sequential points, max. 8 level shared with Trace Trigger
  • Software Break (Max. 256 points)
  • On-chip Break (1 point)
  • Force Break
Trace
  • Realtime Trace (32k cycle)
  • Trigger Point
    • Up to 12 sequential points, max. 8 level shared with Trace Trigger
  • Specified Condition Trace
  • Point-to-point Trace
  • Subroutine Trace
  • Cycle time Stamp
Parallel AccessMemory in User Program running, Reference/Modification of Internal I/O
Performance Analysis
  • Time measurement of specified event to event
  • Time measurement of specified Address
  • Time measurement of specified Address range
  • Area Access count Measurement
  • Call count Measurement of specified event to event
Size (mm)219x170x54

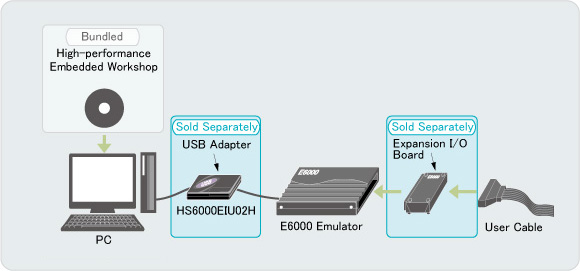

System Configuration

E6000-sys

Note: An example of a target device H8S/2100 series. Refer to Information on Accessories for Connecting an Emulator to the System (PDF | English, 日本語) for the details.

Product Lineups

Supported MCUsE6000 Emulator Note1Successors
FamiliesSeriesGroups
SHSH7050-HS7050EPI60H-
SH7040-HS7040EPI60H
SH7010-HS7010EPI60H
HS7040REPI60H
H8SH8S/2600H8S/2678R, H8S/2678, H8S/2668HS2678REPI61H-
H8S/2655HS2655EPI61H-
H8S/2648, H8S/2646, H8S/2639, H8S/2638, H8S/2636, H8S/2635, H8S/2630, H8S/2607HS2646EPI61H-
H8S/2643, H8S/2633HS2633REPI61H-
H8S/2628, H8S/2615, H8S/2604HS2628EPI61H-
H8S/2612, H8S/2602HS2612EPI61H-
H8S/2500H8S/2552, H8S/2556, H8S/2506HS2556EPI62H-
H8S/2300H8S/2398, H8S/2350, H8S/2355, H8S/2357, H8S/2345HS2655EPI61H-
H8S/2378R, H8S/2378, H8S/2368HS2678REPI61H-
H8S/2339, H8S/2329, H8S/2319HS2339EPI61H-
H8S/2200H8S/2282HS2646EPI61H-
H8S/2264, H8S/2268HS2268EPI61H-
H8S/2258, H8S/2238R/B, H8S/2237, H8S/2227HS2633REPI61H-
H8S/2245HS2655EPI61H-
H8S/2239, H8S/2212, H8S/2214, H8S/2215, H8S/2218HS2214EPI62H-
H8S/2100H8S/2168HS2168EPI61H-
H8S/2148, H8S/2144, H8S/2144B, H8S/2140B, H8S/2138, H8S/2134, H8S/2134B, H8S/2128, H8S/2124, H8S/2110B, H8S/2111BHS2140EPI61H-
H8S/2600-HS2633EPI61HHS2633REPI61H
-HS2655EPI60HHS2655EPI61H
-HS2678EPI61HHS2678REPI61H
H8S/2500-HS2556EPI61HHS2556EPI62H
H8S/2300-HS2678EPI61HHS2678REPI61H
-HS2655EPI60HHS2655EPI61H
-HS2338EPI61HHS2339EPI61H
H8S/2200-HS2633EPI61HHS2633REPI61H
-HS2214EPI61HHS2214EPI62H
-HS2655EPI60HHS2655EPI61H
H8S/2100-HS2148EPI61H
HS2148EPI60H
HS2195EPI60H		HS2140EPI61H
H8H8/300H TinyH8/36064G, H8/36077, H8/36079, H8/36912G, H8/36902G, H8/36109, H8/36094, H8/36087, H8/36057, H8/36049, H8/36037, H8/36024, H8/36014, H8/3694, H8/3687, H8/3672, H8/3664N, H8/3664HS3664EPI62H (with USB IF)-
H8/300L Super Low PowerH8/38002S, H8/38447, H8/38427, H8/3887, H8/3867, H8/3847R, H8/3847S, H8/3827R, H8/3827S, H8/38024, H8/38024S, H8/38024R, H8/38004, H8/3802HS38000EPI61H
(with USB IF)		-
H8/300H-HS3067EPI62H
HS3067EPI60H
HS3064BEPI61H Note2
HS3052EPI61H Note2		-
H8/300H Tiny-HS3664EPI61HHS3664EPI62H
H8/300-HS3008EPI60H-
H8/300L Super Low Power-HS3800EPI60H
HS388REPI60H
HS3880EPI60H		HS38000EPI61H
H8/300L-HS3L08EPI60H
HS3644EIP60H		-
AE*See the product page for the detailsHS0AE4XEPI61H

Notes:

  1. See  the documents for each product number.
  2. H8/3048 or H8/3052B is available for either HS3064BEPI61H or HS3052EPI61H.
