概览
描述
This is an Emulation Adapter for RH850 Family. Using with the separately available exchange adapter, it enables emulation of the target MCU you are using.
特性
- Connecting an emulator which supports Aurora tracing Note, such as the IE850A emulator from Renesas, to the emulation adapter enables debugging with the use of a tracing facility.
- Using the attached 34-pin to 14-pin conversion connector enables connection of the E2 emulator from Renesas.
- The combination of the emulation adapter connected to the base board included in the package is usable as an evaluation board for the target MCU.
Note
- Aurora is a high-speed communications protocol from Xilinx Inc. but is not supported by the E2 emulator.
目标设备
支持
Additional Details
Specifications
| Item | Description |
|---|---|
| Emulator supported | E2、IE850A、various emulators from Renesas Partners |
| Target MCUs | RH850/U2A16, RH850/U2A8, RH850/U2A6 |
| User system connection | Connected to the connecter mounted on the foot pattern of the MCU via an adapter. |
| External dimensions | Emulation adapter：47mm×47mm Base board：100mm×120mm |
| Weight | Emulation adapter：20g Base board：72g |
| Conformance with overseas standards | EU：EN55032 Class A, EN55024 USA：FCC part 15 Class A |
Components
- Emulation adapter
- Base board
- 34-pin to 14-pin conversion adapter
- Power-supply cable

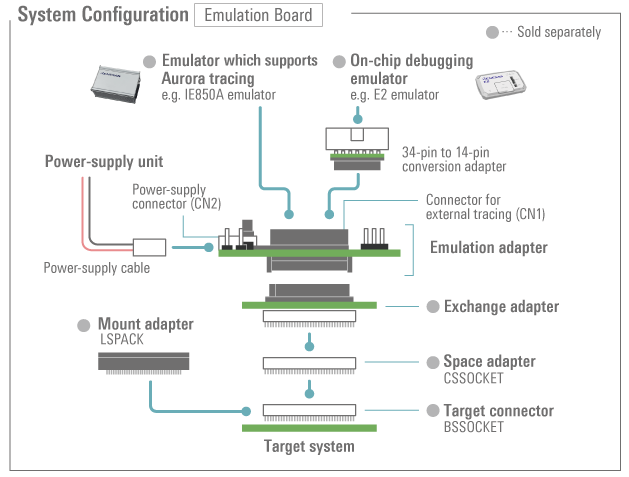

Connecting the Emulation Adapter to a User System
图像
When designing a user system refer to the following descriptions in the Emulation Adapter for the RH850/U2A User's Manual (PDF | English, 日本語) Emulation Adapter for the RH850/U2A.
- External dimension
- The specifications of the exchange adapters
For other optional products than the emulation adapter, refer to the users manual.

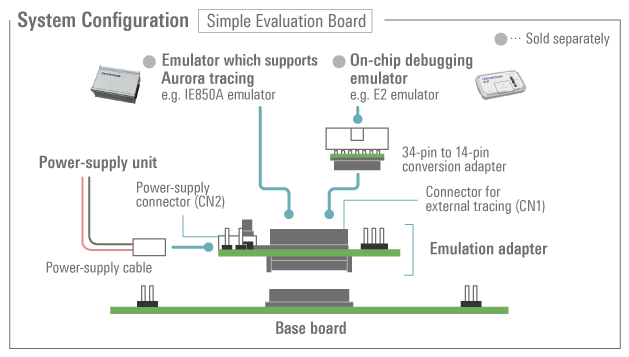

Connecting the Emulation Adapter as an Evaluation Board
图像
