IECUBE

infoAdditional Details

Lineup

IECUBE for RL78

图像

IECUBE for 78K0R

图像

IECUBE for 78K0

图像

IECUBE for 78K0S

图像

IECUBE for V850 (Discontinued product)

图像

Components

• Emulator main unit (IECUBE)
• Softeware CD-ROM (USB driver is included.)
• USB interface cable
• User's Manuals

Note: For development work, a power supply adapter and options such as probe or socket compatible with the target device, all sold separately, are required.

Optional Products (Sold Separately)

• Emulation Probe
• Exchange Adapter
• Space Adapter
• YQ Connector
• Target Connector
• Mount Adapter
  Optional product list of IECUBE for RL78 family (PDF | English, 日本語)
  Optional product list of IECUBE for 78K0R (PDF | English, 日本語)
  Optional product list of IECUBE for 78K0 (PDF | English, 日本語)
  Optional product list of IECUBE for 78K0S (PDF | English, 日本語)
  Optional product list of IECUBE for V850 (PDF | English, 日本語)

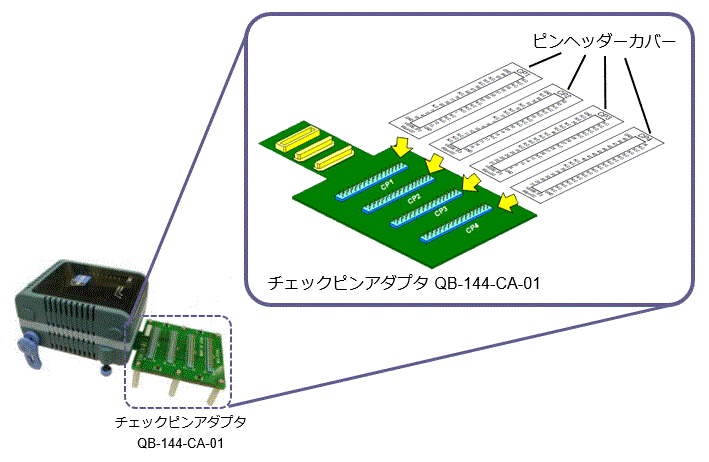

• Check pin adapter Drawings of QB-144-CA-01 (PDF)
  * Usable in common with RL78, 78K0R, 78K0, 78K0S, V850.
  The pin header cover corresponded to the pin arrangement of the MCU is required. You can get the pin header cover package from the following package list. Please print the package and cut out the pin header cover for using.
  Package list of pin header cover (PDF | English, 日本語)
  Usage of Pin Header Cover
• Power Supply Adapter
  Specifications of the power supply adapter, QB-COMMON-PW-xx, vary depending on the region. Be sure to use an adapter designed for your region.

Target Devices

• RL78 Family
• 78K0R
• 78K0
• 78K0S
• V850 (IECUBE for V850 is a discontinued product.)
