Porting from PM+ to the e² studio

Migrating between Integrated Development Environments

• Overview
• |
• Existing Project to New e² studio Project
• |
• Existing Source Files to New e² studio Project

Projects that have been created using PM+ can be ported to the e² studio environment in either of the following ways.

• Convert an existing project to create a new project with CS+, and then convert the project to a new e² studio project
• Create a new project in e² studio and register existing source files

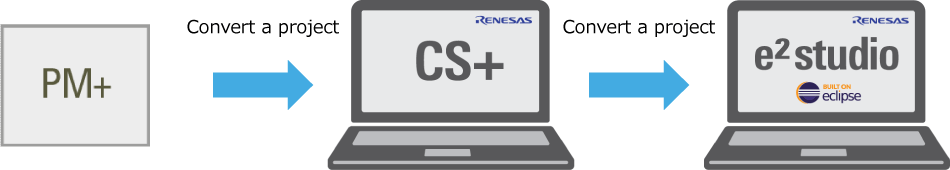

Direct conversion of projects for PM+ into projects for the e² studio is not possible.

Use the function for converting projects for use with CS+ to convert the project into a CS+ project for the given microcontroller, and then importing project it to the e² studio.

1. Click on [File] -> [New] -> [C Project] in order from the menu bar of the e² studio and create a new C project. This launches the wizard for creating a new project shown right.

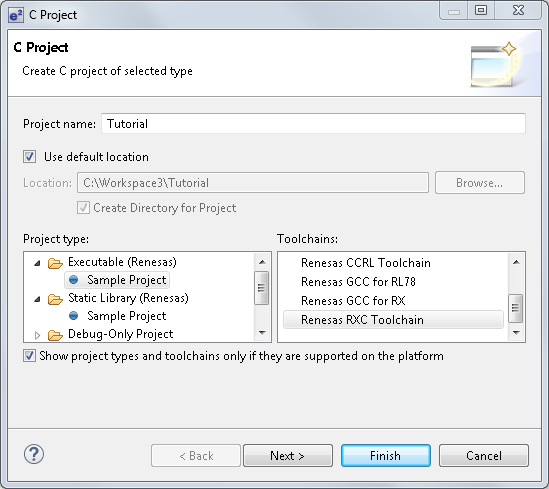

2. Enter the project name in the dialog box and select the toolchain. Click on [Next >].

图像

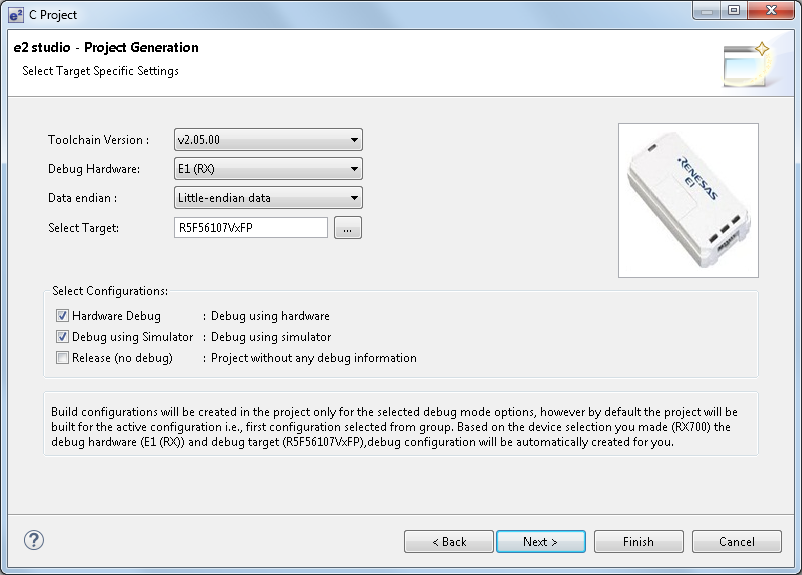

3. Specify [Toolchain Version], [Debug Hardware], and [Select Target] and click on [Next >] to go to the next step.

图像

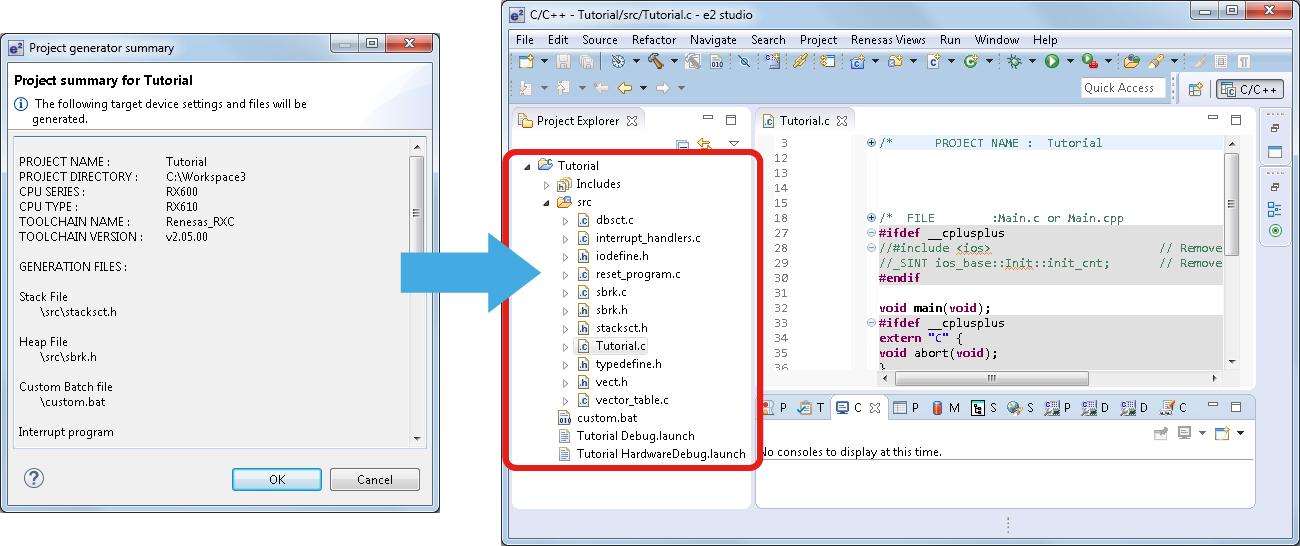

4. Click on the [Finish] button after setting the required options. This produces a window [Project summary for Tutorial]. Click on [OK] and a project is generated and displayed in the e² studio as in the example on the right.

图像

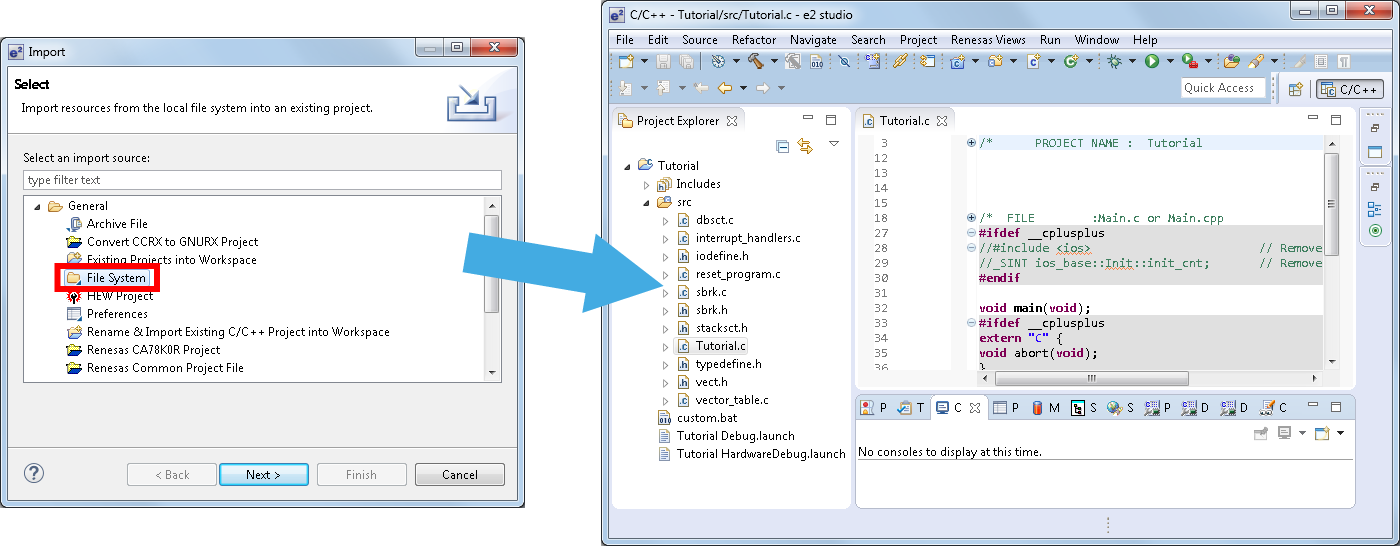

5. Select [Import…] -> [File System] to add an existing source file to the project. It is also possible to add new folders or files of source code from [File] -> [New].

图像
