RH850 基于模型的开发环境 [Embedded Target for RH850 Virtual Platform]

基于模型的开发

概览

Topics
[Upgrade to Version] RH850/F1KM Model based development Embedded Target for RH850/F1KM Virtual Platform V2.00.00 (PDF | English, 日本語)

Embedded Target for RH850 Virtual Platform是一种开发环境，允许用户从Simulink®模型生成目标设备的外设代码，可在Simulink和虚拟环境中执行协同验证vHILS(Virtual Hardware In the Loop Simulation)。

本产品可实现以下功能：

  • 除了从Simulink模型生成算法部分的代码之外，它还可生成外设代码，故而即使用户不熟悉设备规格也能选定设备和进行试作，可轻松实施包括外设功能在内的应用程序运行确认和性能评估。
  • 由于利用虚拟环境，可在设备完成WS之前进行早期验证，并且无需实机即可进行验证。

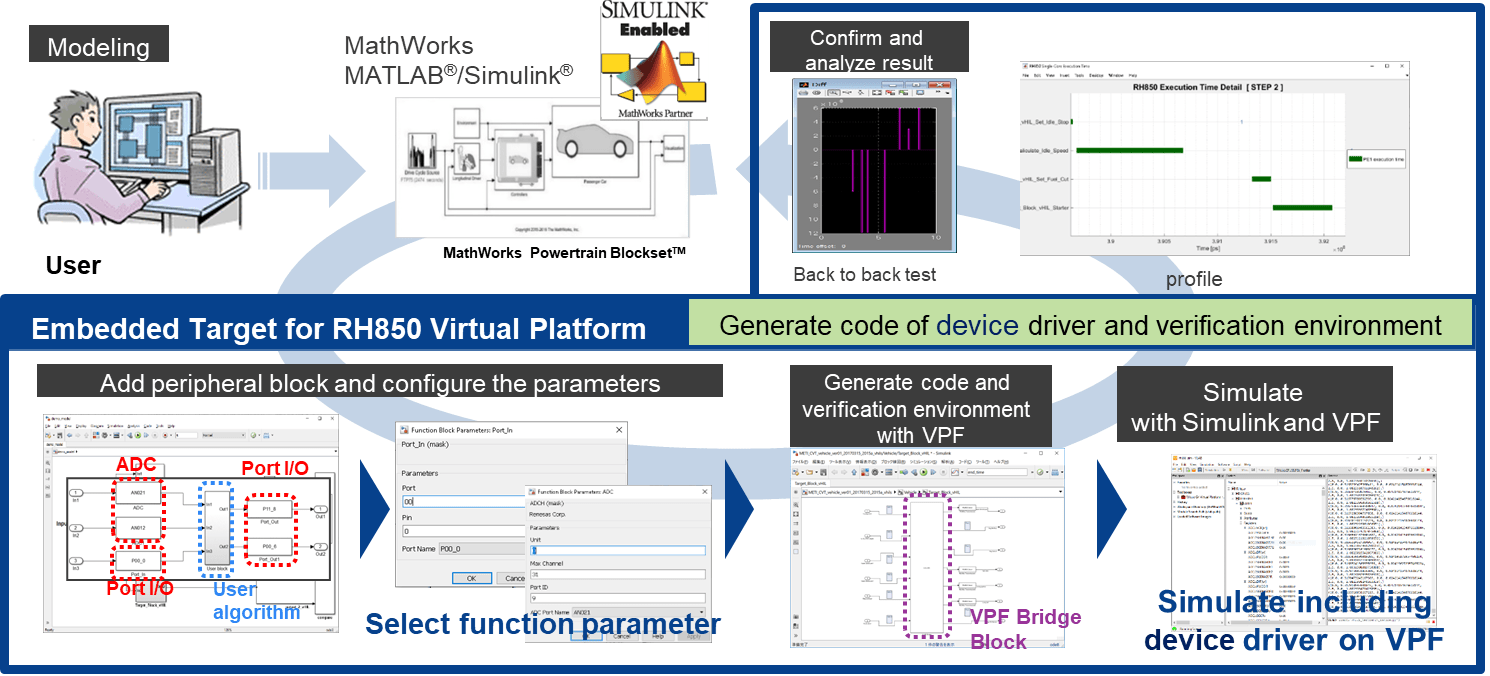

Embedded Target for RH850 Virtual Platform
Embedded Target for RH850 Virtual Platform

  • Peripheral code is generated by adding blocks corresponding to the peripheral functions of the device to the model. The supported peripheral functions are as follows.

    DevicesPeripheral functions
    RH850/U2B, RH850/F1KM-S1, RH850/F1KM-S4Port, ADC, CAN, UART, PWM
    R-Car S4, R-Car V4HGPIO, CAN, Ethernet
  • It automatically builds a vHILS verification environment using a virtual environment and enables verification of the cooperation between Simulink® and the virtual environment.
  • A comparison of vHILS and the Model In the Loop Simulation (MILS) execution results enables back-to-back testing as recommended by ISO 26262.
  • For RH850/F1KM V2.00.00 works with the following tools to generate RTE, BSW, and MCAL code that conforms to the AUTOSAR specification.
    　- MICROSAR, DaVinci Developer, DaVinci Configurator Pro by Vector
    　- MCAL by Renesas

All trademarks are the property of their respective owners.

Latest Ver.: V1.00.00
Released: Dec 16, 2022
Release information (See Tool News)
Operating Environment

Type of License

Annual license, i.e. a license with a one-year expiry period. Contact your nearest Renesas distributor with regard to purchasing products.
