[Upgrade to Revision] Solution Toolkit QE for AFE V2.3.0: Development Assistance Tool for Analog Front End
(PDF | English, 日本語)
- Standalone version of Workflow View support
- Improved origin value setting of AFE monitor view
- Supports high-speed sampling settings (RA Family)
QE for AFE is a development assistance tool that supports the development of embedded systems that handle high-precision sensing by using MCUs that include an analog front end (AFE).
This product is available free of charge.
特性
- GUI configuration of the AFE-related registers
- Functionality to display the AD conversion result (time waveform and histogram)
- Functionality to display frequency characteristics for digital filters
- The tool is available in both a stand-alone version and as an e² studio plug-in
- The stand-alone tool and e² studio plug-in can be used to share the results of tuning analog circuits through register-setting files
- The stand-alone tool is capable of tuning analog circuits and acquiring the results of tuning
We recommend this version of the tool for hardware engineers. - The e² studio plug-in is capable of tuning analog circuits and generating source code that reflects the results of tuning
We recommend the plug-in for software engineers. - Learn More
发布信息
| Product Name | Latest Ver. | Released | Target Device | Details | Download | Operating Environment |
|---|---|---|---|---|---|---|
| QE for AFE | V2.3.0 | Jan 20, 2025 | RA Family RX Family | See Release Note | Download | Operating Environment |
Note: For detailed support devices, refer to "Target Devices".
目标设备
设计和开发
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 |
[Software=RA Flexible Software Package|v5.6.0],[Toolchains=GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
15.16 MB
日本語
应用:
工业
Compiler:
GNU ARM Embedded
Function:
Analog, Application Example, Communication Interface
IDE:
e2 studio
|
|
| 示例代码 |
[Software=RA Flexible Software Package|v5.6.0],[Toolchains=GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
10.06 MB
日本語
应用:
医疗与保健, 可穿戴设备
Compiler:
GNU ARM Embedded
Function:
Analog, Communication Interface
IDE:
e2 studio
|
|
| 示例代码 |
ZIP
7.43 MB
应用:
工业
Function:
Analog
|
|
| 示例代码 |
[Toolchains=CC-RX|V3.05.00]
ZIP
7.37 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Evaluation Kit
IDE:
CS+ for CC, e2 studio
|
|
| 示例代码 | ZIP 5.51 MB 日本語 | |
5 items
|
||
相关评估板和套件
评估
EK-RA2A2
有效
RA2A2 MCU产品组评估套件
EK-RA2A2 评估套件使用户能够轻松评估 RA2A2 MCU产品组的功能，并使用瑞萨电子的 灵活软件包 （FSP） 和 e2 studio IDE 开发嵌入式系统应用。 用户可利用丰富的板载功能，以及选择热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
Recommended Documents:
入门
瑞萨电子 RX23E-B 解决方案入门套件
瑞萨电子 RX23E-B 解决方案入门套件是一款评估工具，专为使用 RX23E-B 32 位微控制器 (MCU) 进行传感器测量而设计。 该套件包括一个 RX23E-B MCU 评估板，配备了用于传感器测量的外设和软件（可在网站下载）。 购买套件后，即可立即开始模拟特性的测定。 该套件使开发人员能够缩短开发时间，从而更快地将产品推向市场。 RX23E-B 微控制器集成了高精度模拟前端 (AFE)，是工业传感器设备的理想选择。 此款 32 位 MCU 配备最大数据速率为 125kSPS 的高速 24 位 Delta Sigma 模/数转换器和 16...
Recommended Documents:
评估
EK-RA2A1
有效
RA2A1 MCU 群组评估套件
EK-RA2A1 评估套件可通过瑞萨电子的灵活配置软件包 (FSP) 和各种 IDE，帮助用户对 RA2A1 MCU 群组的特性轻松进行评估，并对嵌入系统应用程序进行开发。
入门
运行快速入门示例项目
- EK-RA2A1 板已经预先烧录了快速入门示例项目（在“下载”页面中提供了示例项目）。
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过 USB 调试端口 (J11) 启动 EK-RA2A1 板。绿色电源 LED 灯将会亮起。
- 快速入门示例项目将开始运行，红色用户 LED 灯将开始闪烁。
- 请参见 EK-RA2A1...
Recommended Documents:
视频和培训
QE for AFE Tutorial: Preparing AFE Adjustment
This video describes the procedure for writing the AFE adjustment program and connecting to the PC.
Video List
Additional Details
Features
QE for AFE connects with an EK-RA2A1 board via USB serial communication to configure AFE registers on the RA2A1 MCU, check the operations, and display the A/D conversion results.

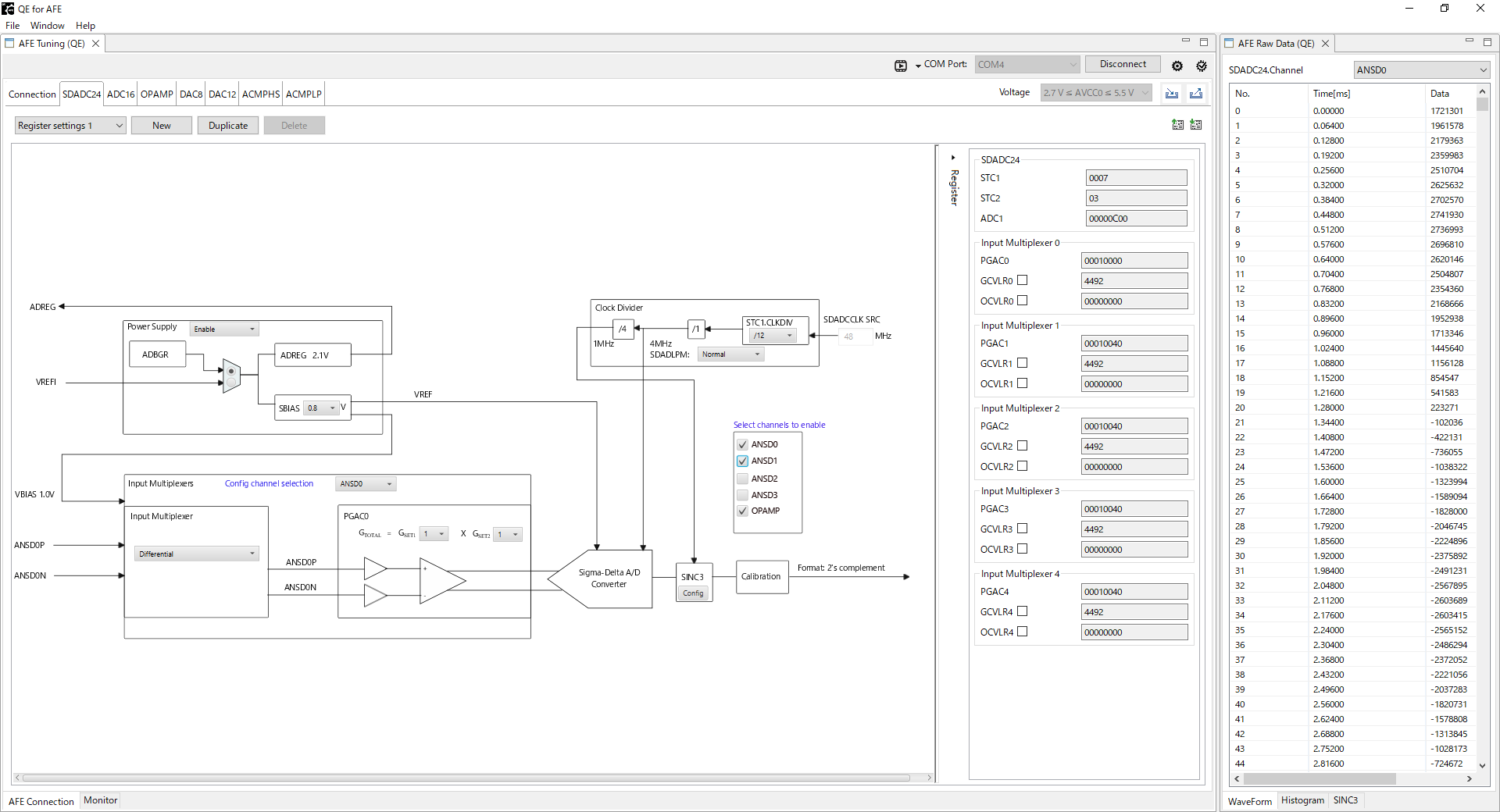

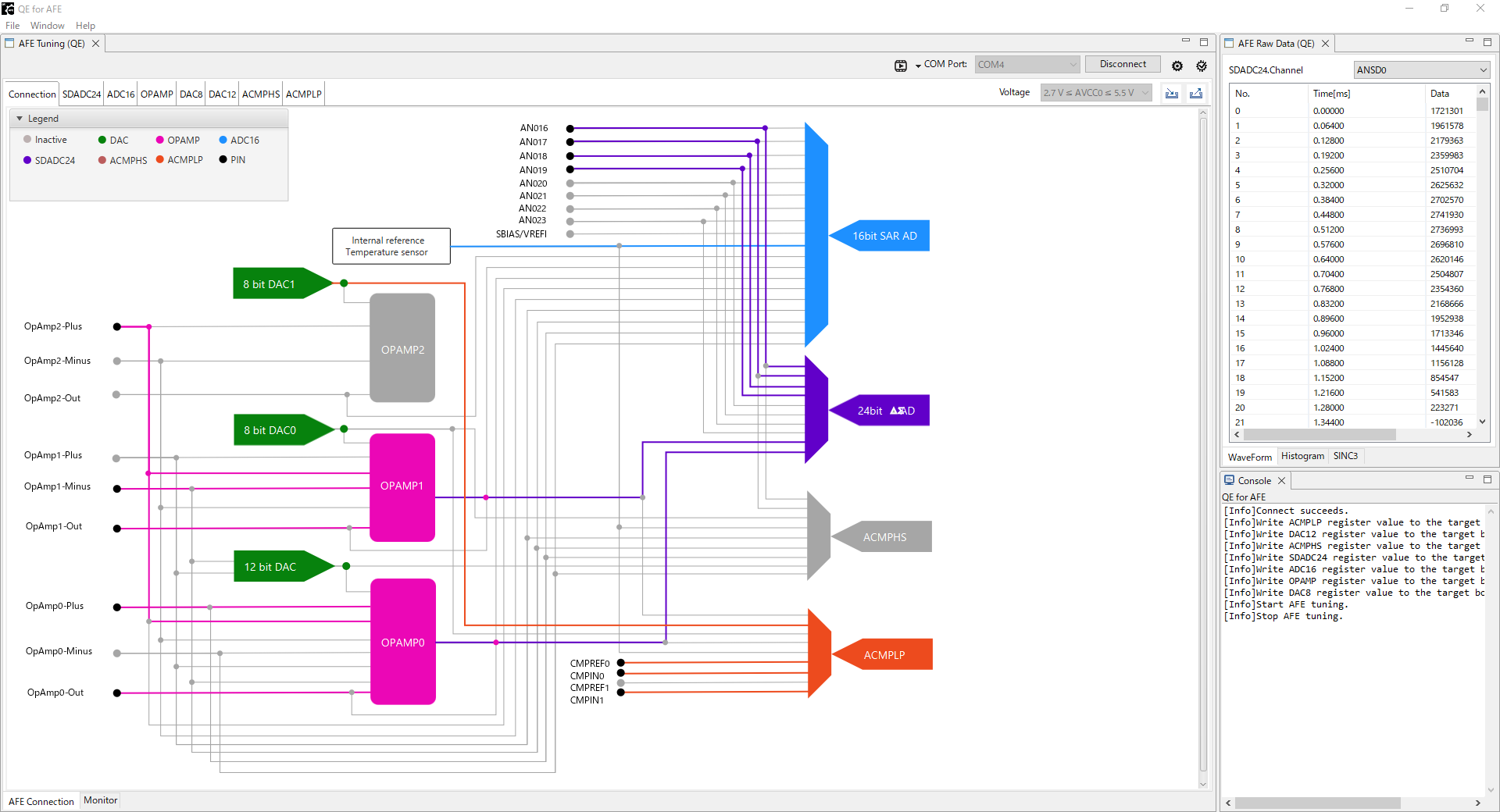

GUI configuration of the AFE-related registers
The AFE-related registers including connection with analog IPs and PGA gain settings can be configured with a graphical user interface. Through serial communication with the evaluation board via USB, you can check connection with the evaluation board, acquire and configure register values, start an A/D conversion, and acquire the A/D conversion value (A/D conversion is performed in serial scan mode).
图像
图像

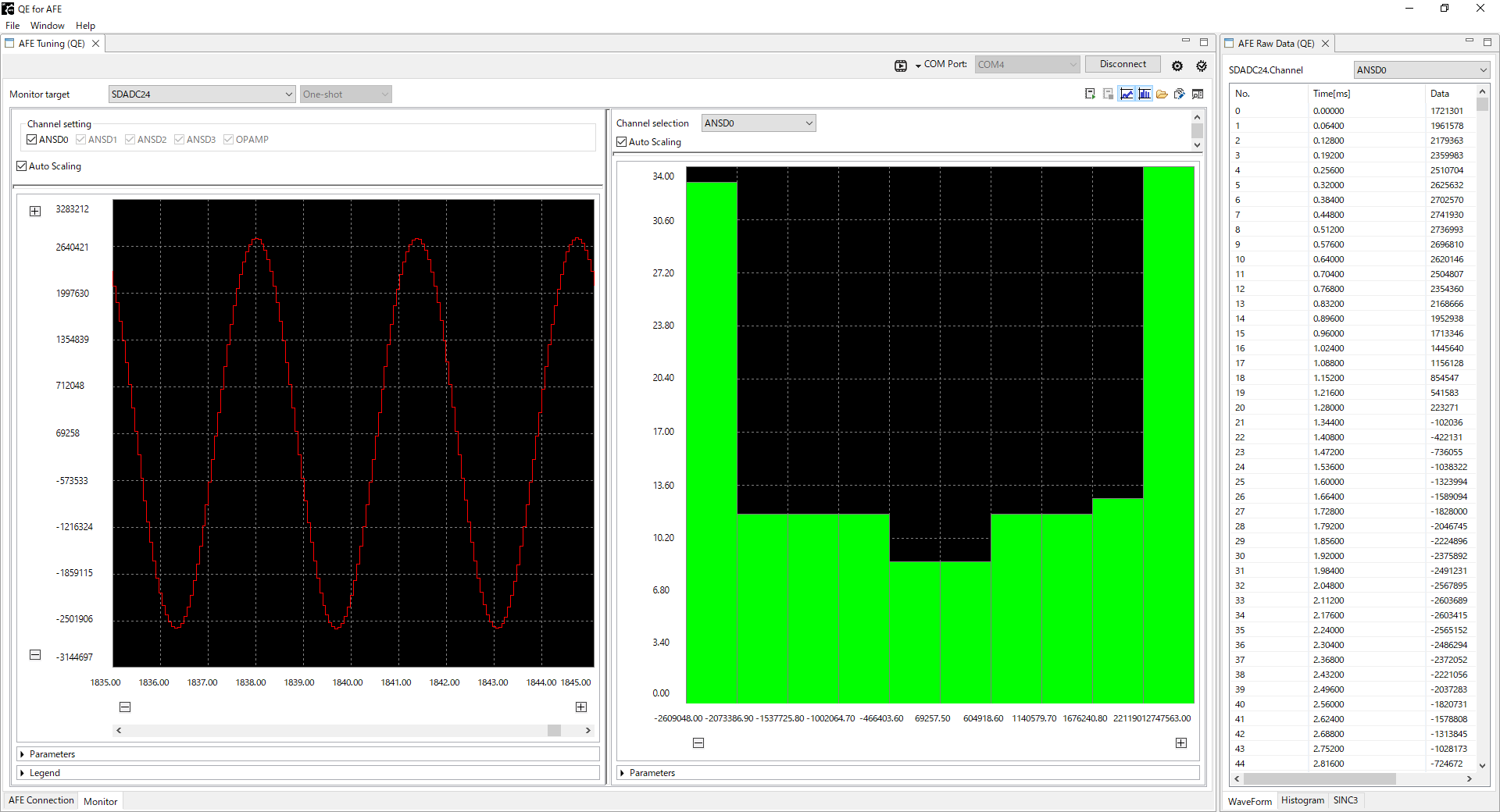

Functionality to display the AD conversion result (time waveform and histogram)
You can display a waveform and histogram and perform analysis for the acquired A/D conversion result.
图像

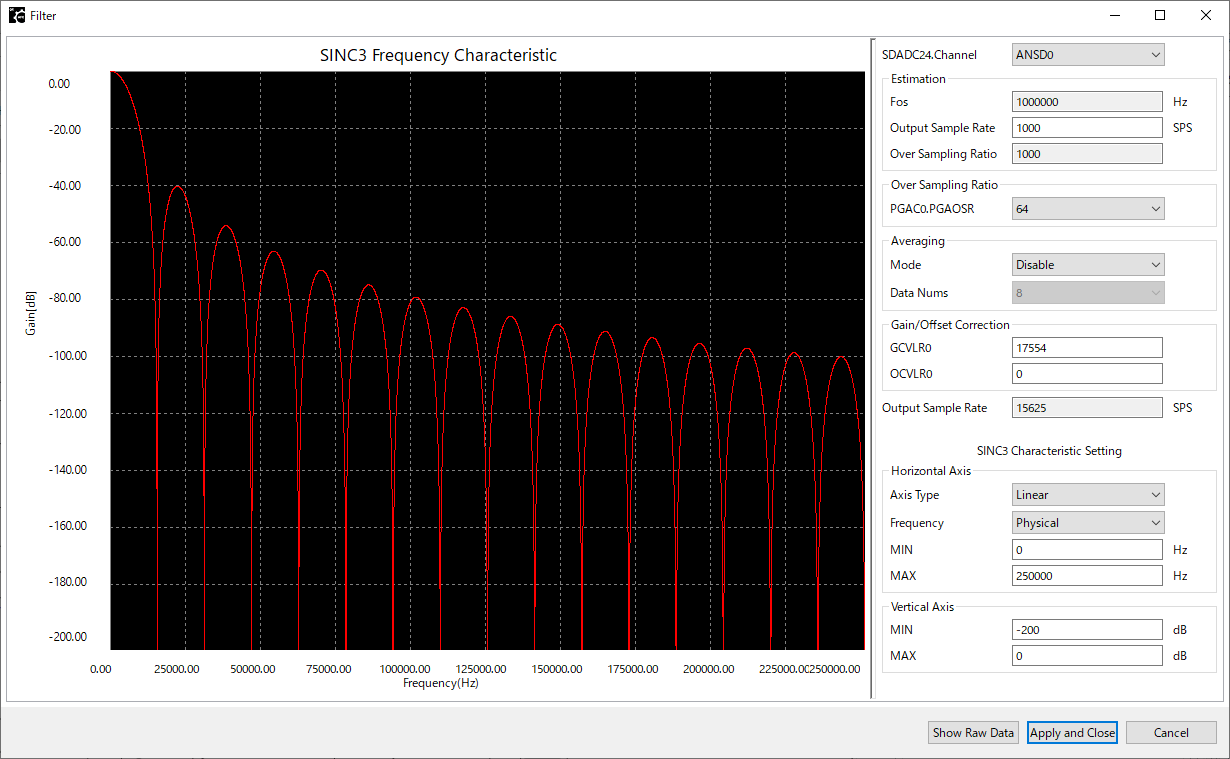

Functionality to display frequency characteristics for digital filters
Displays the frequency-gain characteristics curve for the SINC3 filter based on register configuration values.
图像
