RL78/G24 DC/DC LED 控制评估板
RL78/G24 DC/DC LED 控制评估板可以使用 RL78/G24 来评估 DC/DC 转换器控制和各种通信标准，而该 RL78/G24 在 RL78 系列微控制器中具有最高的处理性能，还有已增强的电源控制模拟功能。
该板支持 PMBus/SMBus、DALI-2、DMX512 和红外通信协议。 使用 RL78/G23...
概览
描述
Topics
[Upgrade to Revision] Solution Toolkit QE for Lighting & Power V1.1.0: Development Assistance Tool for Lighting System
(PDF | English, 日本語)
・Support power control function
QE for Lighting is a development assistance tool for lighting systems.
This product is available free of charge.
特性
- DALI-2 Control Gear support, and GUI configuration of lighting control (DALI) parameters
- Automatic generation of software for lighting control (DALI)
- Guidance display to help develop lighting systems
- Learn More
发布信息
| Product Name | Latest Ver. | Released | Taget Device (Note1) | Details | Download | Operating Environment |
|---|---|---|---|---|---|---|
| QE for Lighting & Power | V1.1.0 | Jan 20, 2025 | RL78 Family | See Release Note | Download | Operating Environment |
Notes
- For detailed support devices, refer to Target Devices
目标设备
文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 工具新闻 - 发布公告 | PDF 356 KB 日本語 | |
| 发行说明 | PDF 1.08 MB 日本語 | |
| 传单 | PDF 1012 KB English , 日本語 | |
| 工具新闻 - 发布公告 | PDF 270 KB 日本語 | |
| 发行说明 | PDF 299 KB 日本語 | |
5 items
|
||
设计和开发
相关评估板和套件
探索
视频和培训

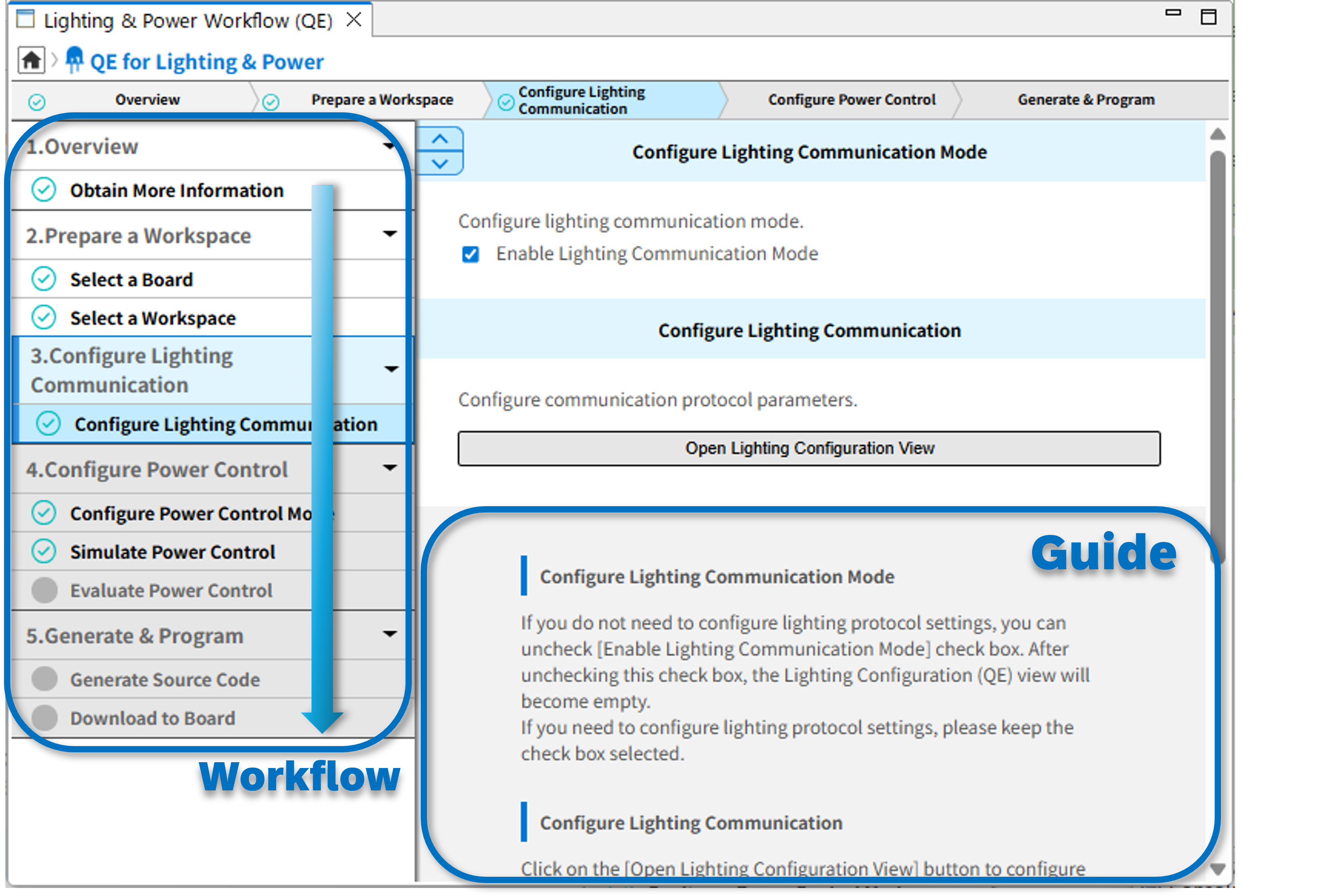

QE for Lighting & Power 工具快速入门指南
该视频中展示了智能照明系统的基本功能，以及QE工具如何助力您的智能照明系统开发。
章节标题
00:00 介绍
00:25 介绍智能照明系统
01:20 QE for Lighting & Power工具的背景
01:50 QE for Lighting & Power工具的4个操作步骤
02:19 创建新项目
02:35 配置调光协议和电源控制功能的参数
02:52 模拟仿真和实时评估电源控制参数
03:21 生成照明系统解决方案
03:37 QE for Lighting & Power工具的价值
相关资源
Video List
新闻和博客
| 向物联网演进:DALI照明系统的智能化 | 博客 | 2023年12月18日 |
Additional Details
Features
Quickly develop software for use with DALI control gear
QE for Lighting is easy to use. Just follow the workflow to create a sample project, make DALI settings, and generate source code, all through a simple GUI. After having compiled the source code, write your program to the evaluation board.
图像

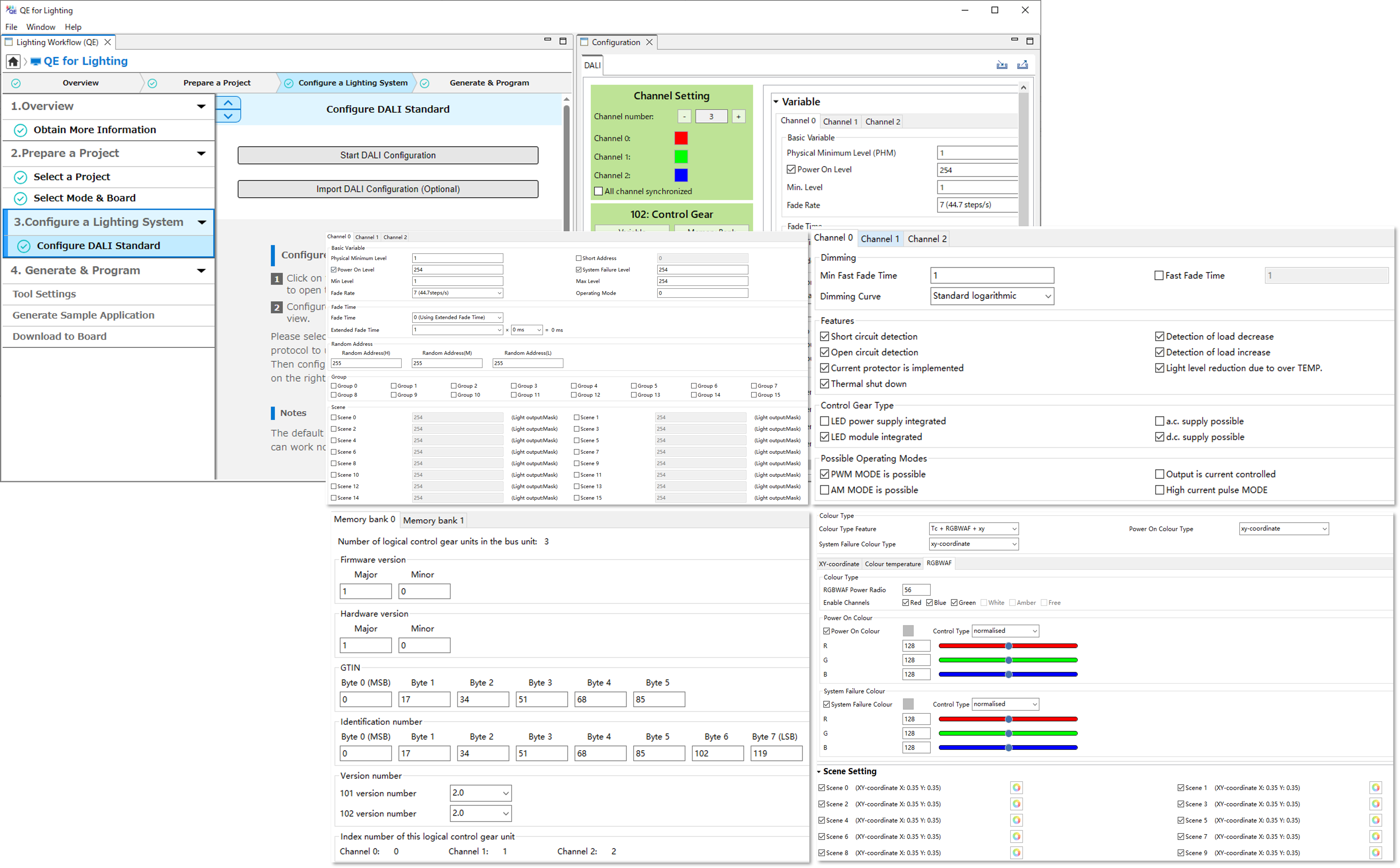

Use the simple GUI to configure parameters for DALI-based lighting control
You can select the individual parameters and enter their values.
If a value is incorrect, QE for Lighting will show an error message.
图像

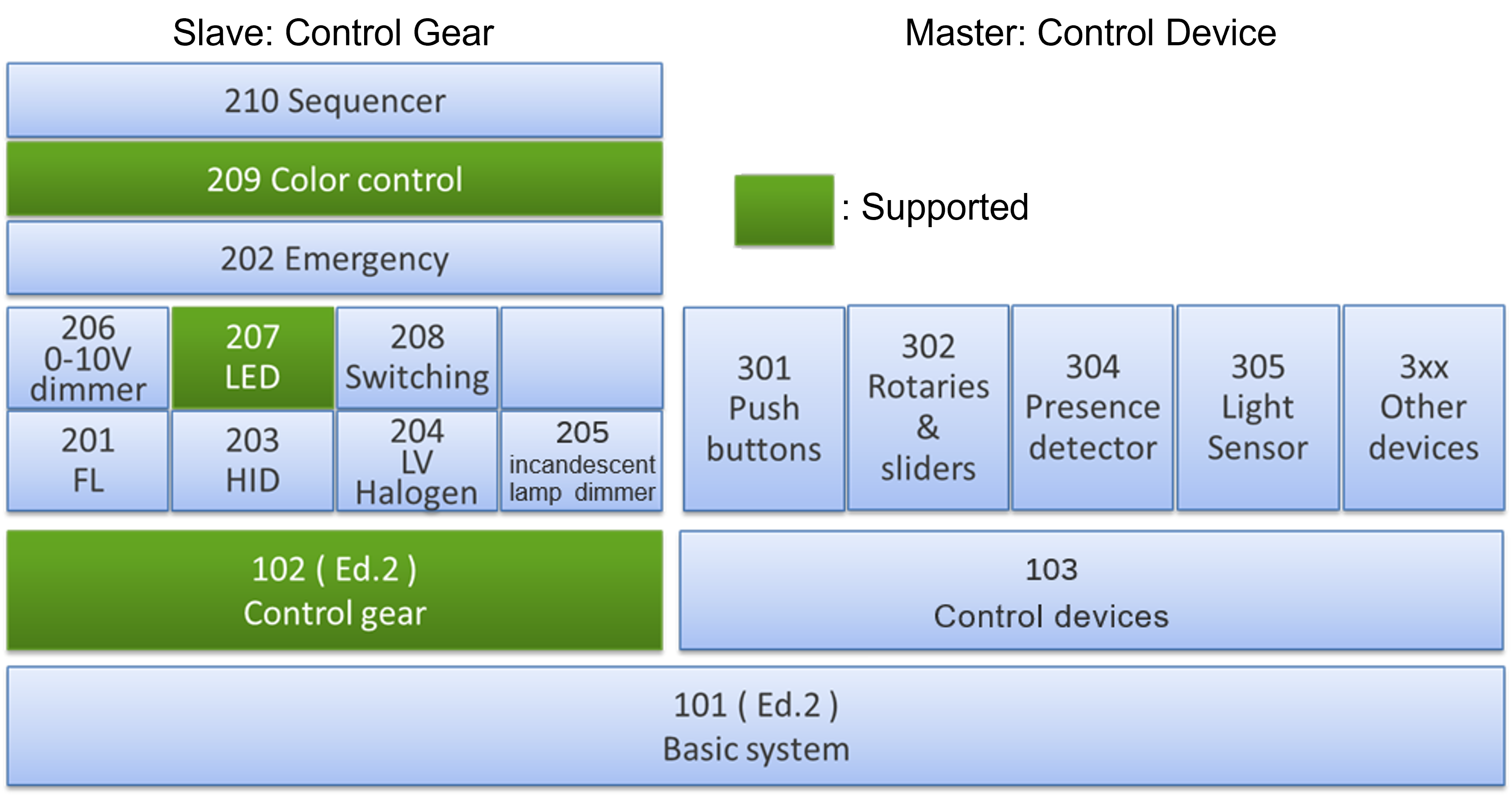

QE for Lighting supports the following items.
・DALI control gear libraries (compliant with IEC 62386-102)
・Particular requirements of IEC 62386-207 edition 1.0 (LED modules) for LED lighting
・Particular requirements of IEC 62386-209 edition 1.0 (color control) for production lighting
・Multiple types of LED dimming control (by the CPU or FAA)
・Combining different protocols for generating various sample applications
IEC 62386-102 + IEC 62386-207
IEC 62386-102 + IEC 62386-207 + IEC 62386-209
图像

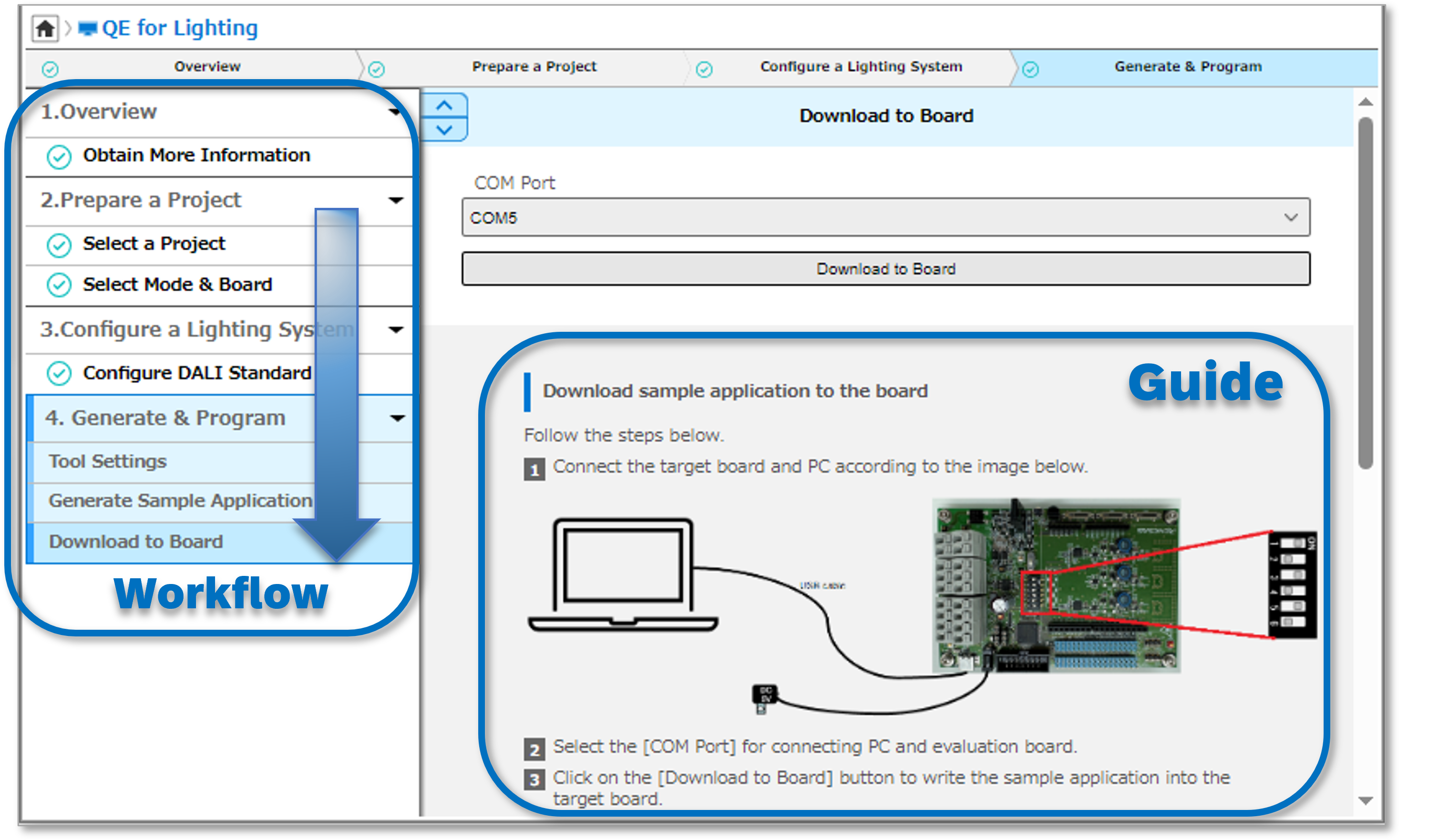

Simply click on GUI buttons for generating source code and writing to the evaluation board
・Click on GUI buttons to generate source code and compile it.
QE for Lighting supports the following compilers:
Renesas CC-RL
IAR
・Click on a GUI button to make the Renesas Flash Programmer write the program to the evaluation board.
Connect your evaluation board to the PC according to the instructions provided by QE for Lighting. You will immediately be able to run your program on the evaluation board.
