RZ/A3UL Software Package

软件包

RZ/A FSP Windows Platform InstallerRZ/A Getting Started with Flexible Software PackageRenesas RZ/A Flexible Software Package (FSP) Documentation (Web version - HTML)RZ/A3UL EVK Example Projects Bundle

概览

download Download Latest FSP (v3.4.0):

FSP Platform Installer (Includes e² studio IDE, toolchain, and FSP packs):

FSP Standalone Installer (FSP packs for the users who only update the FSP and no e² studio update):

  • Download from the Assets section of the GitHub

The installation instructions can be found here. All the FSP Releases and Patches can be found on GitHub.

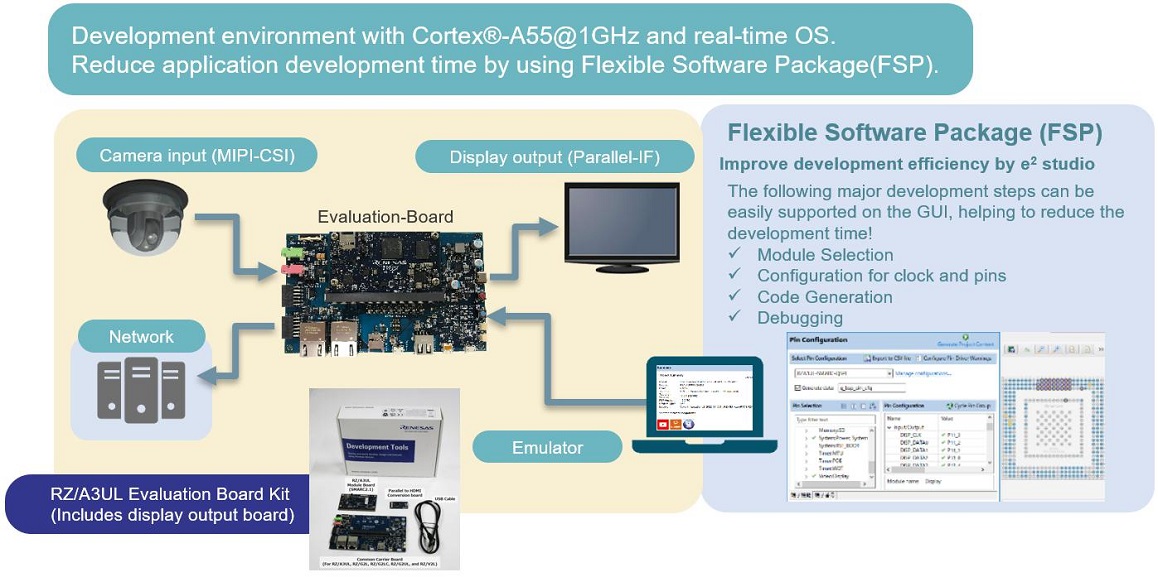

RZA3LU Software Package
ファイルアイコン

SW Package

Software Package

ツールアイコン

Evaluation Board

Evaluation-Board Kit

icon_config

Development Environment

e2 studio, GCC

icon_config

GUI Development Tool

Guiliani EvalKits

The RZ/A3UL software development kit is a software development kit that supports various functions of RZ/A3UL such as camera input and LCD output. It provides the Flexible Software Package and RZ/A3UL Evaluation Board Kit to help users quickly develop embedded systems with RZ/A3UL. Also supports users' HMI development by providing TES Electronics' GUI tool Guiliani.

 * RZ/A3UL Evaluation Board Kit needs to be purchased separately.

The Prepaid by Renesas Guiliani Lite License for Guiliani Evaluation Kits

You can obtain an additional Guiliani-Lite production license key from TES. This license is free of charge for Renesas RZ/A users. With this license, you are able to produce state-of-the-art HMI applications for production use. The Lite version of Guiliani is fully featured and only has small limitations on usable resources (number of images, dialogs, fonts, etc.) and hardware acceleration. To get the Prepaid by Renesas Guiliani-Lite license, please refer to TES Guiliani.

RZ/A3UL Evaluation Board Kit supports real-time OSs (FreeRTOS, Azure RTOS) and various libraries (SSL/TLS, OTA, MQTT, TCP/IP, etc.) for IoT devices provided by major cloud vendors such as Amazon Web Services (AWS) and Microsoft. Microsoft device certifications give you the confidence to start development immediately.
In addition, it is equipped with input/output interfaces such as HDMI, audio, Ethernet, USB, and CAN, and can realize high-level IoT systems.

  • By linking with the intuitive configurator of "e2 studio", which is a software-integrated development environment, and the code generation function, it is possible to proceed with real-time system development efficiently and quickly.
  • Support both RTOS applications and bare metal applications.
  • RZ/A Flexible Software Package V3.4.0 released (Feb. 28, 2025)
  • RZ/A Flexible Software Package V3.3.0 released (Dec. 20, 2024)
  • RZ/A Flexible Software Package V3.2.0 released (Sep. 30, 2024)
  • RZ/A Flexible Software Package V3.1.0 released (Jul. 31, 2024)
  • RZ/A Flexible Software Package V3.0.0 released (Apr. 26, 2024)
  • RZ/A Flexible Software Package V2.0.2 released (Feb. 29, 2024)
  • RZ/A Flexible Software Package V2.0.1 released (Sep. 29, 2023)
  • RZ/A Flexible Software Package V2.0.0 released (Jun. 30, 2023)
  • RZ/A Flexible Software Package V1.2.1 released (Apr. 14, 2023)
  • RZ/A Flexible Software Package V1.2.0 released (Dec. 28, 2022)
  • RZ/A Flexible Software Package V1.1.0 released (Sep. 30, 2022)
  • RZ/A Flexible Software Package V1.0.0 released (Jul. 28, 2022)

下载

精选
类型 文档标题 日期
软件和工具 - 软件
RZ/A FSP Windows Platform Installer
EXE 1,760.52 MB
软件和工具 - 软件
RZ/A FSP Packs
EXE 45.74 MB
2 items

文档

相关文档
类型 文档标题 日期
应用笔记
RZ/A Getting Started with Flexible Software Package
PDF 8.12 MB
手册 - 软件
Renesas RZ/A Flexible Software Package (FSP) Documentation (Web version - HTML)
应用笔记
RZ/A3UL EVK Example Projects Bundle
PDF 247 KB
相关文件：
应用笔记
RZ/A FSP Example Project Usage Guide
PDF 5.16 MB
发行说明
Release Note for RZ/A Initial Program Loader
PDF 205 KB
5 items

设计和开发

相关页面
TES Guiliani
'Prepaid by Renesas' TES Guiliani-Lite for RZ/A
 Solution Toolkit 瑞萨电子
1 item
RZ/A3UL Evaluation Board Kit

RZ/A3UL-EVKIT

Evaluation
了解更多

RZ/A3UL 评估板套件

此评估板套件特别适用于评估 RZ/A3UL。 RZ/A3UL 评估板套件由模块板 (SOM) 和扩展板组成。 SOM 符合 SMARC v2.1 标准。

有两种类型的评估板：QSPI版本和Octal SPI版本 每个版本包括带有J link lite和不带有J link lite的版本。请根据您的需要进行选择...

特色文件:
RZ/G2UL, RZ/A3UL, RZ/Five SMARC Module Board User's Manual: Hardware
RZ/A Getting Started with Flexible Software Package

视频和培训

RZ/A FSP Azure RTOS Project - Getting Started

This video introduces how to create an Azure RTOS project using the RZ/A Flexible Software Package. And, as an example of Azure RTOS settings, it introduces how to change the project configuration and control LED with button operations.

00:00 Opening
00:20 Board and software information
00:50 Create Azure RTOS project
04:58 Modify the project configuration

Related software and tools:

Video List
RZ/A FSP Azure RTOS Project - Getting Started
RZ/A Flexible Software Package - Getting Started
GuilianiSDK for RZA3UL Tutorial - How to run

Additional Details

Operating Environment

Integrated development environmente2 studio Integrated Development Environment, default toolchain is GCC Arm Embedded
Supported boardRZ/A3UL Evaluation Board Kit
EmulatorSEGGER (J-Link Series), KMC (PARTNER-Jet2)



Support Driver Software

CategoryFunctionV3.4.0
Available
OSFreeRTOS(*1)check
Azure RTOScheck
Memory I/FROMQSPI / OctaFlash™(*2)
Debugger SEGGER(*3) / KMC(*4)
DriverRZ/A Initial Program Loader (IPL)check
Board Support Package (BSP) for FSPcheck
General Timer (GTM)check
IRQ (External interrupt)check
DMACcheck
Image Scaling Unit (ISU)check
LCDCcheck
Camera Data Receiving Unit (CRU)check
SDHIcheck
USB 2.0 Host (HID) / (MSC)check
USB 2.0 Function (CDC)check
Ethernetcheck
I2C (master/slave)check
SCIFA (UART)check
Renesas Serial Peripheral Interface (RSPI)check
CAN FD Interface (RS-CANFD)check
General Purpose Input Output Port (GPIO)check
SSI (I2S) (master/slave)check
Watchdog Timer (WDT)check
A/D Convertercheck
MTU3acheck
SCIgcheck

(*1) : FreeRTOS™ is a trademark of Amazon Web Services, Inc.
(*2) : OctaFlash™ is a trademark of Macronix International Co, Ltd.
(*3) : https://www.segger.com/ (J-LINK)
(*4) : https://www.kmckk.co.jp/ (PARTNER-Jet2)
