Design-in 2D effects that almost like 3D with TES Guiliani
TES Guiliani on RZ/A is a cross platform C++ framework to develop visually appealing user interfaces. With TES Guiliani on RZ/A you can create stunning graphical user interfaces for embedded systems within minutes. TES Guiliani can be used with all RZ/A embedded MPUs and evaluated with the Display it! RZ solution kit. Even better, with the new 'Prepaid by Renesas' TES Guiliani-Lite program, no GUI framework licensing costs arise for Renesas RZ/A customers in production.
目标设备
Renesas RZ + TES Guiliani - A perfect solution for industrial HMI's
RZ/A embedded MPUs optimize your HMIs with
- world‘s largest embedded SRAM of 10MBs
- superfast QSPI interface
- integrated display control
- powerful graphics acceleration
TES Guiliani is a high-end HMI framework with
- comfort of a PC based HMI editor and tool chain
- benefits of a highly-optimized software framework
- perfect fit for embedded hardware
- 2D technology and quasi 3D user experience

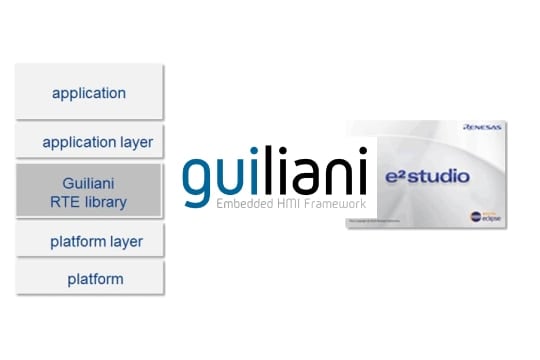

TES Guiliani-Lite software environment
The combination of Renesas RZ/A embedded MPUs and TES Guiliani GUI framework extend the 'smart phone lifestyle' to a wide range of industrial products. The 'Prepaid by Renesas' Guiliani-Lite package comes with a set of software components, which include the RZ/A platform components (MPU, IDE, OS), the Guiliani components (Runtime library) and an example application in source code.
| Component | Component spec. | Version |
|---|---|---|
| Guiliani | Library for platform | V2.2, 2.3, 2.4 and 2.5 |
| Guiliani | Library for Windows | V2.2, 2.3, 2.4 and 2.5 |
| Guiliani | Streaming Editor (GSE) for Windows | |
| Guiliani-Lite | Product-License Key | |
| OS | FreeRTOS | V8.2.3 or higher |
| Compiler | gcc GNUARM-none | V15.0.1 or higher |
| GNU ARM Embedded | 10.3-2021.10 - AArch64 bare-metal target or higher | |
| IDE | e2studio | V4.2.0 or higher |
| MPU | RZ/A | RZ/A1LC, RZ/A1L, RZ/A1LU, RZ/A1M, RZ/A1H, RZ/A2M, RZ/A3UL |
Bring a smartphone experience to your industrial equipment quickly and without licensing cost!

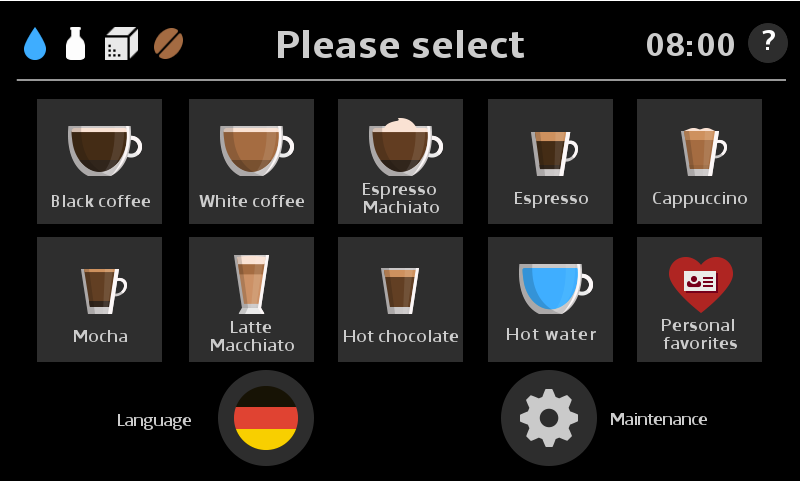

This is what your HMI could look like tomorrow!

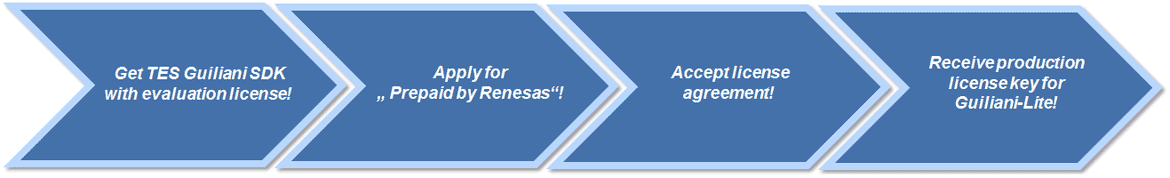

No royalties and no licensing fees through 'Prepaid by Renesas!'
