CAT-5 模拟延迟线 - 偏斜补偿

瑞萨电子的产品包括可在三个高速信号间提供偏斜补偿的三路模拟视频延迟线路，特别适用于补偿因每对 CAT-5 电缆电气长度差异而造成的偏斜。

产品选型表

Processing table

	Channels (#)	Bandwidth (MHz)	Slew Rate (V/µs)	Delay Increment (ns)	Delay (Max) (ns)	Gain Min	IOUT (A)	IBIAS (nA)	PSRR (db)	VS (Min) (V)	VS (Max) (V)	IS (per amp) (mA)	Qualification Level	Lead Count (#)	Pkg. Type
(1) 推荐产品 (0) 衍生产品	最大值 Number of channels. 最小值 Number of channels.	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值 IBIAS in nA 最小值 IBIAS in nA	最大值最小值	最大值最小值	最大值最小值	最大值最小值	Standard	最大值最小值	QFN
器件号													Logical Operator		Logical Operator

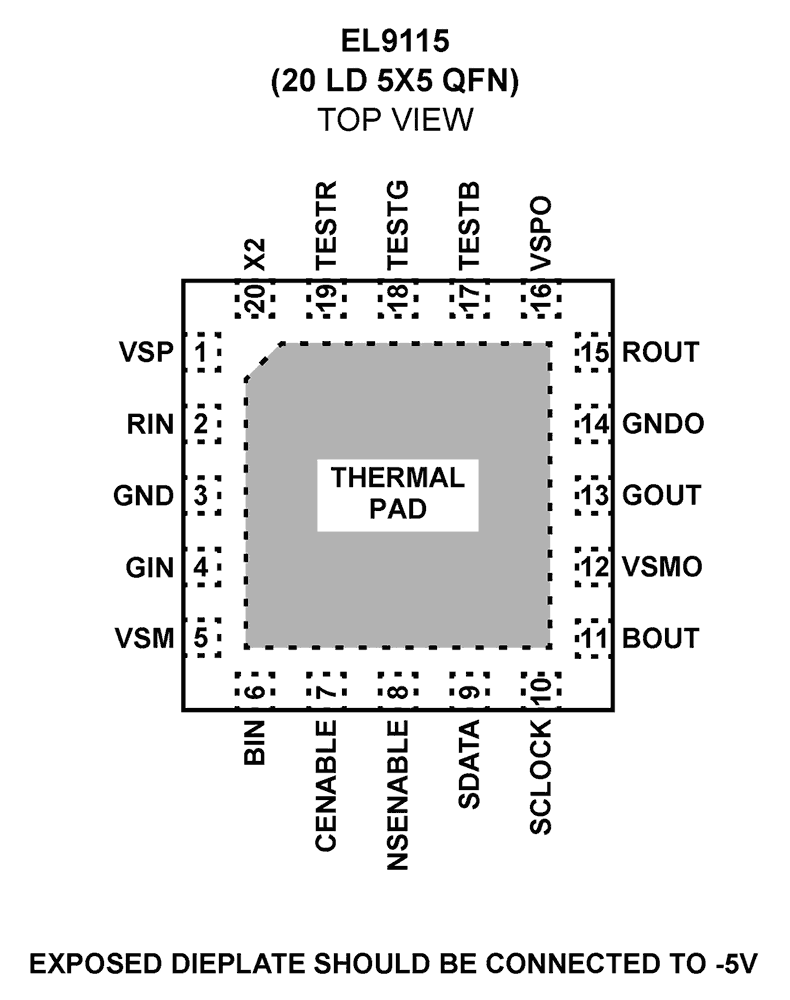

EL9115 PDF Triple Analog Video Delay Line	3	122	400	2	70	2	0.03	1000	-38	±4.5 V	±5.5 V	29	Standard	20	QFN
