Renesas achieves on-resistance specs among the lowest in the world through the use of ultra-fine technology, such as our 0.25um ANL3 process employing the latest trench technology, and package technology utilizing a new multi-bonding mount technology.

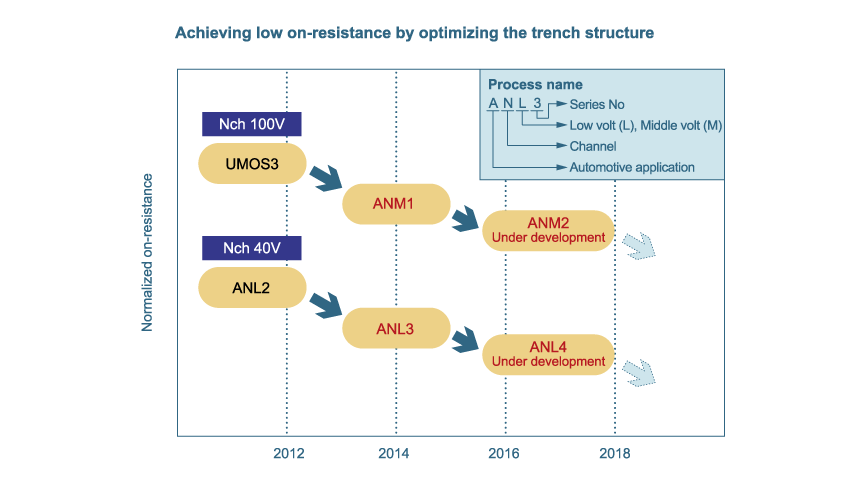

Process Trend of Low-Voltage Power MOSFETs for Automotive Applications

Since automotive power MOSFETs perform large-current drive control in high-temperature environments, low on-resistance is a key performance factor. In recent years, as PWM support and compatibility with a wider range of power supplies become more important, attention has also begun to focus on switching performance. Renesas Electronics is continuously working to develop new high-performance fabrication processes to deliver ultra-low on-resistance and low gate capacitance in response to these technical trends. In addition, many years of experience enable us to design products with high breakdown tolerance and high reliability that customers can have confidence in.

automotive_01

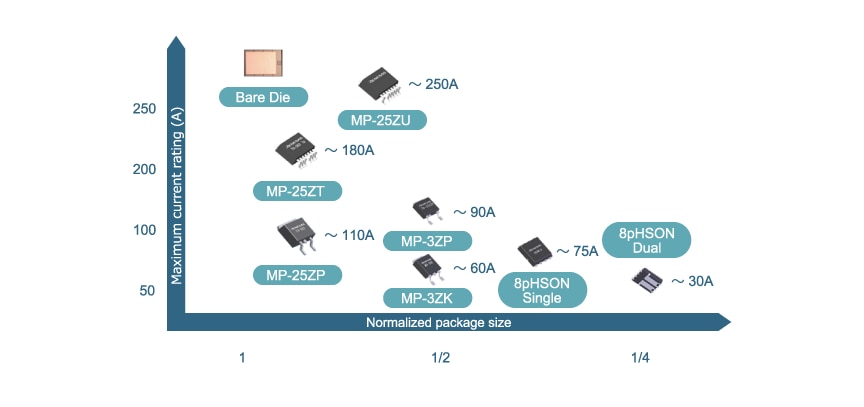

Automotive Power Device Package Evolution

Renesas Electronics supplies power MOSFET products for automotive electrical systems in a wide variety of packages to accommodate implementations ranging from large-current applications such as electric power steering to medium-current applications such as engine control. Multi-wire bonding is used to provide large-current capabilities for applications such as electric power steering. For medium-current applications such as engine control, new packages such as the 8-pin HSON provide smaller size and reduced mounting area.

automotive_02

汽车产品

产品选型表

    Processing table
    器件号
    Nch/Pch
    Channels (#)
    Pkg. Type
    Standard Pkg. Type
    VDSS (Max) (V)
    ID (A)
    RDS (ON) (Max) @10V or 8V (mohm)
    RDS (ON) (Max) @ 4V or 4.5V or 5V (m ohm)
    Pch (W)
    VGSS
    Vgs (off) (Max) (V)
    RDS (ON) (Typical) @ 10V / 8V (mohm)
    Ciss (Typical) (pF)
    QG (nC) typ (nC)
    Mounting Type
    Series Name
    NP100N04PUK
    Nch Single Power MOSFET 40V 100A 2.3mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 40 100 2.3 176 20 4 1.9 4700 80 Surface Mount NP Series
    NP100N055PUK
    Nch Single Power MOSFET 55V 100A 3.25mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 55 100 3.25 176 20 4 2.7 4900 80 Surface Mount NP Series
    NP100P04PDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZP TO-263 / D2PAK -40 -100 3.5 5.1 200 20 -2.5 2.8 15100 320 Surface Mount NP Series
    NP100P04PLG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZP TO-263 / D2PAK -40 -100 3.7 5.1 200 20 -2.5 2.8 15100 320 Surface Mount NP Series
    NP100P06PDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZP TO-263 / D2PAK -60 -100 6 7.8 200 20 -2.5 4.4 15000 300 Surface Mount NP Series
    NP100P06PLG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZP TO-263 / D2PAK -60 -100 6 7.8 200 20 -2.5 4.4 15000 300 Surface Mount NP Series
    NP109N04PUK
    Nch Single Power MOSFET 40V 110A 1.75mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 40 110 1.75 250 20 4 1.4 7200 126 Surface Mount NP Series
    NP109N055PUK
    Nch Single Power MOSFET 55V 110A 2.2mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 55 110 2.2 250 20 4 1.85 7500 126 Surface Mount NP Series
    NP110N04PUK
    Nch Single Power MOSFET 40V 110A 1.4mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 40 110 1.4 348 20 4 1.15 10500 198 Surface Mount NP Series
    NP110N055PUK
    Nch Single Power MOSFET 55V 110A 1.75mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 55 110 1.75 348 20 4 1.45 10700 196 Surface Mount NP Series
    NP15P04SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -15 40 60 30 20 -2.5 31 1100 23 Surface Mount NP Series
    NP15P06SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -15 70 95 30 20 -2.5 56 1100 23 Surface Mount NP Series
    NP160N055TUK
    Nch Single Power MOSFET 55V 160A 2.1mohm MP-25ZT/7pin TO-263 Automotive    		 Nch 1 MP-25ZT TO-263-7 / D2PAK-7 55 160 2.1 250 20 4 1.75 7500 126 Surface Mount NP Series
    NP16N06QLK
    60 V – 16 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 60 16 39 60 25 20 2.5 30 500 11 Surface Mount NP Series
    NP16N06YLL
    60 V – 16 A – N-channel Power MOS FET    		 Nch 1 HSON Power SON-8 5x6 60 16 35 55 27.3 20 2 31 400 12 Surface Mount NP Series
    NP179N04TUK
    40 V – 180 A – N-channel Power MOS FET    		 Nch 1 MP-25ZT TO-263-7 / D2PAK-7 40 180 1.25 288 20 4 1.05 8900 160 Surface Mount NP Series
    NP179N055TUK
    55 V – 180 A – N-channel Power MOS FET    		 Nch 1 MP-25ZT TO-263-7 / D2PAK-7 55 180 1.75 288 20 4 1.45 9300 160 Surface Mount NP Series
    NP180N04TUK
    Nch Single Power MOSFET 40V 180A 1.05mohm MP-25ZT/7pin TO-263 Automotive    		 Nch 1 MP-25ZT TO-263-7 / D2PAK-7 40 180 1.05 348 20 4 0.85 10500 198 Surface Mount NP Series
    NP180N055TUK
    Nch Single Power MOSFET 55V 180A 1.4mohm MP-25ZT/7pin TO-263 Automotive    		 Nch 1 MP-25ZT TO-263-7 / D2PAK-7 55 180 1.4 348 20 4 1.15 10700 196 Surface Mount NP Series
    NP20P04SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -20 25 38 38 20 -2.5 20 1650 34 Surface Mount NP Series
    NP20P06SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -20 48 64 38 20 -2.5 36 1650 34 Surface Mount NP Series
    NP20P06YLG
    Power MOSFETs for Automotive    		 Pch 1 HSON Power SON-8 5x6 -60 -20 47 70 57 20 -2.5 37 1605 34 Surface Mount NP Series
    NP23N06YDG
    Power MOSFETs for Automotive    		 Nch 1 HSON Power SON-8 5x6 60 23 27 60 20 2.5 22 1200 27 Surface Mount NP Series
    NP29N04QUK
    40 V – 30 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 40 30 10.1 44 20 4 8.5 1000 Surface Mount NP Series
    NP29N06QDK
    60 V – 30 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 60 30 20 30 44 20 2.5 13.8 1000 Surface Mount NP Series
    NP29N06QUK
    60 V – 30 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 60 30 21 44 20 4 16.2 1000 Surface Mount NP Series
    NP30N04QUK
    40 V – 30 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 40 30 8 59 20 4 6.5 1600 27 Surface Mount NP Series
    NP30N06QDK
    60 V – 30 A – Dual N-channel Power MOS FET    		 Nch 2 HSON Power SON-8 5x6 60 30 14 21 59 20 2.5 11.5 1500 Surface Mount NP Series
    NP33N06YDG
    Power MOSFETs for Automotive    		 Nch 1 HSON Power SON-8 5x6 60 33 14 97 20 2.5 11.2 2600 52 Surface Mount NP Series
    NP35N04YLG
    Power MOSFETs for Automotive    		 Nch 1 HSON Power SON-8 5x6 40 35 9.7 77 20 2.5 7.8 1900 34 Surface Mount NP Series
    NP35N04YUG
    Power MOSFETs for Automotive    		 Nch 1 HSON Power SON-8 5x6 40 35 10 77 20 4 7.9 1900 36 Surface Mount NP Series
    NP35N055YUK
    Nch Single Power MOSFET 55V 35A 6.7mohm HSON-8 Automotive    		 Nch 1 HSON Power SON-8 5x6 55 35 6.7 97 20 4 5.3 2240 38 Surface Mount NP Series
    NP36P04KDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZK TO-263 / D2PAK -40 -36 17 23.5 56 20 -2.5 12.8 2800 55 Surface Mount NP Series
    NP36P04SDG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -36 17 23.5 56 20 -2.5 12.5 2800 55 Surface Mount NP Series
    NP36P06KDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZK TO-263 / D2PAK -60 -36 29.5 37.5 56 20 -2.5 23.1 3100 54 Surface Mount NP Series
    NP36P06SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -36 30 40 56 20 -2.5 24 3200 52 Surface Mount NP Series
    NP45N06PUK
    Nch Single Power MOSFET 60V 45A 9.6mohm MP-25ZP/TO-263 Automotive    		 Nch 1 MP-25ZP TO-263 / D2PAK 60 45 9.6 75 20 4 7.8 1690 30 Surface Mount NP Series
    NP45N06VDK
    60 V – 45 A – N-channel Power MOS FET    		 Nch 1 MP-3ZP TO-252 / DPAK 60 45 11.6 19.6 75 20 2.5 9 1530 25 Surface Mount NP Series
    NP45N06VUK
    Nch Single Power MOSFET 60V 45A 9.6mohm MP-3ZP/TO-252 Automotive    		 Nch 1 MP-3ZP TO-252 / DPAK 60 45 9.6 75 20 4 7.8 1690 30 Surface Mount NP Series
    NP50N04YUK
    Nch Single Power MOSFET 40V 50A 4.8mohm HSON-8 Automotive    		 Nch 1 HSON Power SON-8 5x6 40 50 4.8 97 20 4 3.8 2100 38 Surface Mount NP Series
    NP50P03YDG
    Power MOSFETs for Automotive    		 Pch 1 HSON Power SON-8 5x6 -30 -50 8.4 102 20 -2.5 6.7 2300 64 Surface Mount NP Series
    NP50P04KDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZK TO-263 / D2PAK -40 -50 10 15 90 20 -2.5 7.9 5100 100 Surface Mount NP Series
    NP50P04SDG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -50 9.6 15 84 20 -2.5 7.7 5000 100 Surface Mount NP Series
    NP50P04SLG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -50 9.6 15 84 20 -2.5 8.2 3800 100 Surface Mount NP Series
    NP50P06KDG
    Power MOSFETs for Automotive    		 Pch 1 MP-25ZK TO-263 / D2PAK -60 -50 17 23 90 20 -2.5 13.5 5000 95 Surface Mount NP Series
    NP50P06SDG
    Power MOSFETs for Automotive    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -50 16.5 23 84 20 -2.5 13.2 5000 100 Surface Mount NP Series
    NP60N04PDK
    40 V – 60 A – N-channel Power MOS FET (Product Inquiry)    		 Nch 1 MP-25ZP TO-263 / D2PAK 40 60 3.95 8.8 105 20 2.5 3.3 2450 42 Surface Mount NP Series
    NP60N04VDK
    40 V – 60 A – N-channel Power MOS FET    		 Nch 1 MP-3ZP TO-252 / DPAK 40 60 3.85 8.6 105 20 2.5 3.2 2450 42 Surface Mount NP Series
    NP60N04VLK
    40 V – 60 A – N-channel Power MOS FET    		 Nch 1 MP-3ZP TO-252 / DPAK 40 60 3.9 8.6 105 20 2.5 3.2 2450 42 Surface Mount NP Series
    NP60N04VUK
    Nch Single Power MOSFET 40V 60A 3.85mohm MP-3ZP/TO-252 Automotive    		 Nch 1 MP-3ZP TO-252 / DPAK 40 60 3.85 105 20 4 3.2 2450 42 Surface Mount NP Series
