Renesas' power line communications (PLC) line drivers are commonly used in broadband HomePlug (IEEE 1901.1) and G.hn (ITU-T G.9960) applications, as well as narrowband PRIME and G3-PLS applications (CENELEC-A).

接口&连接

产品选型表

    Processing table
    器件号
    Bandwidth (MHz)
    Channels (#)
    Slew Rate (V/µs)
    VS (Min) (V)
    VS (Max) (V)
    IS (per amp) (mA)
    Noise VN (nV/√Hz)
    IBIAS (nA)
    Offset Voltage (Max) (mV)
    IOUT (A)
    IOUT @ RL
    VOUT (V)
    Rail-to-Rail Input
    Rail-to-Rail Output
    PSRR (db)
    Thermal Shutdown
    THD (dB)
    Enable
    Qualification Level
    Lead Count (#)
    Pkg. Type

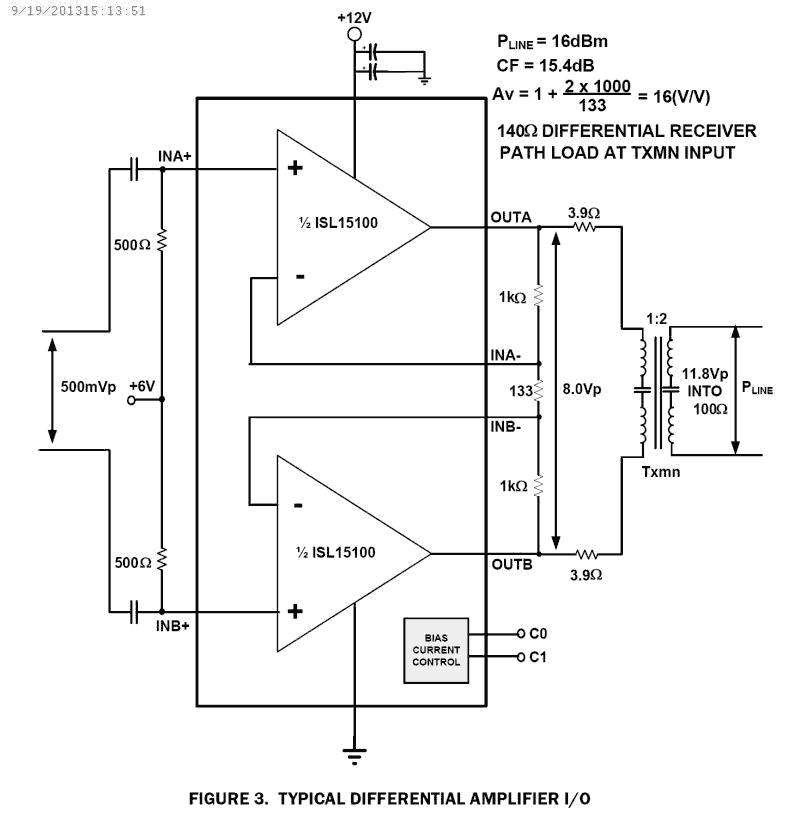

    ISL15100
    Single Port, PLC Differential Line Driver    		 180 1 1200 8 13.2 16 6 2000 85 0.75 0.16A @ 29Ω 9.2 No 否 是的 -51 Yes Standard 16 QFN
    ISL15102
    Single Port, PLC Differential Line Driver    		 90 1 900 8 28 21 8.5 3000 17 0.75 0.2A @ 50Ω 20 No 否 是的 -65 Yes Standard 24 QFN
    ISL15102A
    Single Port, PLC Differential Line Driver    		 90 1 900 8 28 21 8.5 3000 17 0.75 0.2A @ 50Ω 20 No 否 是的 -65 Yes Standard 24 QFN

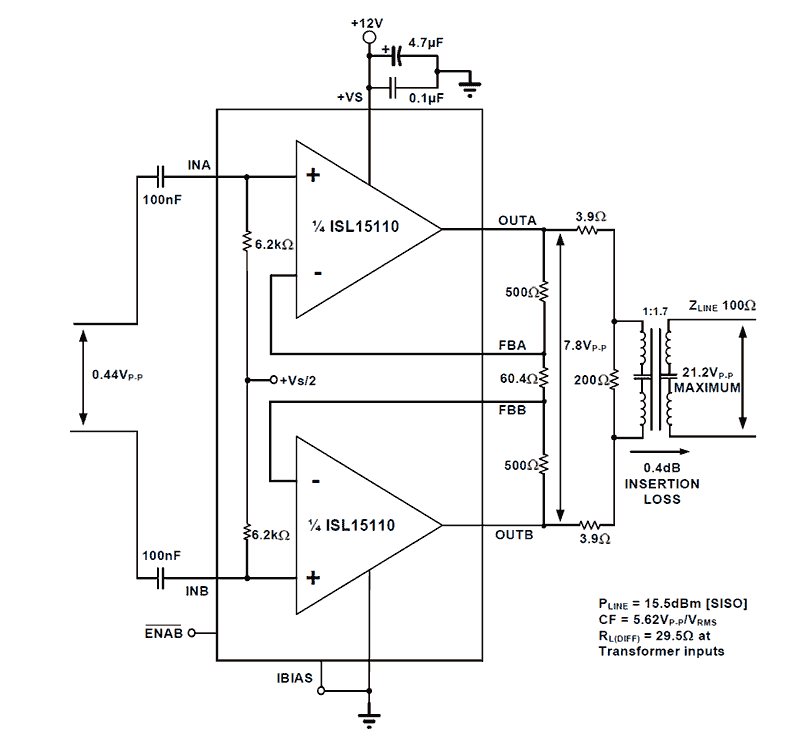

    ISL15110
    PLC MIMO Line Driver    		 120 2 1600 10.8 13.2 25 6 3000 6 2 0.29A @ 37.3Ω 10.8 No 否 90 是的 Yes Standard 20 QFN
    ISL1571
    Power Line Communication (PLC)    		 250 1 1200 4.5 13.2 15 6 7000 7.5 1 0.235A @ 20Ω 10 No 否 95 是的 -75 Yes Standard 16, 10 MSOP-EP, QFN
