Renesas offers Subscriber Line Interface (SLIC) and Ringing Subscriber Line Interface (RSLIC) devices for telecom interface applications.

接口&连接

产品选型表

    Processing table
    器件号
    Integrated Battery Switch
    Long. Balance (dB)
    Loop Current (Min) (mA)
    Qualification Level
    Simulation Model Available

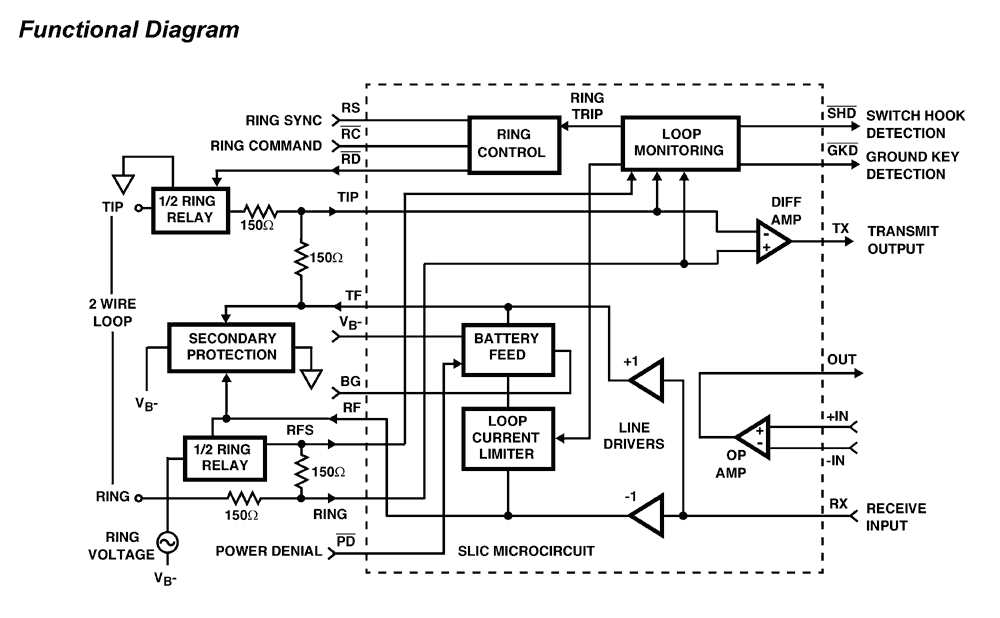

    HC5504B
    EIA/ITU PABX SLIC with 40mA Loop Feed    		 否 58 58 Standard

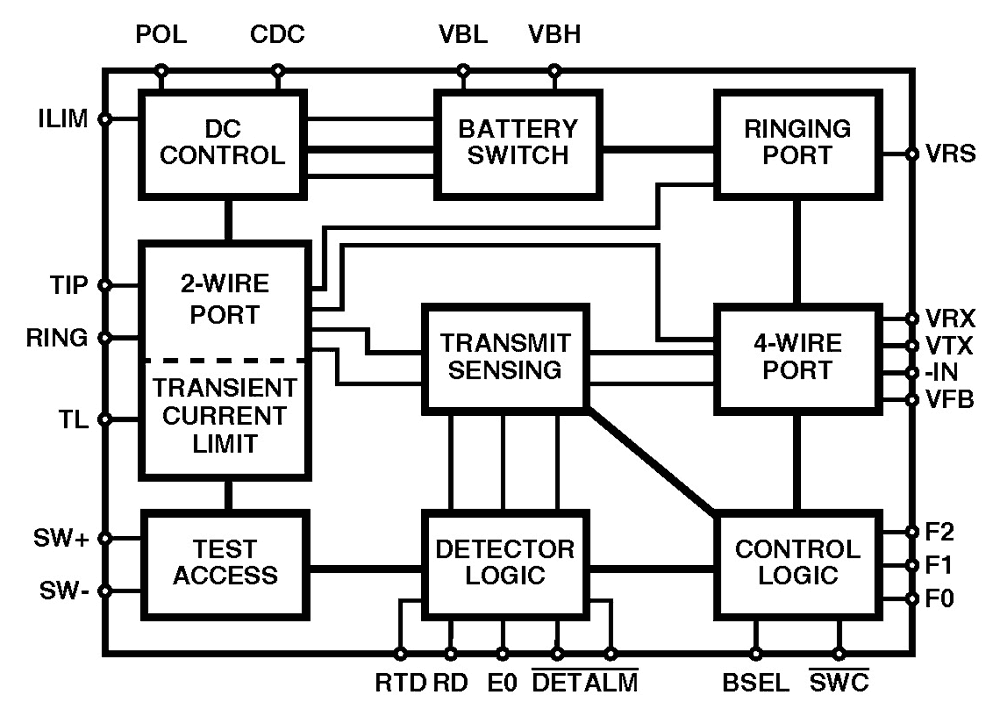

    HC55185
    VoIP Ringing SLIC    		 是的 58 58 Standard
    HC5549
    Low Power SLIC with Battery Switch    		 是的 53 53 Standard
